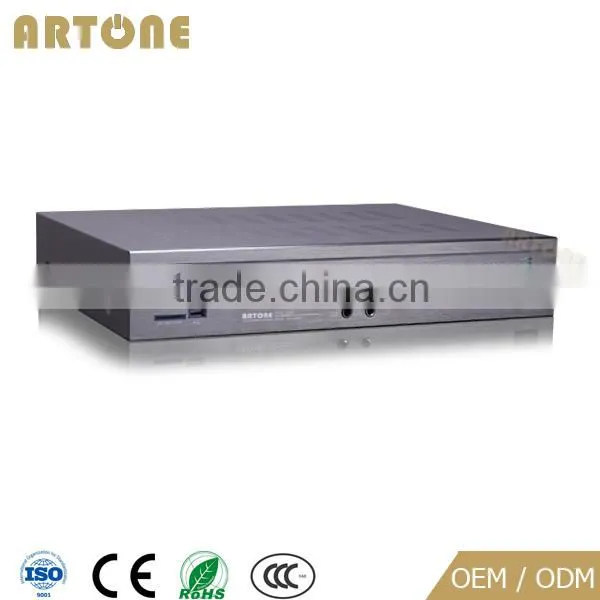

Help CenterPMS-3300 300W 3 Zone SD FM Mp3 Bluetooth USB Signal Microphone Audio Power Amplifier
Related Products
-
PMS-3300 300W 3 Zone pa Bluetooth in Wall AmplifierUS$ 109.9 - 128MOQ: 1 Piece -
PMS-3300 300W 3 Zone USB/SD/FM/mp3/bluetooth Stereo Amplifier for pa SystemUS$ 109.9 - 128MOQ: 1 Piece
-
PMS-3300 300W 3 Zone USB/SD/FM/mp3 Amplifier Bluetooth MicrophoneUS$ 109.9 - 128MOQ: 1 Piece
-
T-206 Mini Hifi Wireless Bluetooth Module 12v Mp3 Amplifier for Classroom Speaker SystemUS$ 1 - 699MOQ: 1 Piece
-
T-206 Hifi Bluetooth/mp3/usb/sd Card/fm Wireless Teachers Voice Amplifier for KindergardenUS$ 1 - 699MOQ: 1 Piece
Features
- Built-in USB,SD,FM tuner, Bluetooth and 2 external AUX inputs as audio sources, audio sources switchable from each other;
- Strong power RMS 300W, max power at 500W;
- 3 zone independent volume control;
- 4-16 ohm, 70V, 100V speaker output;
- Treble, bass, mic and master volume control
- High quality copper transformer ensures best sound performance;
- Reminder melody chime button;
- LED indicator, Shortcircuit, over heat, over load protection;
- Remote controller
Description
The 3 Zone Multisource Mixer USB Amplifier PMS-3300 is designed in slim and economic, have power rating at 300W. They are featured of 4 audio source inputs, two of which are aux inputs, one is MP3/FM input and one is bluetooth player. two microphone inputs on front panel allows paging during the background music is play to 3 zones.
Individual volume controls are provided for treble, bass and Mic, 3 zones and master volume control are provided for overall tone control. 70V, 100V and low impedance 4-16 ohms speaker outputs are provided. Extensive protection from short-circuit, overload and high temperature.
Application and Use Places
ARTONE 3 Zone Multisource Mixer Amplifier PMS-3300 is ideal to use in commercial places like shops, stores, classroom, workshop, offices, church, conference, wine bar, restaurants or any room which is less than 800 square meter, sufficient use for background music and give speech.
The PMS-3300 has as many as 4 audio source inputs, MP3 (USB or SD card), FM Tuner, Bluetooth and 2 AUX inputs to select from, plug and play, easy and quick to set up a 3 zone pa system for your places, fulfill the space with music and announcement.
Specification
Model No. |
PMS-3300 |
Power |
300W |
Speaker Outputs |
4-16Ω, 70V, 100V |
Input Sensitivity |
Mic: 5mV/600Ω unbalanced 6.3mm phone jack input | AUX:350mV/10KΩ RCA input |
Output Sensitivity & Impedance |
1000mV/470Ω, Unbalanced RCA output |
Frequency Response |
30-20KHz |
S/N Ratio |
Mic: 66 dB | AUX: 80 dB |
THD |
< 1% at 1KHz, 1/3 rated power |
Audio Source |
MP3 (USB/SD), Tuner, Bluetooth, AUX input x 2 |
Protection |
High temperature, overload & short circuit |
Power Supply |
220V~240V 50/60Hz or 110V |
Material & Finish |
Aluminum front panel, metal case |
Dimension |
485 x 380 x 80 mm |
Weight |
12 kg |
First Packing: Plastic Bag (to prevent it from scratch);
Second Packing: Foam Packing (Anti Vibration or serious shock in transportation)
Third Packing: Carton Box (For easier delivery and selling)
