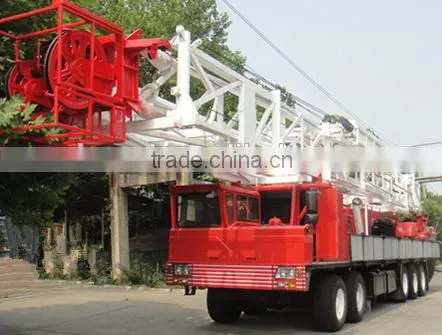

60T Workover Rig

Name: 60T Workover Rig
Brand: SINOTAI
SKU: 119579663
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Rotary Drilling Rig

Power Type:

Diesel

Sinotai Petroleum Equipment Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Rotary Drilling Rig

Power Type Diesel

Place of Origin Shandong, China

Brand Name SINOTAI

Model Number XJ350

Dimension(L*W*H) 54.8*10*13.5(ft)

Weight 93000lbs

Certification API

Warranty 18 months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

350HP Workover Rig
1.Convenient for installation, operation and maintenance
2.Double drum drawworks
3.Rotary driving system

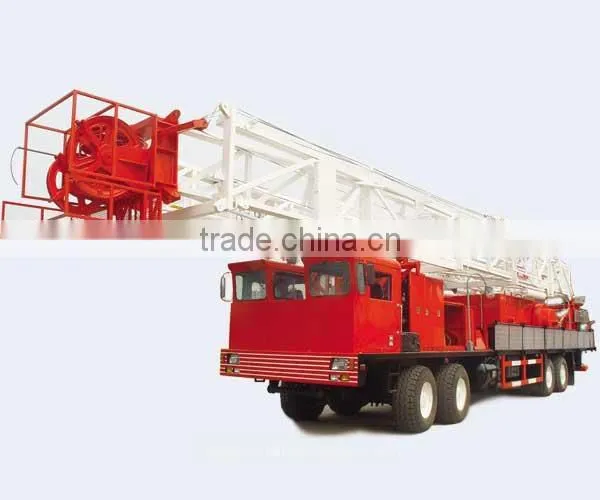

60T Workover Rig

Product Features:

1.XJ350 workover rig is mainly used for shallow well workover, oil testing, fishing and pump check operations.

2.It is equipped with a lifting system and a rotary operating system.

3.It can be used for workover, lateral drilling and water well drilling operation if equipped with a rotary table and relevant parts.

Main Parameters of Workover Rig

MODEL	XJ350(60t)
Nominal service depth(ft)(27/8″EUE tubing)	13000
Nominal workover depth (ft)(27/8″DP)	10500
Max. hook load (lbf)	202320
Rated hook load (lbf)	134880
Engine model	C9
Engine power (hp)	350
Transmission type	Hydraulic + mechanical
Traveling system	4×3
Effective height of mast (ft)	95,102
Drilling line diameter (in)	1
Hook speed (ft/s)	0.66~5.7
Approaching/departure angle	23°/16°
Min. ground clearance (in)	14
Max. gradient ability	30%
Min. turning diameter (ft)	92
Rotary table model	ZP90
Traveling block model	YG90
Swivel model	SL110
Overall moving dimension (ft)	54.8×10×13.5
Main unit mass (lb)	93000
