Home > Manufacturing & Processing Machinery > Petroleum Equipment & Machinery > Pumping Unit > CYJ Pumping Units

CYJ Pumping Units

Name: CYJ Pumping Units
Brand: SINOTAI
SKU: 119552097
Availability: InStock

Sinotai Petroleum Equipment Co., Ltd. Silver Verified Supplier

5Yrs

US$ 5,000 - 70,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

SINOTAI

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin new port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shandong, China

Brand Name SINOTAI

Model Number CYJ

Voltage 220V

Certification API 11E, ISO9001

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Company Information

SINOTAI PETROLEUM EQUIPMENT CO., LTD

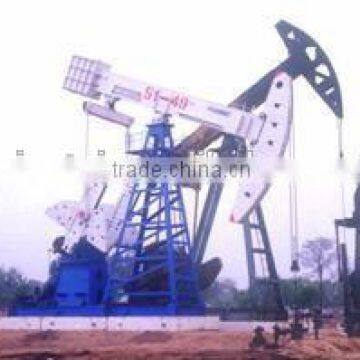

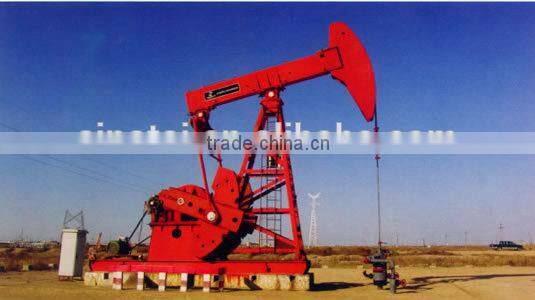

CYJ Pumping units

Brief Introduction

Conventional CYJ pumping units with walking beams are among the most common and most widely used power units in rod production on oil fields. Products comply with Specifications of Pumping Units (API Spec 11E), Pumping units with Walking Beams (SY/T5044) and other related standards, and have acquired the authorization to use Official API Monogram.
Technical Performance & Characteristics

1,Modular and virtual manufacturing technologies are adopted in design, so that the structure of products is optimized and components are highly standardized, generalized and seriated.

2,Key structural elements are subject to finite element analysis to ensure stable performance and high reliability.

3,Reducers are driven by double-arc symmetrical split or involute herringbone wheels that are properly sealed and distinguished with low noise, smooth operation, reliable and durable service.

4,The entire machine features simple operation and maintenance and extended service life.

Major Technical Parameters

Model	Rated rod load kN	Stroke m	Frequency of stroke rpm	Rated torque of positive speed gearboxes kN.m
CYJ3-1.5-9HB	30	1.5/1.2/0.9	6/9/12	9
CYJ4-1.5-9HB	40	1.5/1.2/0.9	6/9/12	9
CYJ5-2.5-13HB	50	1.8/1.5/1.2	6/9/12	13
CYJ6-2.5-18HB	50	2.5/2.0/1.5	6/9/12	18
CYJ6-2.5-26HB	60	2.5/2.0/1.5	6/9/12	26
CYJ8-3-37HB	80	3/2.5/2.0	6/9/12	37
CYJY10-3-53HF	100	3/2.5/2.1	6/9/12	53
CYJY10-4.2-53HF	100	4.2/3.5/2.8	5/6/8	53
CYJY12-4.8-73HF	120	4.8/3.6/2.5	4/6/8	73
CYJB12-4.8-53HB	120	4.8/3.9/3.0	4/6/8	53
CYJBG12-4.8-53HB	120	4.8/4.2/3.6/3.0	4/6/8	53
CYJBG14-4.8-53HB	140	4.8/4.5/4.2/3.9/3.6/3.3	4/5/6	53
CYJY14-4.8-73HF/A	140	4.8/3.9/3.1	4/6/8	73
CYJY14-4.8-73HF/B	140	4.8/3.9/3.1	4/5/6	73
CYJY14-4.8-73HF/C	140	4.8/3.9/3.1	4/6/8	73
CYJY16-5.4-89HF	160	5.4/4.5/3.6	4/5/6	89
CYJY16-5.4-89HF/B	160	5.4/4.5/3.6	4/5/6	89
CYJ6-2.5-26HY	60	2.5/2.0/1.5	5/6/7	26
CYJ8-3-37HY	80	3/2.4/1.8	4/5/6	37
CYJY10-3-37HY	100	3/2.4/1.8	4/5/6	37
