Specifications
professionally on testing carbon sulfur elementcarbon steel, low alloy
wide measuring range
stable results, long warranty.
Our company manufacturer high frequency infrared carbon and sulfur analyzer to guests all over the world. We have been working in this market for over 15 years.
Introductions:

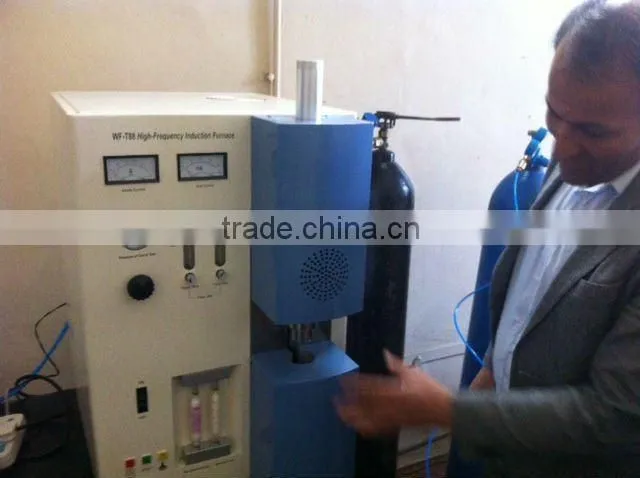

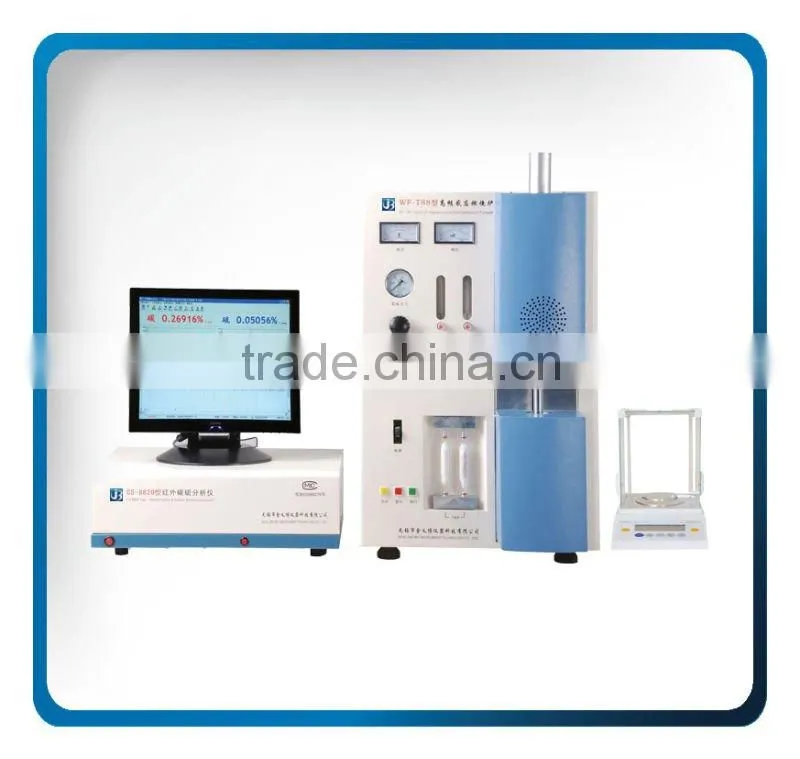

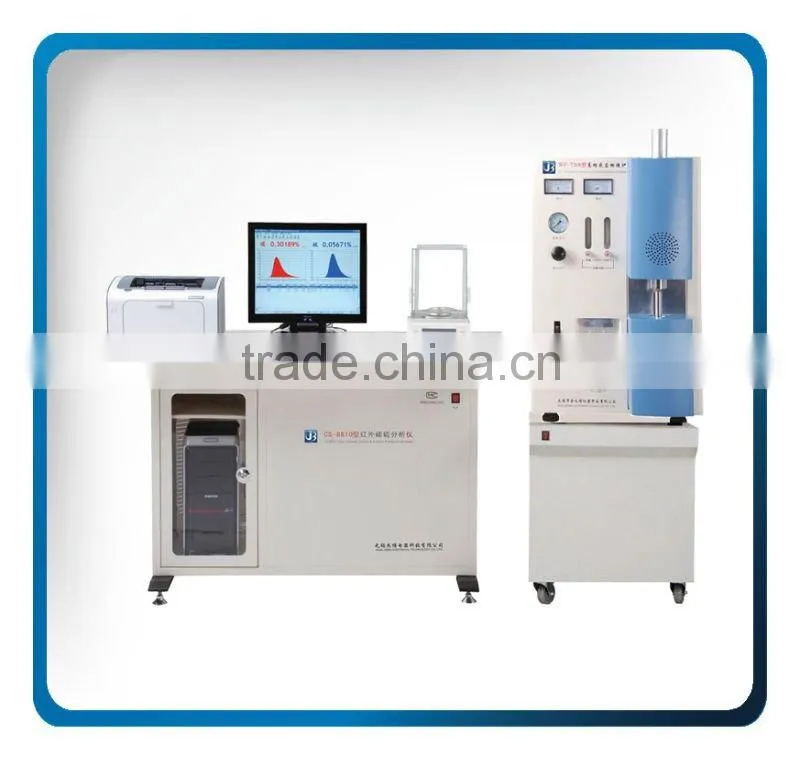

CS996 Type High-frequency Infrared Carbon & Sulfur Analyzer compatible applying with WF-L88 Type High frequency automatic inductive combustion furnace, can fleetly and exactly measure the carbon and sulfur in steel, iron, alloy, nonferrous metals, cement, ore and other materials. This equipment is a high-tech products integrate light, motor, electronic, computer and analysis technology, with features of wide measuring scope, strong anti interference, multiple function, easy to operate, accurate and reliable analysis result.
Main Parameter:
Measure Range:
Carbon: w(C) 0.0001%-10.0000% (can be extended to 99.999%)
Sulpher: w(C) 0.0001%-3.5000% (can be extended to 99.999%)
Sample weight:
standard 0.5g
Analysis Error:
Carbon: accord with ISO9556 standard
Sulfur: accord with ISO4935 standard
Analysis Precision:
Carbon: RSD<0.5%
Sulfur: RSD<1%
Analysis pool:
Carbon: low carbon pool and high carbon pool
Sulfur: if the customer request,the high sulfur pool could be added
Time of analysis:
25 to 60 seconds, could be adjusted. Around 35 seconds usually
Sensitivity(The minimum readings):
C/S: 0.1ppm
Electronic scale:
Precision of read: 0.0001g
Working Environment:
Room temp: 10 to 30 degree C,relative Humidity less than 75%
operational software
Operational software: |
Adopt Deliph software compiler,WINDOWS XP english operating software. |
Analysis channel: |
Providing channel management features, the carbon and sulfur channels are free to increase, delete and edit, no limit. Preset the interface of low-carbon and sulfur, Can realize the software automatically change |
Analysis function: |
Analysis of the dynamic data, sampling every 20 times, improving the analysis sensitivity and analysis accuracy, providing sample management features, it can edit the sample name and logo, also can increase and delete samples, the software provides a user management system, the administrator setting different user permissions. |

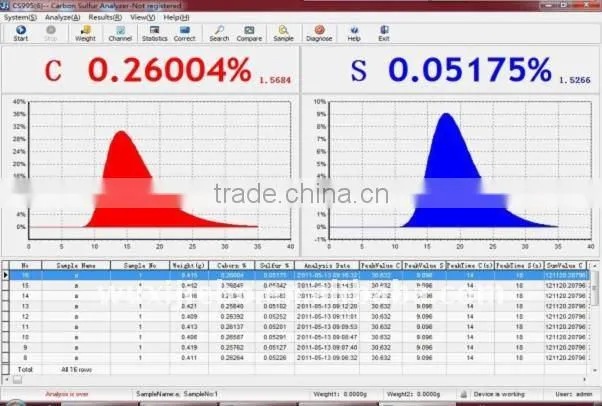

Display function: |
The Carbon sulfur has a curve respectively, |
Data processing function: |
Adopt ACCESS data pool store the analysis results, can store all data and curve; Query the analysis results optionally, query according to the time, sample name, logo and operator. Provide some function as data storage, blank deduction, setting parameter, choosing channel, statistics, and curve Compare etc. In the software can create the work curve of carbon and sulfur, realizing the curve fitting. |
Printing function: |
Print mode is diversification, Provide two print modes of laboratory and testing, also can design printing formats |
self-diagnose function: |
System diagnosis function,can test furnace head and the gas chamber sealing by the software. |
Plz feel free to contact us!
