Specifications
1. carbon sulfur analyzer2. LECO working princible
3. perfect training&installation

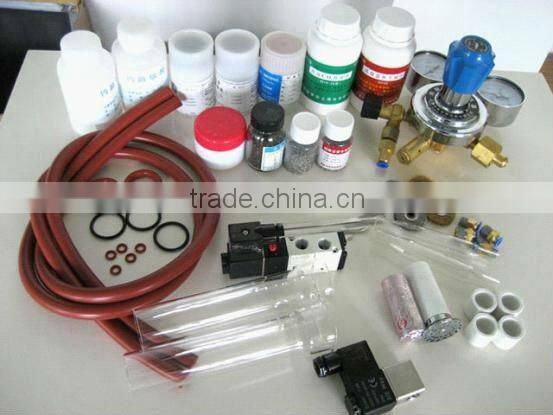

4. enough standard accessories
Our company manufacture CS995/996 steel carbon percentage testing machine to our clients overseas. We have been working in this market for over 10 years. Our company website: WWW(DOT)WXJIEBO(DOT)CC
Introductions:
CS995 Type High-frequency Infrared Carbon & Sulfur Analyzer compatible applying with WF-T88 Type High frequency automatic inductive combustion furnace, can fleetly and exactly measure the carbon and sulfur in steel, iron, alloy, nonferrous metals, cement, ore and other materials. This equipment is a high-tech products integrate light, motor, electronic, computer and analysis technology, with features of wide measuring scope, strong anti interference, multiple function, easy to operate, accurate and reliable analysis result.
Main Parameter:
Measure Range:
Carbon: w(C) 0.0005%-6.0000% (can be extended to 99.999%)
Sulpher: w(C) 0.0005%-0.5000% (can be extended to 99.999%)
Sample weight:
standard 0.5g
Analysis Error:
Carbon: accord with ISO9556 standard
Sulfur: accord with ISO4935 standard
Analysis Precision:
Carbon: RSD<1%
Sulfur: RSD<1.5%
Analysis pool
Carbon: one pool
Sulfur: one pool
Time of analysis:
25 to 60 seconds, could be adjusted. Around 35 seconds usually
Sensitivity(The minimum readings):
C/S 0.1ppm
Electronic scale:
Precision of read: 0.0001g
Working Environment:
Room temp: 10 to 30 degree C,relative Humidity less than 75%
High-frequency combustion system
Radio circuit: |
The design of high-duty radio circuit and the application of 2.2KVA HF pliotron.frequency : 20MHz<0} |
|
Military-purpose ceramic vacuum tubes and ceramic vacuum capacitors. |
|
HF control circuit: It is used for automatic detection of the electromagnetic valve, the elevation or descent of cylinder and the performance of HF unit. |
|
Automatic overtime/overflow alarming system enables the HF furnace to work under normal condition. |
|
The optional current/voltage/power regulator for furnace temperature control: It is applicable to samples of various materials. |
If you have any query or need any assisstance, plz contact us freely!
