Specifications
1.MIT is a new array-configured and digitalized imaging logging tool2.high quality,competitive price and delivery fast
3.Good
- Product Name:

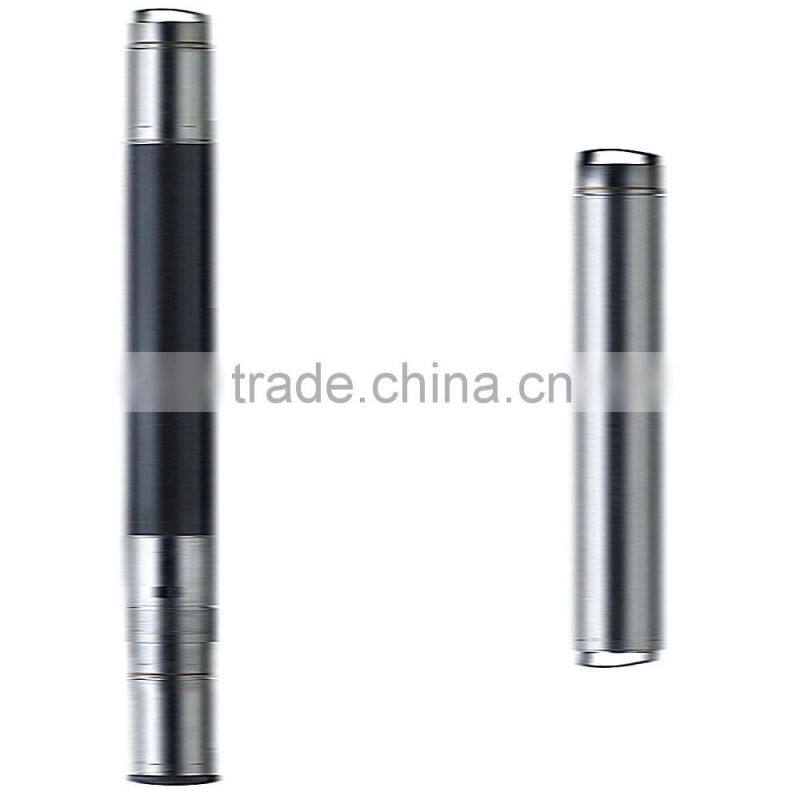

MIT/ Multi-Array Induction Tool
- Product Explanation:

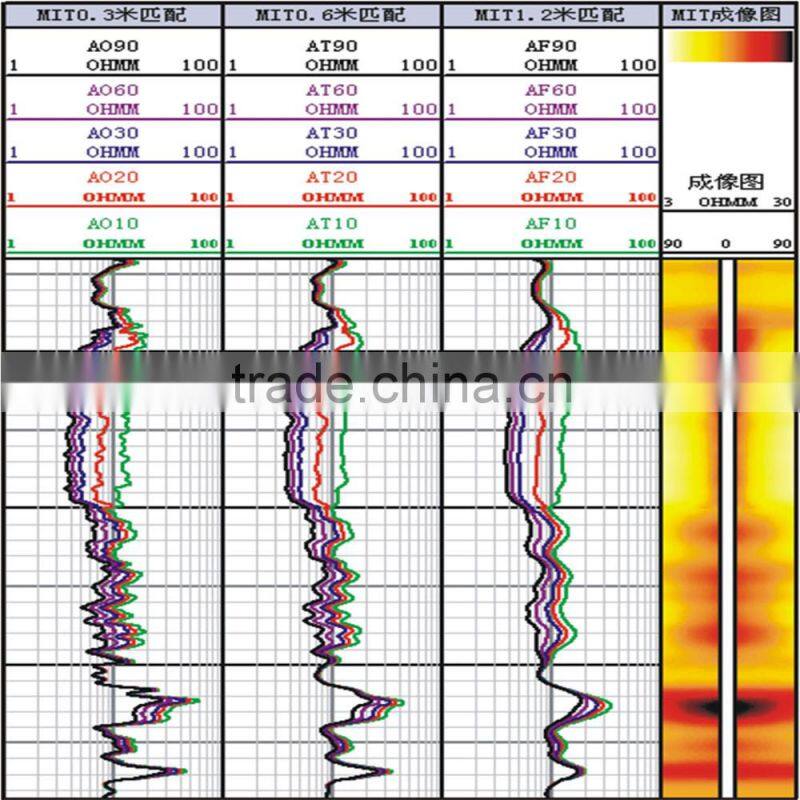

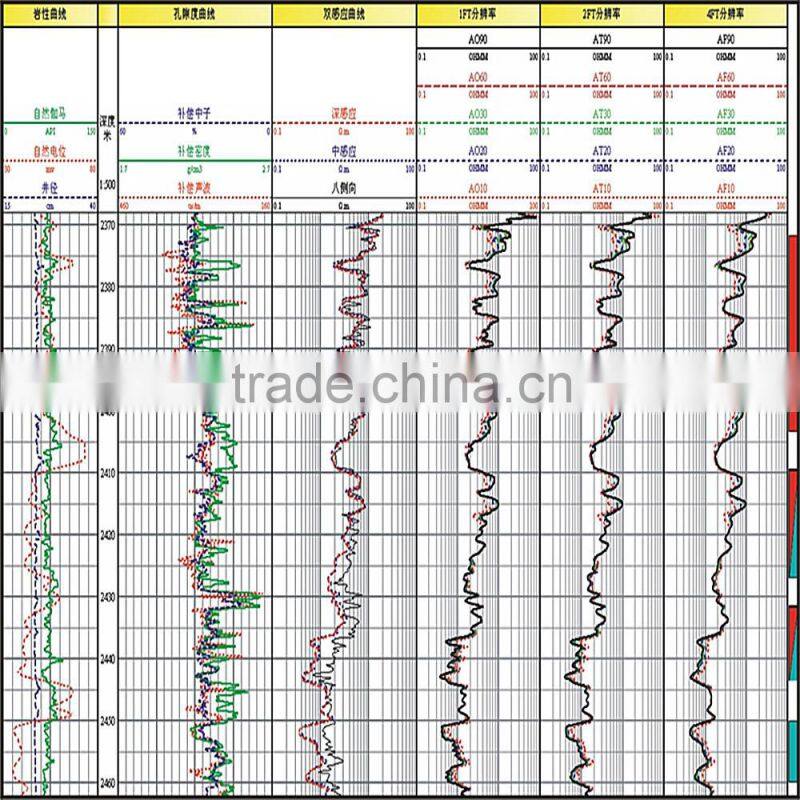

MIT is equipped eight group coil arrays, and performs real time acquisition of multiple frequencies. The tool measures 28 real and imaginary conductivity curves of original formation. Through digital synthetic focusing and software imaging, the tool provides 15 formation conductivity processing curves of 3 vertical resolutions (30, 60 and 120cm) and 5 radial detection depths (25, 50, 75, 150 and 225cm). The tool is mainly used to quantitatively describe bedding and invasion characteristics, to measure formation conductivity and to calculate the oil saturation of the formation.
-
Product Features:
MIT is a new array-configured and digitalized imaging logging tool. It adopts the multi groups of 3-coil array structures to log the resistivity of the resistive and reactive components of the formation. After the environment corrections and software focused-processing, formation conductivity curves with three vertical resolutions and five measuring depths are derived. Eventually, it provides a 2D visual profile indicating formation apparent resistivity, apparent formation water resistivity and formation oil saturation.
-
Product types and specifications:
Dimensions and RatingsMax Temperature:175℃Max Pressure:140MPaMax OD: 95mmMin Hole Diameter: 115mmLength: 9.86mMax Hole Diameter: 300mmWeight: 168kgBorehole ConditionsWellbore Fluid: Fresh water, OBMRecommended Max Logging Speed: 1000 m/hTool In-hole Position: CentralizedHardware FeaturesSource Type: Electromagnetic waveType of probe: CoilSensor spaces: 6in, 9in, 12in, 15in, 21in, 27in, 39in and 72inMeasurementsMeasuring Principle: Electro Magnetic inductionMeasuring Range:0.1~1000Ω•mVertical resolution: 30cm, 60cm, 120cmMeasuring Depth: 25cm, 50cm, 75cm, 150cm, 225cmAccuracy: ±0.75mS/m or <±2%Repeatability: ±2%Main Log: 28 raw conductivity curves and 15 resistivityAuxiliary Log: Temperature curve by coils -
