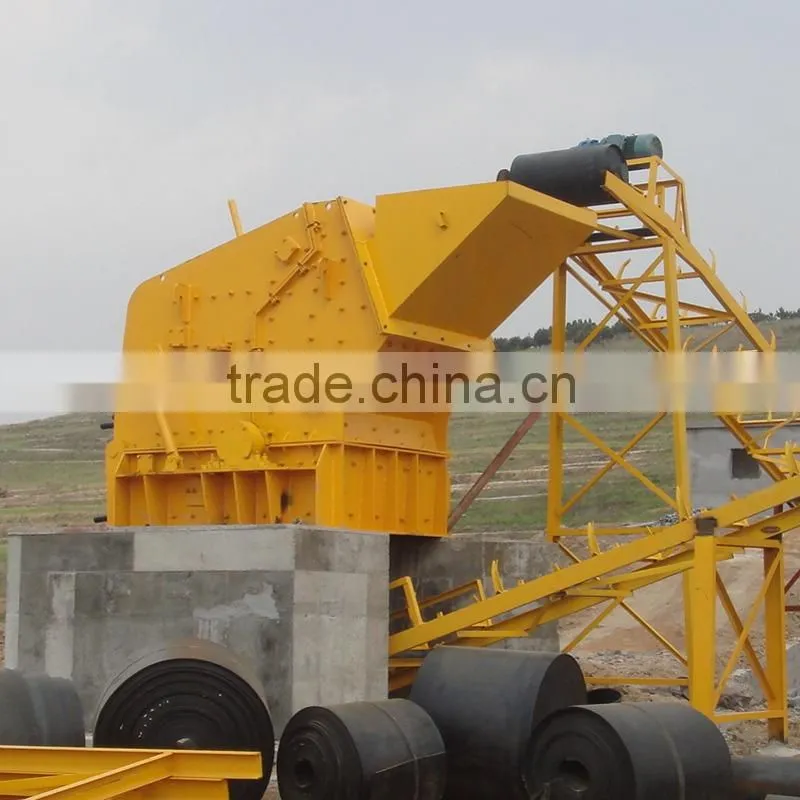

Operation Principle of stone crusher/ Impact Crusher Machine:
This machine is a breaking equipment used for breaking materials by a crushing. The device takes the to do high-speed rotatory movement under the lead of the motor; when the materials entered the functional section of plate hammer,they experiment plate hammer's high-speed crushing and are throwed constantly to the reaction device installed on the rotor , then spring back to the functional section of plate hammer from the back board, and then are crushed again;the materials from big to small in the shredding breach to be broken repeatedly. Until the materials are broken to the demanded grain size,discharged from the bottom of the machine.
Performance Features of stone crusher/ Imact Crusher Machine:
It is the latest reaction breaker, This machine combines breaking and shaping together; it has the features of being high efficiency, low-consumption, good discharge grain shape,.Compared with other reaction breaker, it can reduce the energy consumption by 40%, the quatity of the aggregate needle flake can be reduced by more than 80%.
Applicability of stone crusher/ Impact Crusher Machine:
Widely applied to all kinds of materials crushing, processing and shaping, such as basalt, granite, cobble stone, limestone, etc.
Technical Parameters
| Model | Rotor Specification(mm) | Feed opening size(mm) | Max.feed size(mm) | Capacity(t/h) | Motor power(kw) | Overall dimension(L*W*H)(mm) |
| PF-1007 | Φ1000*700 | 400*730 | <=70 | 37-45 | 55-75 | 2400*1558*2136 |
| PF-1010 | Φ1000*1050 | 590*1040 | <=100 | 50-90 | 75-90 | 2703*2033*2136 |
| PF-1210 | Φ1250*1050 | 755*1040 | <=120 | 60-130 | 110-132 | 3545*2352*2640 |
| PF-1214 | Φ1250*1400 | 755*1440 | <=140 | 70-180 | 132-160 | 3545*2462*2640 |
| PF-1315 | Φ1320*1500 | 855*1600 | <=160 | 90-250 | 180-220 | 3591*3068*2975 |
| PF-1320 | Φ1320*2000 | 855*2100 | <=180 | 120-350 | 280-315 | 3591*3568*2975 |
| PF-1515 | Φ1500*1500 | 850*1580 | <=200 | 220-280 | 280-315 | 3791*3068*3270 |
We mainly produce Rubber conveyor belt for Crusher machine , welcome to contact us for rubber conveyro belt price!
