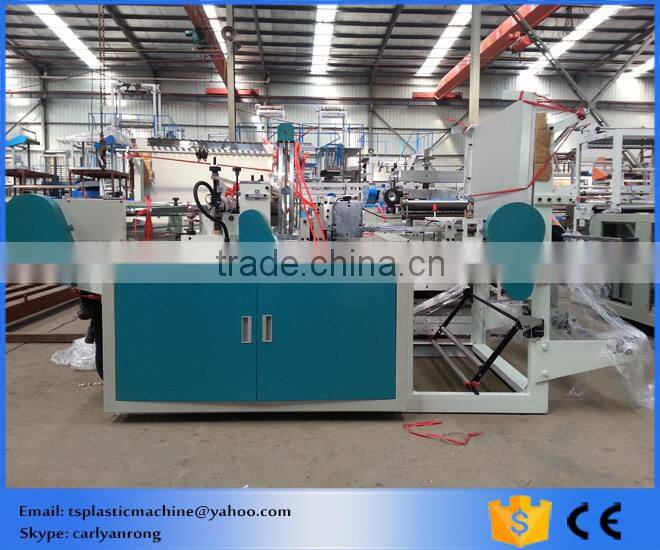

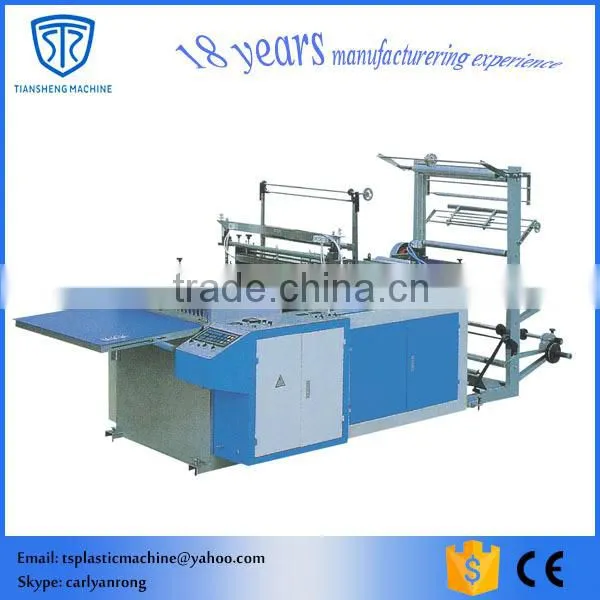

PP/PE Round Bottom Bag Making Machine

PP/PE Round Bottom Bag Making Machine thumbnail-1
PP/PE Round Bottom Bag Making Machine thumbnail-2
PP/PE Round Bottom Bag Making Machine photo-1
PP/PE Round Bottom Bag Making Machine photo-2
US$ 5,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Machine Type:
Bag Forming Machine
Bag Type:
Fruit Bag
Contact Supplier Request Quote Chat Now
Ruian Tiansheng Packing Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Machine Type Bag Forming Machine
Bag Type Fruit Bag
Material Other, Plastic, PP and PE
Computerized Yes
Place of Origin Zhejiang, China
Brand Name Tiansheng
Model Number TSL600
Voltage 220V
Power(W) 4.2kw
Dimension(L*W*H) 3*1.2*1.5m
Weight 800kgs
Certification CE and SGS
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

PP/PE round bottom bag making machine



PP/PE round bottom bag making machinePP/PE round bottom bag making machine







PP/PE round bottom bag making machine

PP/PE round bottom bag making machine







Features of round bag making machine

1.The whole machine adopts microcomputer

control and stepper motor for material-feeding.(Servo motor is optional).

2. Arbitrary fixed-length, accurate and the

machine will stops when the label is lost

tracking by photoelectric switch automatically.

3. Automatic and synchronous two-side tape gluing, bag hole automatic air punching system.

4. Automatic counting and set table counting

alarm.

5. Heat-sealing decorative border,  automatic constant temperature, film and smooth sealing.

6. Two sides of the heating and cutting blade,

the flat side for PE material only, both sides for

PP material.







     PP/PE round bottom bag making machine

Model

TSL 600

TSL 700

TSL 800

TSL 1000

Max bag width

560mm

660mm

760mm

960mm

Max bag length

700mm

Bag thickness

0.008-0.1mm

Speed of bag making

50-150pcs

Main motor power

1.1kw

1.1kw

1.5kw

1.8kw

Feeder motor

1 pcs

Electrical sensor

1 pcs

Photocell

1 pcs

Hole puncher

1 pcs

Stepper motors

1 pcs

Sealing and cutting blade

1 pcs

Sealing and cutting method

Heat sealing and heat cutting

Static eliminator

1 set

Machine weight

800kgs

900kgs

1000kgs

1150kgs

Machine dimension(M)

3×1.2×1.5

3×1.3×1.5

3×1.4×1.5

3.×1.5×1.5







PP/PE round bottom bag making machine

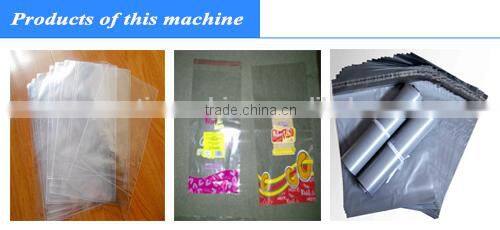

Products of round bag making machine are plastic chicken bags, plastic bread bags and courier bags, ect.







PP/PE round bottom bag making machine







Free spare parts with round bag making machine

No.

Spare parts

Quantity

1

Spring

100pcs

2

Teflon tape

2pcs

3

Blade heater

4pcs(a set)

4

Thermocouple

2pcs

5

Green conveyor belt

5pcs

6

Tool box

1pcs







PP/PE round bottom bag making machine







PP/PE round bottom bag making machine







PP/PE round bottom bag making machine







PP/PE round bottom bag making machine







link for more plastic bag making machine

PP/PE round bottom bag making machine







In order to quote you exact plastic bag making machine, please offer us following details:

1-What kind of plastic bag do you want to produce?

2-What is the max width of plastic bag do you want to produce?

3-What is the productivity of machine do you want?







OUR SERVICE:



1. Installation Services



 Installation Services are available with all our new machines. We can send our technician

to your factory to help you install your purchased machines from our factory. Of course,

your factory need to supply the round trip tickets food, hotel and salary to our technician.





2. Clients Training Services



We advise each customer can send your own technician come to our factory to learn how

to operate our machines. We will let our technician teach and train your technician hand by

hand till he can operate our machine by himself.





3. After Sales Service



Our machine guarantee time is one year.



We will send many easy broken spare parts in the tool box together with machines.



If any parts broken, please take a pictures or a videos to us.







PP/PE round bottom bag making machine
