Perforated PE plastic bag making machine, T-shirt/flat bag on roll
- 22 Set / Sets per Month
- Ningbo or Shanghai
- T/T Credit Card PayPal
Product Details
Condition: | New | Machine Type: | Bag Forming Machine | Bag Type: | T-shirt Bag |
Material: | Plastic | Computerized: | Yes | Place of Origin: | Zhejiang, China |
Brand Name: | Tiansheng | Model Number: | TSR500 | Voltage: | 220V |
Power(W): | 4.5kw | Dimension(L*W*H): | 3.3*1.1*1.75m | Weight: | 900kgs |
Certification: | CE and SGS | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

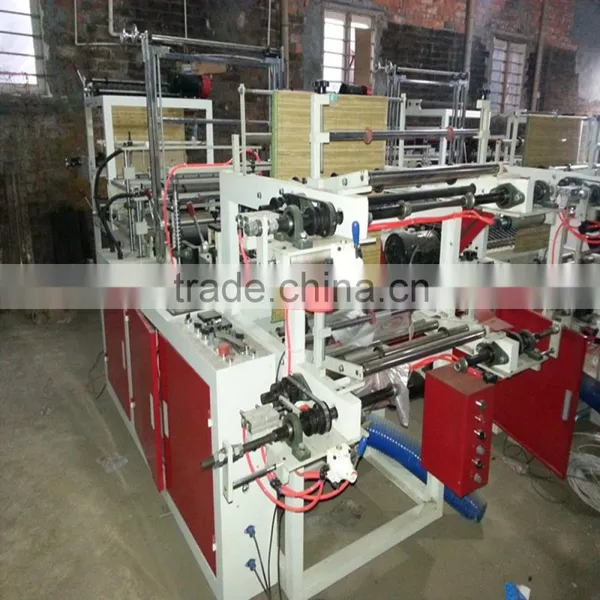

Perforated PE plastic bag making machine, T-shirt/flat bag on roll
Features of perforated bag making machine | |
1. Electrical sensors track the material feeding, it will stop automatically when material run out. | 2. Equipped With one photocell for tracking the printed film, it can make printed bags in one track, two or four tracks for non-printed bags. |
3. The sealing knives have double sides, one line sealing for flat bag, two lines sealing for T-shirt bag. | 4. Main driving motor is frequency inverter control, the bag making speed is adjustable. |
5. Bag length is controlled by stepper motor (servo motor optional), high precision. | 6. It can both T-shirt bag and flat bag in roll, by changing the cutting mold. This rolling plastic bag making machine can also make both roll bags with core, and coreless roll bags. |
Model | TSR 500 | TSR 600 | TSR 700 | TSR 800 | TSR 900 | TSR 1000 |
Max bag width | 400mm | 500mm | 600mm | 700mm | 800mm | 900mm |
Max bag length | 1200mm | |||||
Bag thickness | 0.008-0.05mm | |||||
Speed of bag making | 100-200pcs | |||||
Main motor power | 1.1kw | 1.1kw | 1.1kw | 1.5kw | 1.5kw | 1.8kw |
Feeder motor | 2 pcs | |||||
Electrical sensor | 2 pcs | |||||
Photocell | 1 pcs | |||||
Sealing knives | 2 pcs | |||||
Stepper motors | 1 pcs | |||||
Sealing method | Heat sealing | |||||
Cutting blade | 1 set | |||||
Cutting method | Point-cutting | |||||
Static eliminator | 1 set | |||||
Machine weight | 900kgs | 1000kgs | 1100kgs | 1200kgs | 1300kgs | 1400kgs |
Machine dimension(M) | 3.3×1.1×1.75 | 3.3×1.2×1.75 | 3.3×1.3×1.75 | 3.3×1.4×1.75 | 3.3×1.5×1.75 | 3.3×1.6×1.75 |

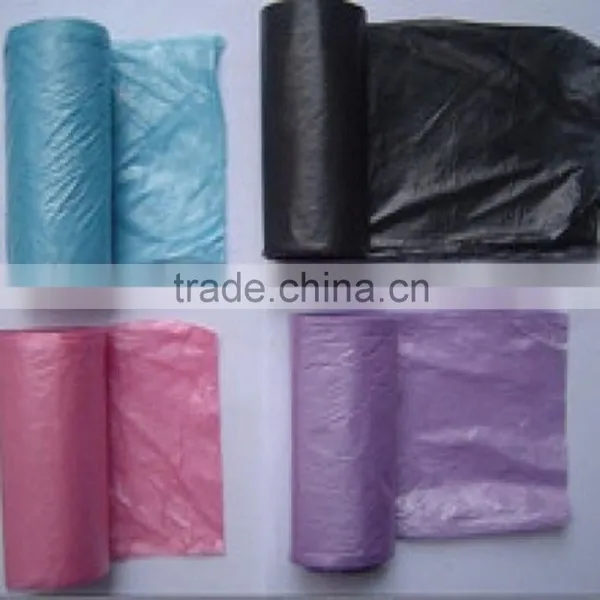

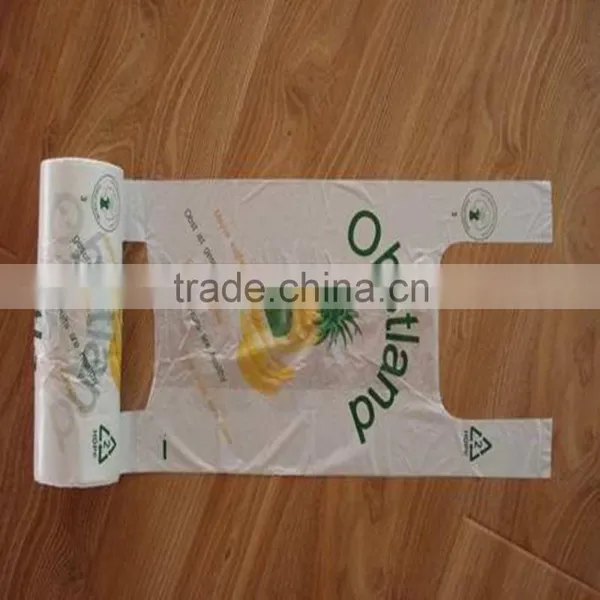

Products of perforated bag making machine are plastic flat bags and plastic t-shirt
bags on roll. Which is widely used in supermarket shopping and our daily life.
plastic perforated bag making machine
Free spare parts with plastic perforated bag making machine | ||
No. | Spare parts | Quantity |
1 | Spring | 100pcs |
2 | Teflon tape | 2pcs |
3 | Blade heater | 4pcs(a set) |
4 | Thermocouple | 2pcs |
5 | Tool box | 1pcs |
Our default way of packaging is stretch film! Please remind us if you need wooden pallet or wooden case.
link for more plastic bag making machines
In order to quote you exact plastic bag making machine, please offer us following details: |
1-What kind of plastic bag do you want to produce? |
2-What is the max width of plastic bag do you want to produce? |
3-What is the productivity of machine do you want? |
OUR SERVICE:
1. Installation Services
Installation Services are available with all our new machines. We can send our technician
to your factory to help you install your purchased machines from our factory. Of course,
your factory need to supply the round trip tickets food, hotel and salary to our technician.
2. Clients Training Services
We advise each customer can send your own technician come to our factory to learn how
to operate our machines. We will let our technician teach and train your technician hand by
hand till he can operate our machine by himself.
3. After Sales Service
Our machine guarantee time is one year.
We will send many easy broken spare parts in the tool box together with machines.
If any parts broken, please take a pictures or a videos to us.
