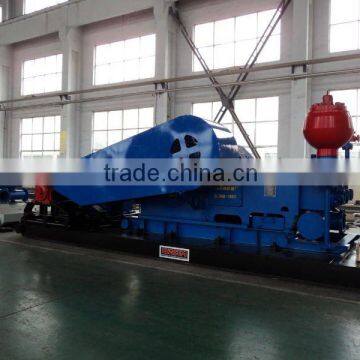

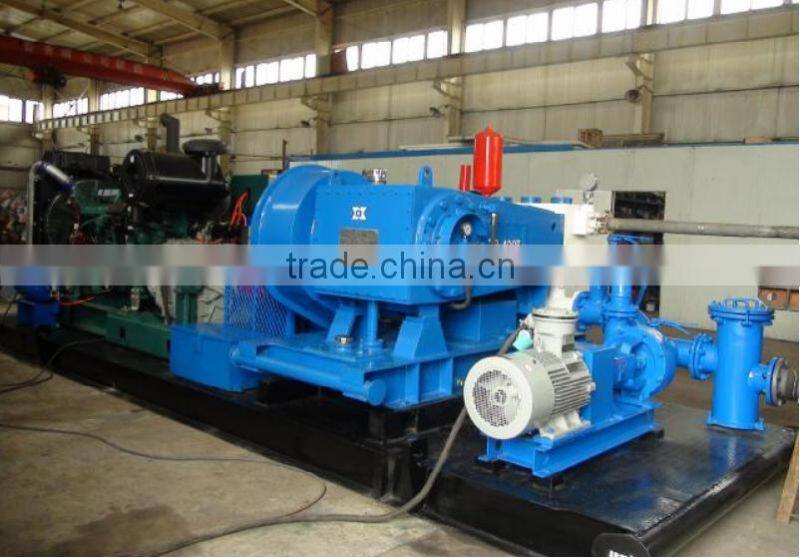

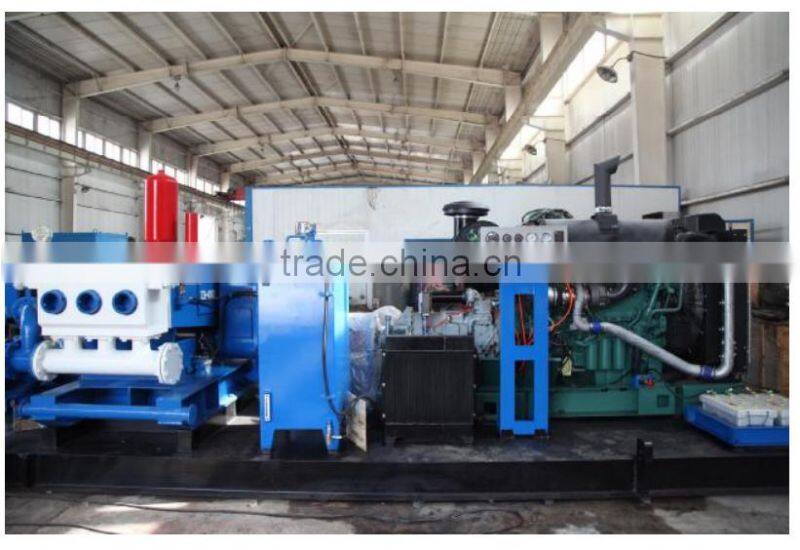

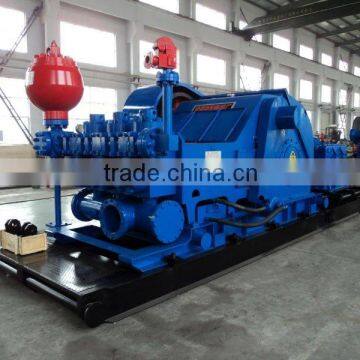

3NB—1300 Drilling mud pump
Product Explanation: 3NB—1300 Drilling mud pump is Triplex single action piston pump, Design characteristics is an optimization parameter, increased the stroke properly, lowered the speed reasonably, improved the suction capability of the pump, prolonged the service life of wearing parts The pump used for oil-field and other industrial and mining establishments; Used for the drill, well workover and transport the liquid media;Mainly installed on 25-45 rig.
The series pump produces according to SY5138 of the petroleum industry standard strictly, and carry through factory's experiment according to the standard
3NB—1300 Drilling mud pump technical parameter
Type | Triplex Single Acting Piston Pump | Stroke Length: | 305 mm |
Rated power | 1300HP (956KW) | Suction inlet | Φ300 mm |
Rated speed | 120 SPM | Discharge outlet | Φ102 mm |
Gear ratio | 4.194 | Weights | 20800 Kg |
Pump Speed (SPM) | Liner Size (mm) | ||||||||
130 | 140 | 150 | 160 | 170 | 180 | ||||
Theoretical Displacement (L/s) | |||||||||
120 | 24.27 | 28.16 | 32.52 | 36.18 | 41.52 | 46.54 | |||
100 | 20.23 | 23.46 | 27.1 | 30.15 | 34.6 | 38.78 | |||
90 | 18.21 | 21.12 | 24.39 | 27.13 | 31.14 | 34.90 | |||
Pressure Rating MPa | 34.3 | 30.5 | 26.6 | 23.4 | 20.7 | 18.5 | |||
Based on 90% mechanical efficiency and 100% volumetric efficiency.
