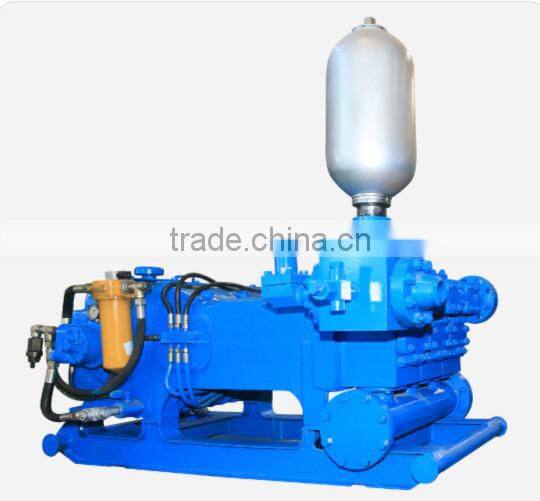

TEE300 Mud Pump

Name: TEE300 Mud Pump
Brand: SINOTAI
SKU: 119539313
Availability: InStock

Sinotai Petroleum Equipment Co., Ltd.

5Yrs

US$ 6,000 - 20,000 MOQ: 5 Sets

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

SINOTAI

Model Number:

TEE300 Mud Pump

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name SINOTAI

Model Number TEE300 Mud Pump

Theory Reciprocating Pump

Structure Piston Pump

Usage Oil

Power Electric

Standard or Nonstandard Standard

Fuel Gasoline

Pressure High Pressure

Application Other, Oil

TEE300 Mud Pump

Structural Characters

-Direct input at the end of the crankshaft

-The shell is made of integral nodular cast iron

-The crankshaft is made of cast alloy steel

-The outboard oil pump is used to lubricate all rotary parts by force and all accessories of the

oil pipe are fastened outside the shell so that it is easy to maintain.

-The hydraulic cylinder is made of alloy steel

-The intermediate rod is connected to the piston rod by clamps

-At the corners of crankshaft,bearing bush is used to take the place of bearings

Specification

Performance Table of TEE300 Triplex Single Acting Pump

Pis	Displacement		Discharge Capacity and Pressure
Pis	Displacement		75SPM				125SPM				175SPM
in	Gal/rev	Liter/rev	GPM	LPM	PSI	MPa	GPM	LPM	PSI	MPa	GPM	LPM	PSI	MPa
4	0.817	3.091	82	309	2950	20.6	163	618	1475	10.4	245	927	975	6.9
3.5	0.623	2.359	62	236	3800	26.8	125	472	1925	13.5	187	708	1300	9
3	0.460	1.741	46	174	5250	36.8	92	348	2625	18.4	138	522	1750	12.3
2.75	0.387	1.463	39	146	6150	43.3	77	293	3125	22	116	439	2075	14.6
2.5	0.319	1.206	32	121	7550	53.2	64	241	3775	26.5	96	362	2525	17.7
2.25	0.258	0.977	26	98	9300	65.5	52	195	4650	32.8	77	293	3100	21.8
2	0.204	0.722	20	77	10000	70	41	154	5900	41.4	61	232	3925	27.6
1.75	0.156	0.591	16	59	10000	70	31	118	7700	54.2	47	177	5125	36
Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency
