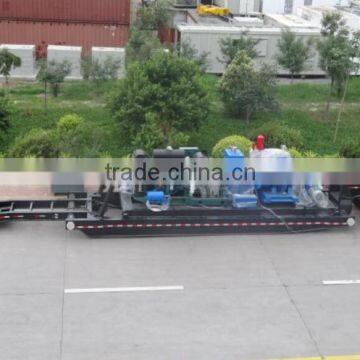

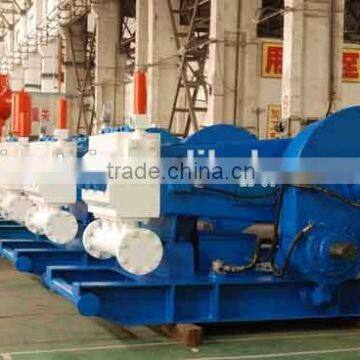

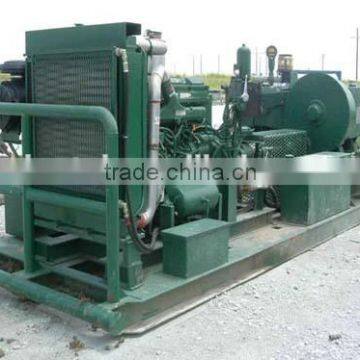

API 7K BH-1000 Triplex Single Acting Mud Pump

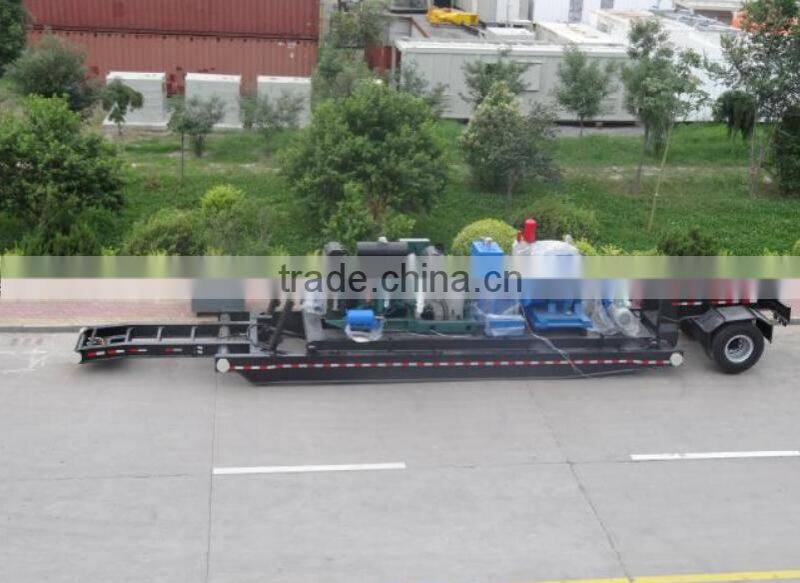

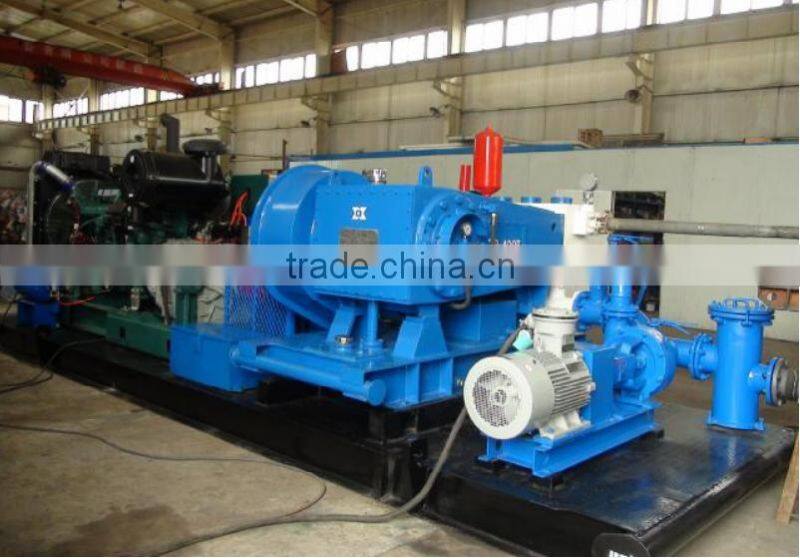

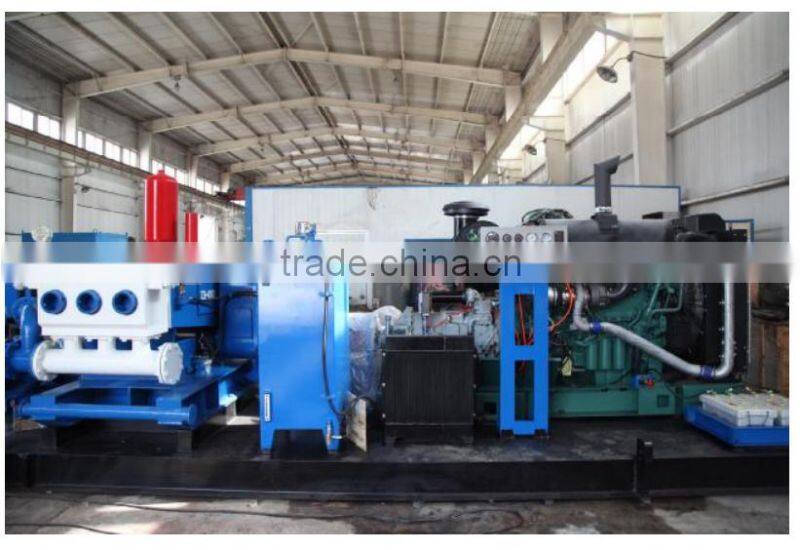

 API 7K BH-1000 triplex single acting mud pump

BH-1000 triplex single acting mud pump is the new model pump. It takes the advantage of hign efficiency, light weight and novelty construction, being ideal equipment for drilling and completion operation.

 Technical parameters :
Rated horsepower:               746kW (1000hp)
Rated strokes:                       140rpm
Stroke length:                         228.6mm(9")
Max working pressure: 35MPa (5000psi)
Gear ratio:                                   4.48:1
Valve pot size:                            API 7#
    Inlet diameter:                             254mm (10")
Outle diameter:                          127mm(5")
Weight:                                            34300lbs  (15600 kg)
Overall dimensions:                 4267×2794×2362 mm

 Structural Features:
a.The pinion is herringbone  gear. It has the features of high strength and long service life.
b. The main bearing carrier are closed annular type, the oil  reservoir lies below to lower the pump gravity center, which inproves pump stabillity.
c. Crankshaft combines casting shaft with eccentric cam. The casting shaft is forged from alloy steel and the eccentric cam cast from alloy steel. It can with stand higher load.
d. The big and small ends of the connecting rods uses roller bearing.
e. The power and utilizes the combination of splash lubrication and forced lubrication.
f.   Input shaft uses mechanical seal. No spare parts.
g. Lower slides uses tin bronze and upper sildes uses iron casting (long service life).
h. Vertical fluid cylinders fluid flowing smoothly.(suction high efficiency)
i. The liner and piston uses force spray cooling to prolong the service lige.
j. API 7# is used in valve assy. The valve seat hole processing by roll to prolong the service life.
K, Fluid end use british system, the spare parts can exchange with PZ9 pump

Performance date

Note:Based on 100%  volumetric efficiency and  90% Mechanical efficiency
