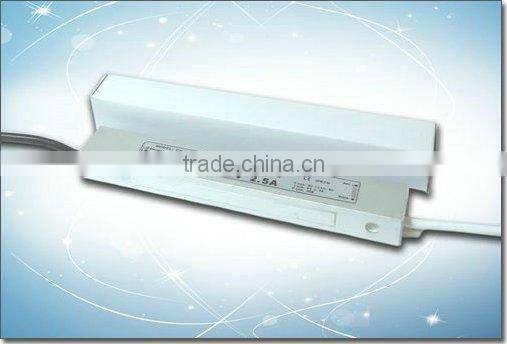

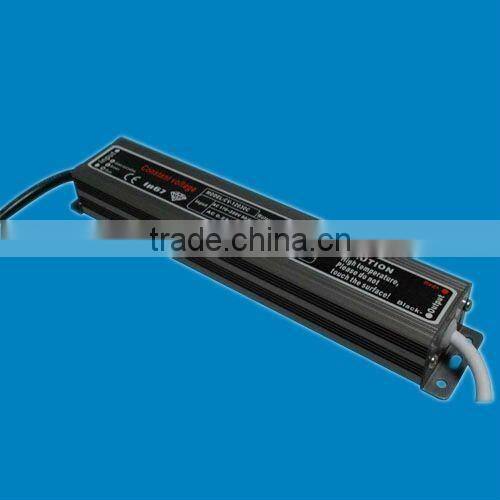

2.5A Waterproof LED Power Supply 30W

1.Product Name and No:

Name:

LED Power Supply

Item No:

CV-12030C-Coffee

2.Technical Parameters:

Working Voltage(V)

AC 170-250V

Frequency(Hz)

47-63Hz

Input Current(A)

0.22A

Output Voltage(V)

DC 12±0.5V

Maximum Output Power(W)

30W

Maximum Output Current(A)

2.5A

Voltage Resistance(KV)

AC 2KV/3mA 3S

Short-circuit Protection

Yes

Temperature Rise(°C)

≤28°C

Temperature Protection

Yes

Waterproof Rate

IP67

Overload Protection

Yes

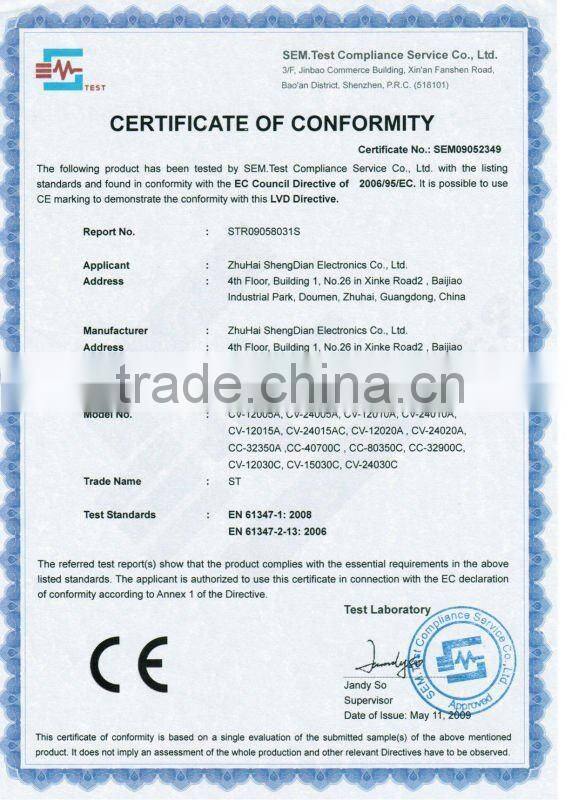

Certificate

CE(EMC+LVD)

Working Temperature(°C)

-25°C~45°C

N.W(g)

330g

3.Measurement(mm)

L±2

W±1

H±1

L1±5 Input

L2±5 Output

La±5

Lb±5

Lc±2

Ld±2

210

36

26

200

200

35

35

5

5
