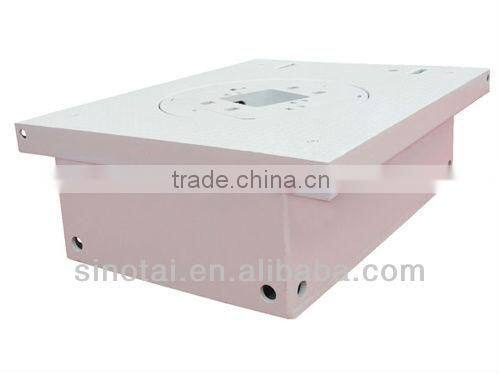

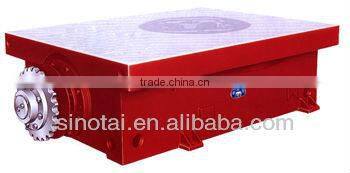

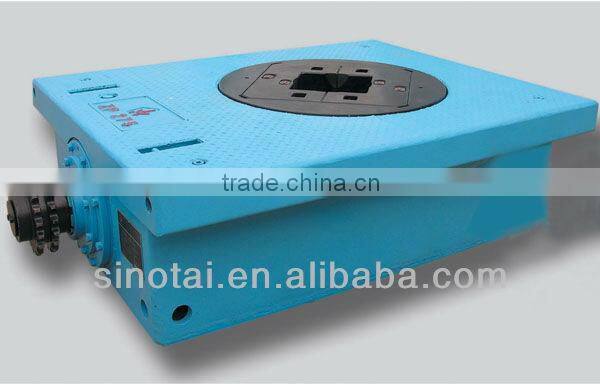

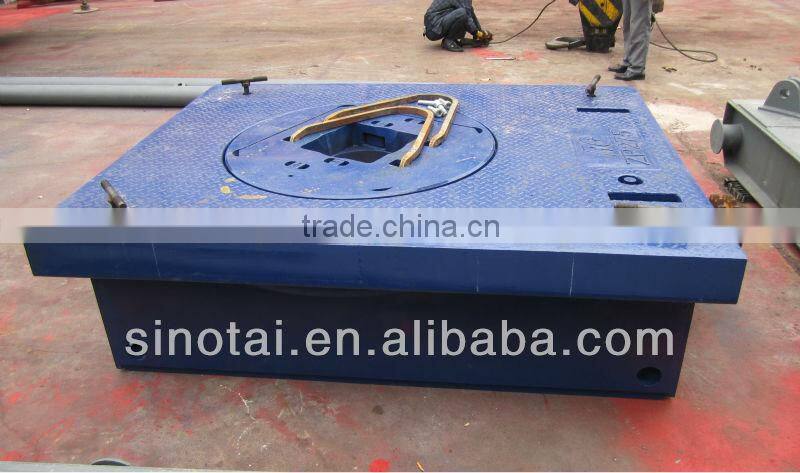

Rotary Table ZP175 for Drilling Rig

Name: Rotary Table ZP175 for Drilling Rig
Brand: Sinotai
SKU: 119524167
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Rotary Drilling Rig

Power Type:

Electric

Sinotai Petroleum Equipment Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Rotary Drilling Rig

Power Type Electric

Place of Origin China

Brand Name Sinotai

Model Number ZP175

Dimension(L*W*H) 1974x1366x560

Weight 1974x1366x560kg

Certification API Spec. 8A/8C

Warranty free for 1 year

After-sales Service Provided Engineers available to service machinery overseas

Gear wheel and pinions are all made of alloy steel.

According to needs, master bushing and kelly roller bushing can adopt square drive or pin drive.

Pin drive type master bushing can put into API standard kelly or hex kelly roller bushing. Long clips and short clips are applicable.

Full lubrication and steady seal.

The rotary table conforms to API Spec. 8A/8C and API monogram can be used.

The main technical performance and specification for the rotary table:

Model		ZP175	ZP205	ZP205-II	ZP275	ZP375	ZP495
Opening Dia.	mm(in)	444.5(17-1/2)	520.7(20-1/2)	520.7(20-1/2)	698.5(27-1/2)	952.5(37-1/2)	1257.3(49-1/2)
Center of Table to Center of Sprocket	mm(in)	1118(44)	1353(53-1/4)	1118(44)	1353(53-1/4)	1353(53-1/4)	1651(65)
Max. Static Load	KN (US Ton)	2700(300)	3150(350)	3150(350)	4540(500)	5850(650)	7250(800)
Max. Working Torque	NM (ft-lbs)	13729(10124.6)	22555(16633.5)	22555(16633.5)	27459(16633.5)	32362(23865.8)	37000(27286.18)
Max. Speed	r/min	350	300	300	300	300	300
Gear Ratio		3.75	3.22	3.79	3.67	3.56	3.93
Overall Dimension (LxWxH)	mm(in)	1974x1366x560 (77.7x53.8x22)	2217×1500×660 (87.3×59 ×26)	1969×1410×610 (77.5×55.5×24)	2392×1670×685 (94.2×65.7×27)	2468×1810×718 (97.2×71.3×28.3)	2940×2184×813 (115.7×86×32)
Weight	kg(lbs)	1974x1366x560 (8083)	5500(12125)	5450(12015)	6122(13496)	7970(17570)	11626(25630.9)
