Specifications

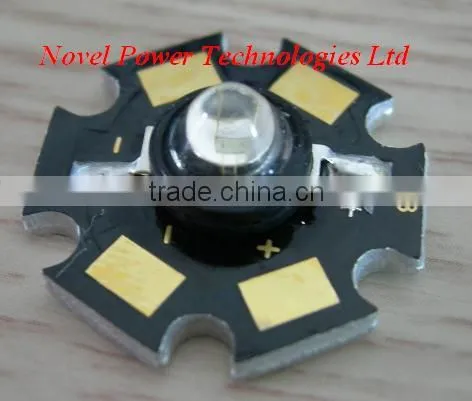

Power LED specially designed for street lighting. High light effeciency, lower loss, good thermal performance.Typical Parameter at Ta=25°C Tj≤80°C IF=350mA |
||||||||||
Part Number |
Emitting Color |
color temperature Tc(K) / Wave Length (nm) |
Lens Type |
Forward Voltage Vf(V) |
Luminous Flux(lm) |
Viewing Angle(°) |
||||
NPT1WR30 |
Red |
620~630 |
Water Clear |
2.0~2.6 |
30~45 |
115±5 |
||||
NPT1WY30 |
Yellow |
585~595 |
Water Clear |
2.0~2.6 |
30~45 |
115±5 |
||||
NPT1WB10 |
Blue |
460~470 |
Water Clear |
3.2~3.6 |
10~15 |
115±5 |
||||
NPT1WG60 |
Green |
520~530 |
Water Clear |
3.2~3.6 |
60~70 |
115±5 |
||||
NPT1WW90 |
White |
6500~8000 |
Water Clear |
3.2~3.6 |
90~100 |
115±5 |
||||
NPT1WWW80 |
Warm White |
3000~3500 |
Water Clear |
3.2~3.6 |
80~90 |
115±5 |
||||
Absolute Maximum Ratings at Ta=25°C |
||||||||||
Parameter |
Symbol |
MAX |
Unit |
|||||||
Power Dissipation |
PD |
1200 |
mW |
|||||||
Peak Forward Current (1/10 Duty Cycle 0.1ms Pulse Width) |
IFP |
400 |
mA |
|||||||
Reverse Voltage |
VR |
5 |
V |
|||||||
Reverse Current |
IR |
≤10 |
μA |
|||||||
Operating Temperature |
Topr |
-25~80 |
||||||||
Storage Temperature |
Tspr |
-40~100 |
||||||||
Lead Soldering Temperature(5mm From The Base Of The Epoxy Bulb) |
Tsol |
260≤5s |
||||||||
