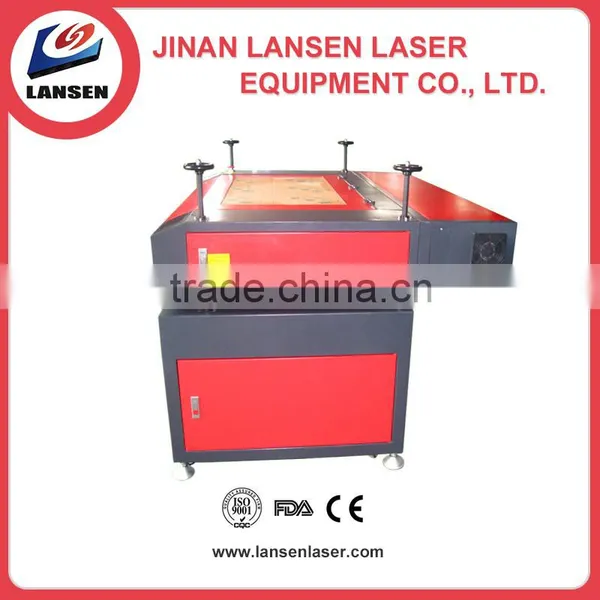

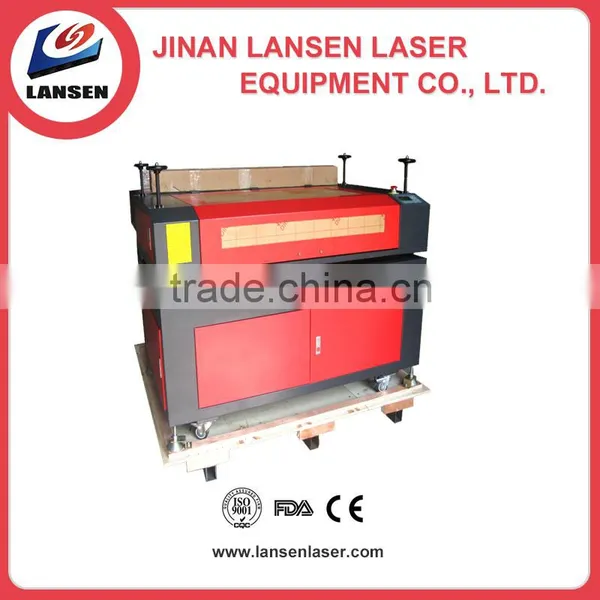

Widely used Divisible Co2 Granite Laser Engraving machine
Widely used Divisible Co2 Granite Engraving Laser machine applicable materials:
| Materials | Cut | Engrave |
| Stone, Ceramic, Granite, Marble, Natural Stone, Pebble Stone, Slate | No | Yes |
| Acrylic, Plexiglass, Pmma, Perspex, Double Color plate, ABS board | Yes | Yes |
| Plastic, PP, PET, PC, PMMA, PS, PES, PA, Plastic Foils&Films, Polycarbonate, polyester or polyimide membrane keyboards |
Yes | Yes |
| Wood, Bamboo, Veneer, MDF, Blasa wood, Plywood | Yes | Yes |
| Leather, Pig leather, Cow leather, Sheep Leather | Yes | Yes |
| Textile, Cotton, Silk, Felt, Lace, Synthetic & technical textiles, aramid | Yes | Yes |
| Foam & Filter, Mats Polyester (PES), Polyethylene (PE), Polyurethane (PUR) Neopren |
Yes | Yes |
| Paper, Cardboard, Chipboard, Press board | Yes | Yes |
| Rubber, Synthetic % Silicone Rubber, Natural Rubber, Microporous foam, Silicone Rubber, Synthetic Rubber |
Yes | Yes |
| Glass, Pressed glass, Float Glass, Crystal Glass, Mirror glass | No | Yes |
Widely used Divisible Co2 Granite Engraving Laser machine Features:
1). Upper part and the under part of the machine are separated. The upper part can put on large and thick marbles/stones/granite directly.
2). The machine is with double up-down worktable. The upper part and the under part can move up and down automatically, which are very convenient for thick material.
3). Very useful for small house doors.
Product description:

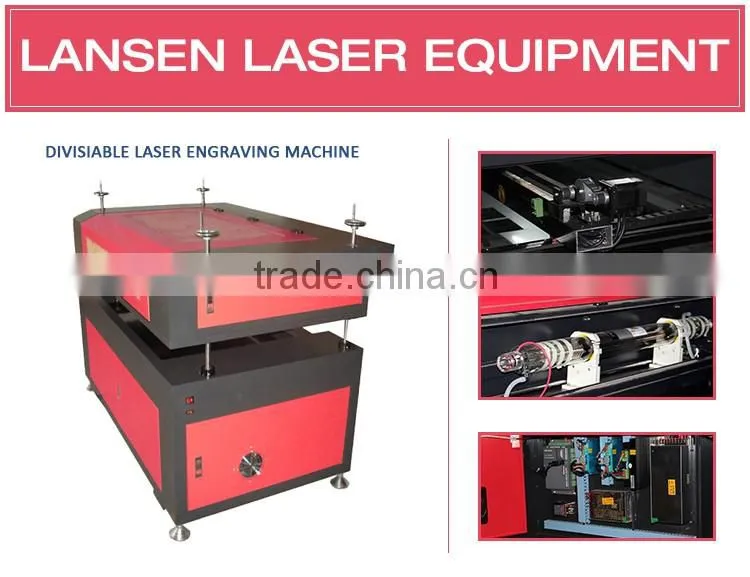

Divisible Stone Engraving Laser Engraving machine is developed for heavy materials. It brings great convenience to customers. The machine is designed by upper part and lower part, and the two parts can be separated. The upper part can be moved down from the machine, and the lower part can configure suitable platforms according to customers’ requirements. The design changes the traditional engraving method. For some heavy materials we can put the upper part onto them, so that avoiding the difficulty of moving heavy material. Meanwhile, it solves the problem that platform has a limited bearing ability. Both parts can be up and down so that engraving objects with greatly thickness changing is much easier to process.
With unique design, excellent technique, our divisible style laser engraving machines are popular in marble engraving industry and many heavy material engraving industries.
Applicable Industries:
Marble Engraving industry, advertisement, gift, packaging, shoes, garments, toys, model, decoration, arts and crafts, paper industry, etc.
Applicable Materials:
Marble, Granite, Tombstone, wood, acrylic, organic glass, crystal, fabric, paper, leather, rubber, ceramic, glass and other non-metal materials, etc.
Widely used Divisible Co2 Granite Engraving Laser machine Parameters:
Model |
LP-D1060 |
Working area |
100cm*60cm / 39.4in*23.5in |
Equipment size |
1450mmx950mmx1070mm/57.1in*37.4in*42.1in |
Laser power |
60W |
Laser type |
CO2 sealed laser tube, water-cooled, 10.6um |
Engraving speed |
0-60000mm/min |
Cutting speed |
0-30000mm/min |
Laser output control |
1-100% software setting |
Communication interface |
USB |
Smallest Character Engraving |
English 1.0mm*1.0mm |
Locating Precision |
≤±0.01mm |
Highest Scanning precision |
2500DPI |
Operating temperature |
0 - 45°C |
Cooling type |
Water cooling |
Power supply |
220V/50HZ , 110V/60HZ |
Graphic format supported |
BMP, PLT, DST, DXF, AI |
Software supported |
CorelDraw, PhotoShop, AutoCAD,TAJIMA |
Driving system |
3 phase stepper motor |
Widely used Divisible Co2 Granite Engraving Laser machine engrave however not limit on engraving above materials, more information, welcome to refer to our sales person.
1. 24 Months for Machine
2. 10 Months for Reci Laser tube, and 6 month for other tube , lens and mirror
3. 12 Months for equipment outside, such as water pump, fan, air pump,etc.
4. Detailed manual and video to guide the user how to use the machine and maintenance, also supply the specs settings for the speed and power to engrave or cut on various material. Lifely and fast technical guide and solution within 24hours by email and web camera.
