fabric rubbing aatcc crockmeter fastness test
SKZ159A
Display: Digital type
Sample clamp: 1pc, manual clamp
Pressure head: 9N
Reciprocating time: 1-99999 times
Rubbing head diameter: 16mm or 19 × 25.4 mm
Crank rotation No.: 60 beats / min
Rubbing head stroke: 104mm
SKZ159
Display: Digital type
Sample clamp: 1pc, manual clamp
Pressure head: 9N
Reciprocating time: 10 times automatically stop
Rubbing head diameter: 16mm or 19 × 25.4 mm
Crank rotation No.: 60 beats / min
Rubbing head stroke: 104mm
SKZ159B
Display: Digital type
Sample clamp: 2pcs, pneumatic clamp
Pressure head: 9N
Reciprocating time: 1-9999 times
Rubbing head diameter: 16mm or 19 × 25.4 mm
Crank rotation No.: 60 beats / min
Rubbing head stroke: 104mm
To determine rubbing color fastness for textiles, knitted fabrics, leather, metal plates of the electro -chemical, printing.
Standard:
GB/T3920, ISO105-X12, GB/T5712, ISO105-D02
Testing mode:
Rubbing the sample with a wet and dry rubbing cloth, then judge its discolor and staining situation by the gray sample card
Characteristics: 1. Motor-driven, efficient and low energy consumption.
2. Using stainless steel for its crank and other key components
3. Equipped with a rectangular rubbing head 19 × 25.4mm, for velvet fabric. And circular rubbing head diameter 16mm, for a variety of other textiles.
4. Equipped with automatic control circuit
Specification:
1.Rubbing head pressure: 9N
2.Rubbing head diameter: 16mm or 19 × 25.4 mm
3.Crank rotation No.: 60 beats / min
4.Reciprocating time: 1-9999times/ 10 times/ 1-999times
5.Rubbing head stroke: 104mm
6.Sample maximum size and thickness: 220 × 110 × 5mm
7.Motor power: 40w
8.Dimensions: 760 × 270 × 240mm
9.Voltage: AC220V, 50HZ
10.Weight: about 20Kg
Packing list:
Host 1PC
Water case 1PC
Cloth ring 1PC
Square rubbing head 1PC (19*25.4mm)

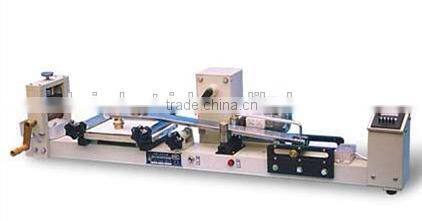

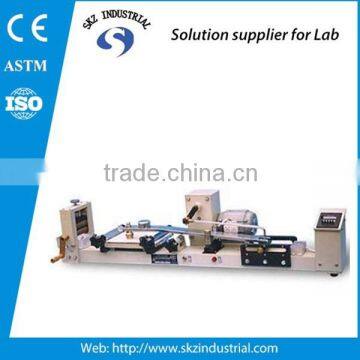

Real picture of SKZ159
Picture of SKZ159A
Pictures of SKZ159B two clamps, two test sample at one testing
Connect with air pump
