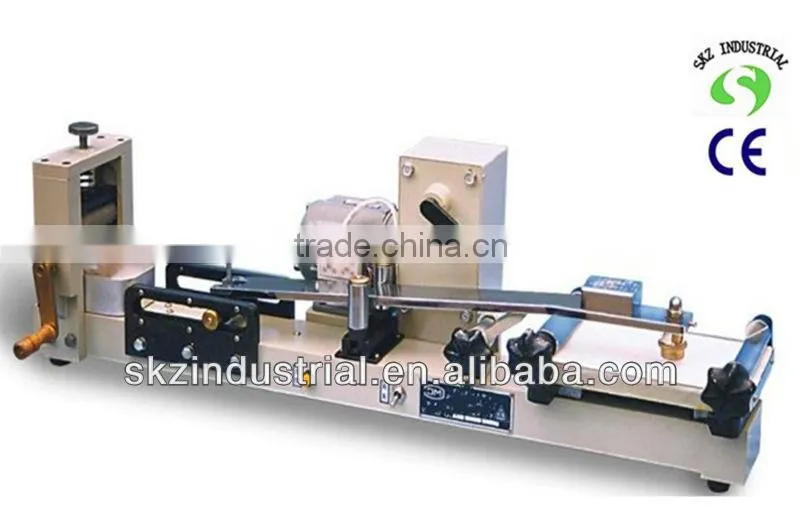

electronic crockmeter AATCC 8. 165 rubbing fastness tester
To determine rubbing color fastness for textiles, knitted fabrics, leather, metal plates of the electro -chemical, printing.
Standard:
GB/T3920, ISO105-X12, GB/T5712, ISO105-D02
Testing mode:
Rubbing the sample with a wet and dry rubbing cloth, then judge its discolor and staining situation by the gray sample card
Characteristics: 1. Motor-driven, efficient and low energy consumption.
2. Using stainless steel for its crank and other key components
3. Equipped with a rectangular rubbing head 19 × 25.4mm, for velvet fabric. And circular rubbing head diameter 16mm, for a variety of other textiles.
4. Equipped with automatic control circuit
Specification:
1.Rubbing head pressure: 9N
2.Rubbing head diameter: 16mm or 19 × 25.4 mm
3.Crank rotation No.: 60 beats / min
4.Reciprocating time: 10 times
5.Rubbing head stroke: 104mm
6.Sample maximum size and thickness: 220 × 110 × 5mm
7.Motor power: 40w
8.Dimensions: 760 × 270 × 240mm
9.Voltage: AC220V, 50HZ
10.Weight: about 20Kg
Packing list:
Host 1PC
Water case 1PC
Cloth ring 1PC
Square rubbing head 1PC (19*25.4mm)
We can offer three types:
Type |
Head pressure |
Head dia. (mm) |
Rotation No. (beats/ min) |
Reci. time |
Head stroke (mm) |
Sample No. |
Clamp |
SKZ159A |
9N |
16 or 19 * 25.4 |
60 |
10 |
104 |
1 |
Manual |
SKZ159 |
9N |
16 or 19 * 25.4 |
60 |
1-99999 |
104 |
1 |
Manual |
SKZ159B |
9N |
16 or 19 * 25.4 |
60 |
1-9999 |
104 |
2 |
Pneumatic |
