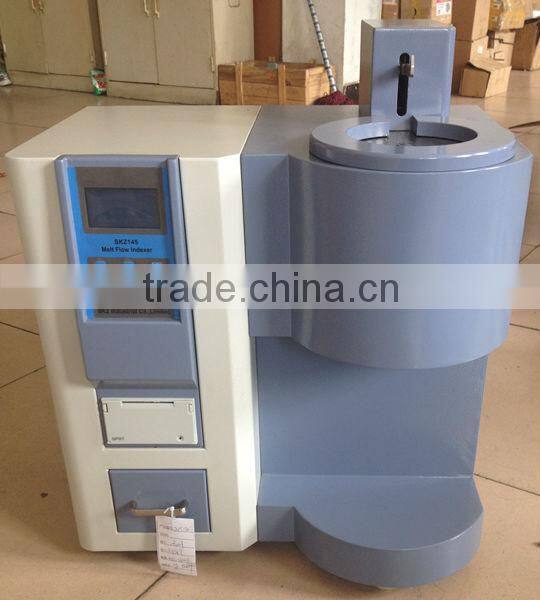

High Quality Price Plastic Melt Flow Indexer/plastic Melt Flow Index Tester

high quality price plastic melt flow indexer/plastic melt flow index tester

Standards: GB 3682, ISO 1133, ASTM D 1238, DIN 53735, UNI-5640, JJB878, and made according to JB/T5465 (Technical Standard of Melting Flow Rate Instrument).

Tests performed:

adopts PID temperature control, digital display, it can cut material automatically, has two measuring method, MFR and MVR, print out the test report

Main technical parameter:

Measuring range: 0. 01-600.00 g/10min (MFR)

0. 01-600.00 cm/10min(MVR)

0.001-9.999 g/cm (melt density)

Temperature range: 50-400°C

Temperature precision: ±0.5°C   resolution: 0.1°C

Material canister inside diameter 9.55±0.025mm   length: 160mm

Piston diameter 9.457±0.01mm mass: 106g

Mould inside diameter 2.095mm   length: 8±0.025mm

Load: full load

Base weight: 0.325Kg.

Weights: 0.875Kg, 1.290Kg, 1.835Kg, 3.475Kg, 4.675Kg, 5.000Kg, 5.000Kg one each (may freewill combination )

Accuracy: 0.5%

Cleaning accessories: clear material pole

Calibration accessories: water level bubble

Measuring method: MFR MVR/ DENSITY

Supply Power: 220V±10% 50Hz     Heat up power: about 550W

Outline size: (length*width*height )     600*400*500 (unit: mm)

Net weight: 85Kg   Gross weight: 135Kg

Packing list:

Mainframe                                   one

Base weight                                one

Weight                                         one (six sort’s seven pieces)

Piston                                          one

Mould                                           one

Oriented sheath                          one

Water level bubble                     one

Hopper                                         one

Clear material pole                     one

Mould bore                                  one

Material check                             one

Provide English explanation       one each

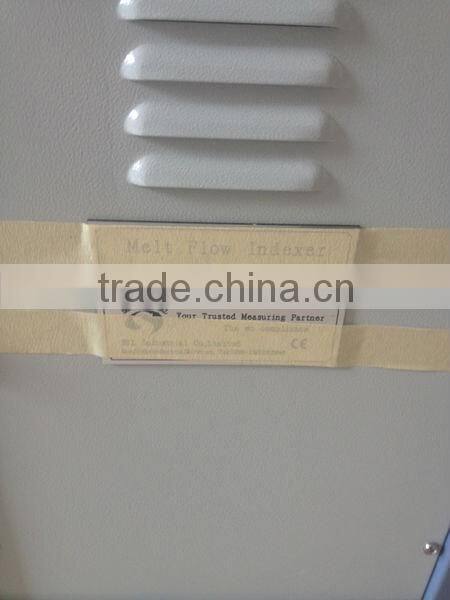

                             Its name card, with unique ID

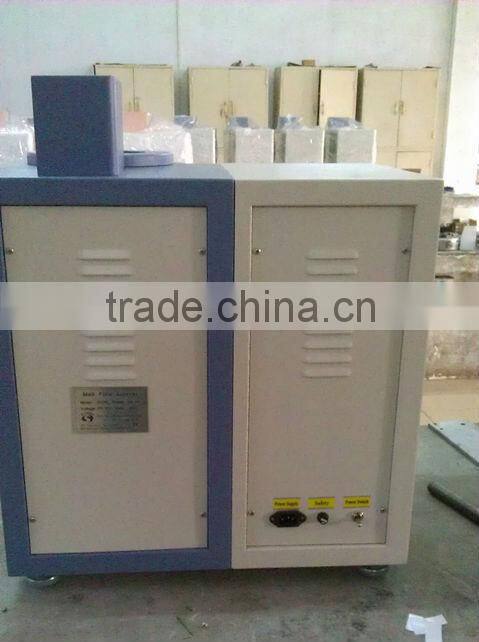

                                 outward appearance of its backside

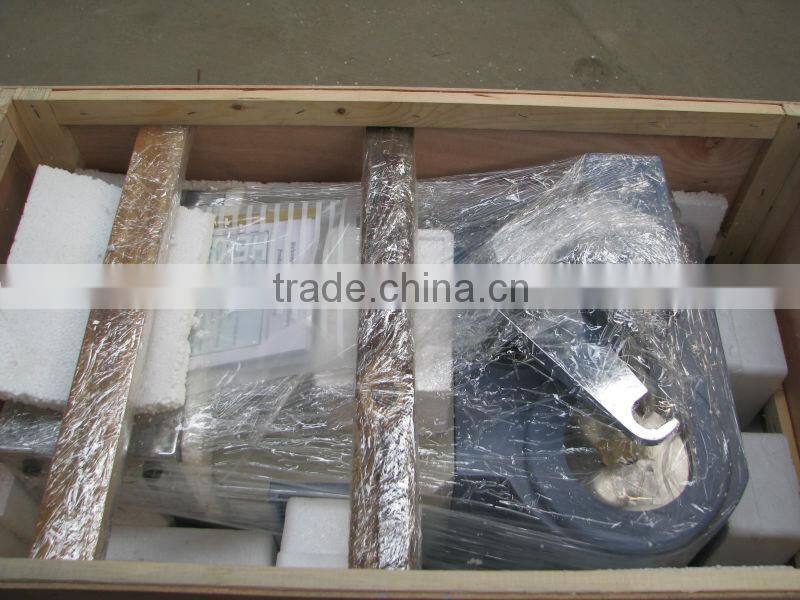

                      Wrapped by plastic film, and filled with foam

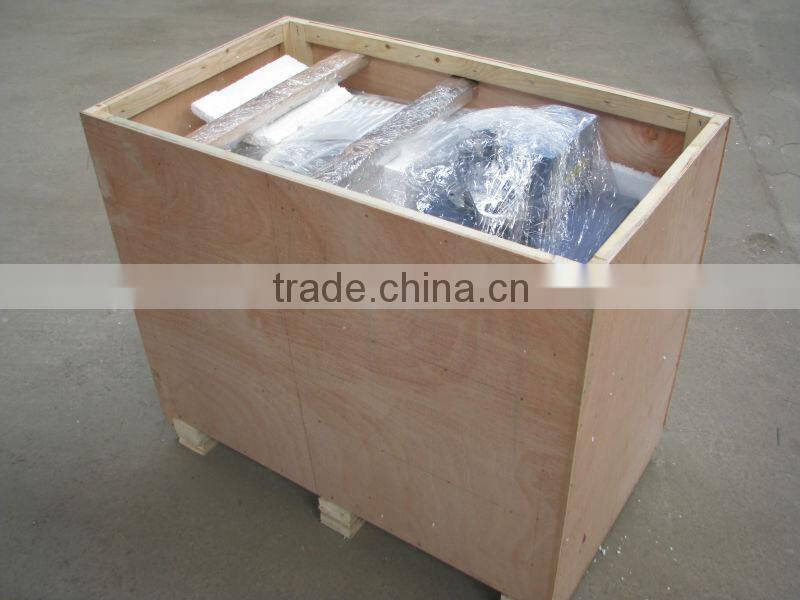

                         Packed by ply-wooden cases, Free fumigation

                                Solid packages with marks
