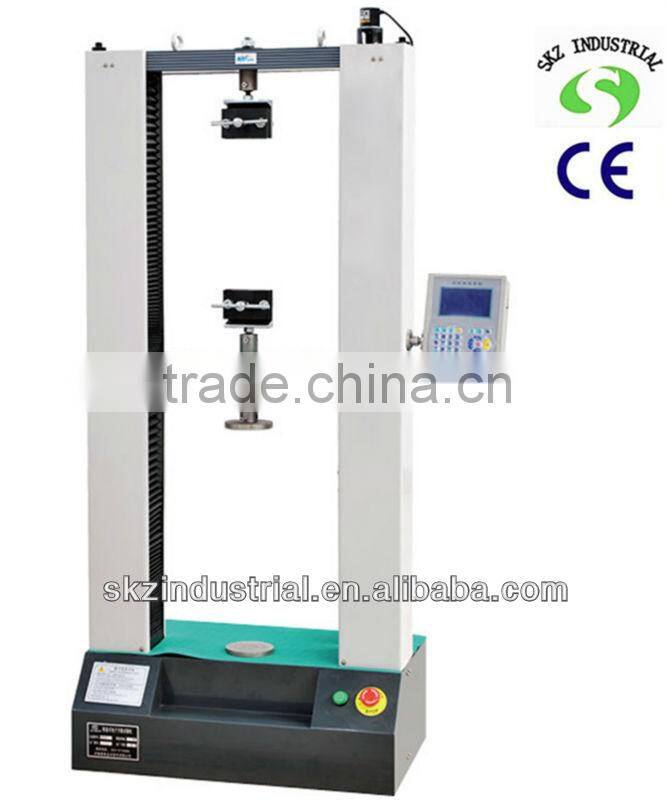

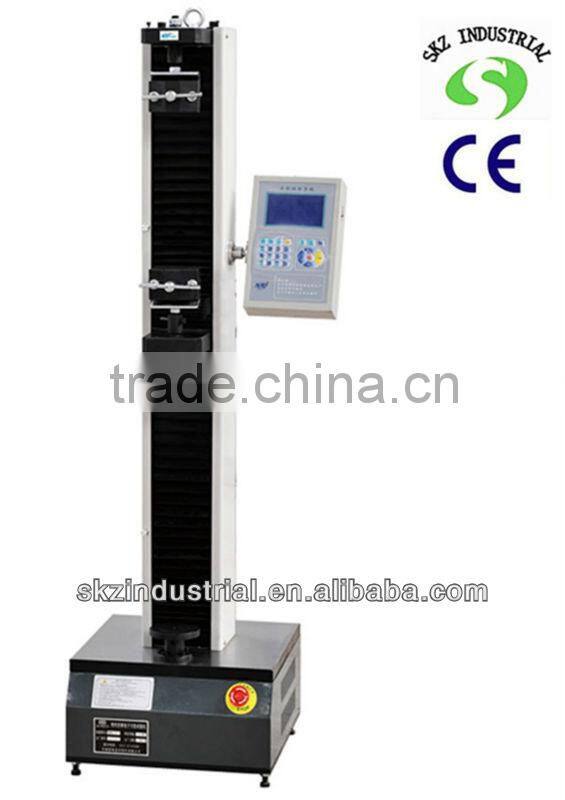

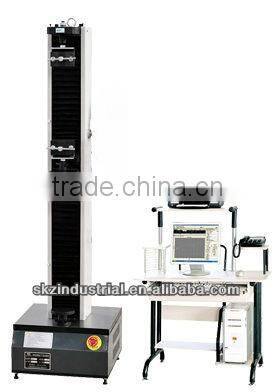

Digital Rubber Tension and Bending Tester

Jinan Qingqiang Technology Co., Ltd.

US$ 9,000 - 12,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

SKZ

Model Number:

SKZ101

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing/Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name SKZ

Model Number SKZ101

Power Electronic

Usage Universal Testing Machine

digital rubber tension and bending tester

Used to test Tensile, compression, bending, shear, peel, tear.

2. Advantages

1) The test force can be adjusted in a wide range, stable and effectively.

2) Display test force, test speed and displacement at real time

3) It can automatically return to the original position after test.

4) Has the functions of limit position protection, over load protection and over current protect.

3. Main technical parameter

1	Max test force	500N,1KN, 2KN,3KN, 5KN
2	Precision of the equipment	1%
3	Measuring range	10N-1KN
4	Relative error of indicating value	1%
5	Resolution of test force	1/200000
6	Min reading value of deformation	0.01mm
7	Speed range	0.2-500mm/min
8	Test span	75mm
9	Stroke of crossbeam	0-800mm
10	Loading mode	Electrically
11	Control mode	Computer type
12	Voltage (should connect to the ground)	440V, 3 phase
13	Power	400W
14	Dimension of main machine	410X430X1550mm
15	Weight	100kg

4. Configuration

Main machine	Single arm structure Precise ball screw	1 set 2 sets
Drive system		1 set
Control system	computer control,	1 set
Load sensor		1 PC
Limit position device		3 PCS
Tensile accessories	Corrugated fixture with width:100mm, Length:50mm	1 set
Clamp grips	with width:100mm, Length:50mm	1 set
Diameter of compression plate	100mm	1 set
