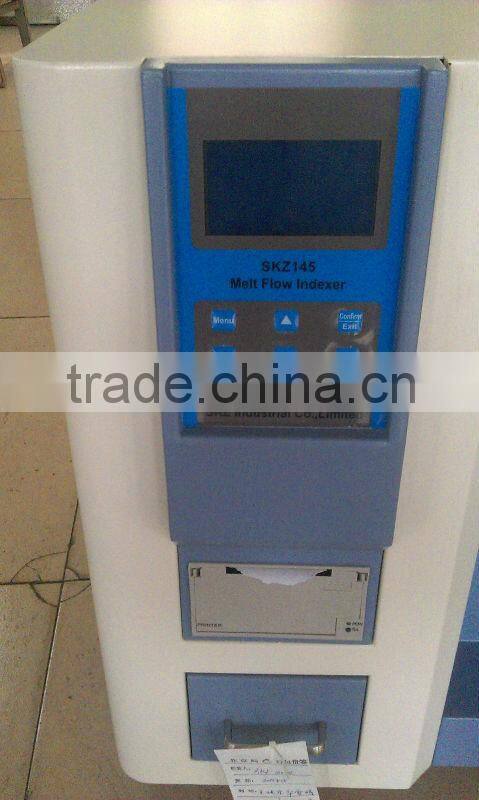

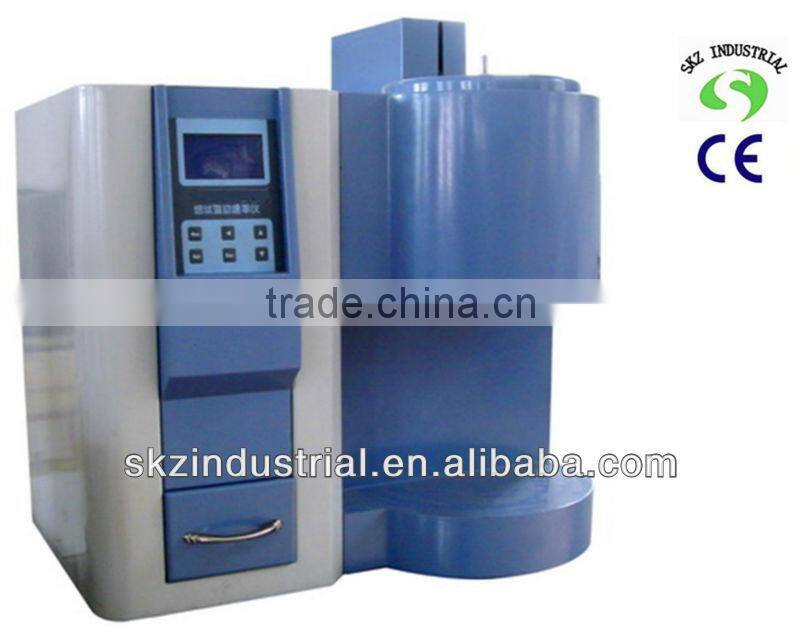

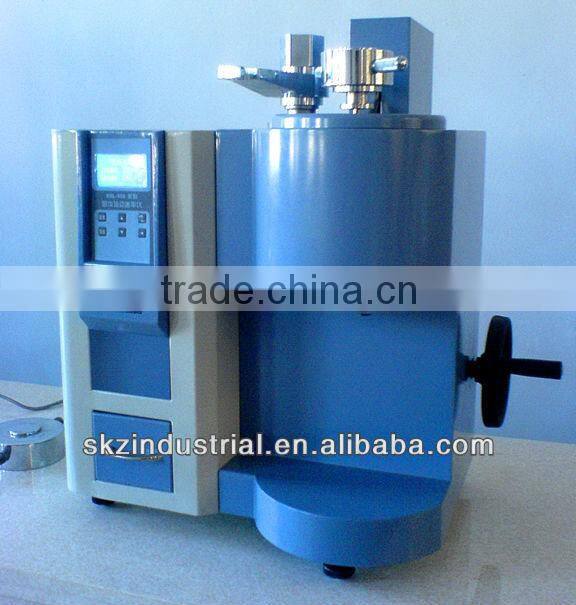

LCD Plastic Melt Flow Rate Tester Mfi Index Test Machine

LCD plastic melt flow rate tester mfi index test machine

LCD Melt Flow Indexer To determine the melt mass-flow MFR (g/10min), the melt volume-flow rate MFV(cm³/10min)and the melt density of thermo resin, for the engineering plastics of polycarbonate, nylon and fluorine plastics, etc, whose melt temperature are higher, but also fit for the plastics tests of polyethylene, polystyrene, polypropylene, ABS resin and poly-formaldehyde resin, etc, whose melt temperature are lower, it is widely applied to the fields of plastics materials, product, petrochemical

Standards: GB 3682, ISO 1133, ASTM D 1238, DIN 53735, UNI-5640, JJB878, and made according to JB/T5465 (Technical Standard of Melting Flow Rate Instrument).

Tests performed:

adopts PID temperature control, digital display, it can cut material automatically, has two measuring method, MFR and MVR, print out the test report

Main technical parameter:

Measuring range: 0. 01-600.00 g/10min (MFR)

0. 01-600.00 cm/10min(MVR)

0.001-9.999 g/cm (melt density)

Temperature range: 50-400°C

Temperature precision: ±0.5°C   resolution: 0.1°C

Material canister inside diameter 9.55±0.025mm   length: 160mm

Piston diameter 9.457±0.01mm mass: 106g

Mould inside diameter 2.095mm   length: 8±0.025mm

Load: full load

Base weight: 0.325Kg.

Weights: 0.875Kg, 1.290Kg, 1.835Kg, 3.475Kg, 4.675Kg, 5.000Kg, 5.000Kg one each (may freewill combination )

Accuracy: 0.5%

Cleaning accessories: clear material pole

Calibration accessories: water level bubble

Measuring method: MFR MVR/ DENSITY

Supply Power: 220V±10% 50Hz     Heat up power: about 550W

Outline size: (length*width*height )     600*400*500 (unit: mm)

Net weight: 85Kg   Gross weight: 135Kg

Packing list:

Mainframe                                   one

Base weight                                one

Weight                                        one (six sort’s seven pieces)

Piston                                         one

Mould                                         one

Oriented sheath                           one

Water level bubble                       one

Hopper                                        one

Clear material pole                       one

Mould bore                                  one

Material check                             one

Provide English explanation           one each
