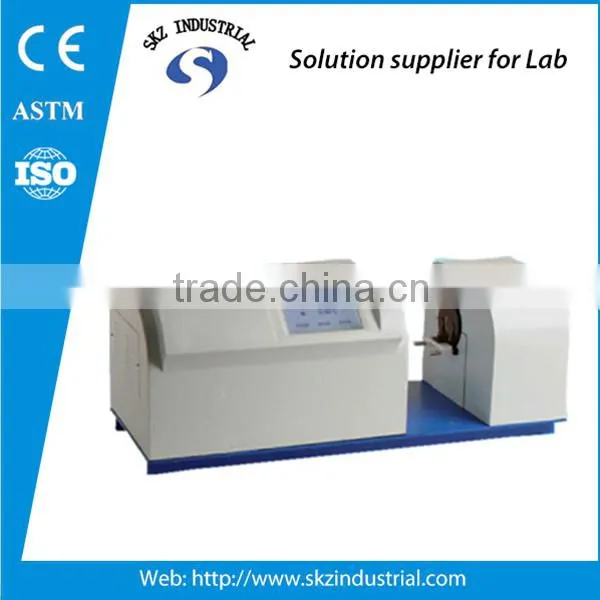

laboratory equipment direct reading computer system haze measurement
Haze meter is applicable in all transparent and semitransparent parallel level material for testing transmittance and haze degree.
Application:
Applied to determine the transmittance, haze, reflectivity of transparent, translucent parallel flat objects ( Plastic plates, sheets, plastic film, glass), and also can determine the turbidity of some liquid (Water, beverage, pharmaceutical, coloring liquid, grease)
Standards:
ASTM D1003-61 (1997): ”Standard Test Method for Haze and Luminous Transmittance of Transparent Plastics” and JISK7105.
Character:

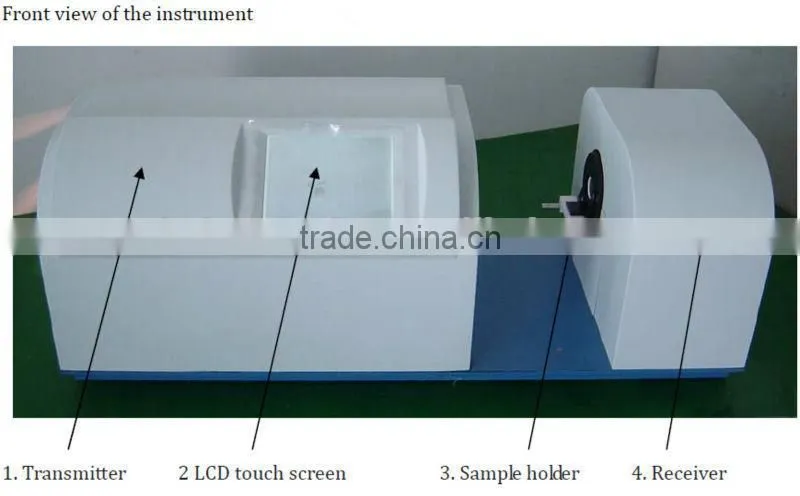

1. Receive mode: parallel illumination hemisphere scattering, photoelectric integrating sphere.
2. Touch-screen operation, with a USB interface, data storage (800 groups) and U disk storage function.
3. Equipped with specialized software, computer-controlled operation can be achieved (optional)
4. Displayed directly to: Transmittance 0.01%, 0.01% haze.
5. Using the modulator, the instrument no longer subject to the influence of ambient light, do not use the darkroom, to ensure the accuracy of the large sample measurement.
6. With film magnetic clamps, liquid sample cup, giving users great convenience.
Technical parameters:
Transmittance accuracy: ≤ 1%
Haze Accuracy:
Haze ≤ 0.5%, ≤ ± 0.1%
Haze> 0.5%, ≤ ± 0.3%
Light Repeatability: 0.5%
Haze Repeatability:
Haze ≤ 0.5%, 0.05%
Haze> 0.5%, 0.1%
Instrument Size: 740mm * 270mm * 300mm
Instrument Weight: 21kg
Power supply: 220V ± 22V 50Hz ± 1 Hz
Environmental conditions: 5 °C ~ 35 °C
Performance
1. Optical system:
1). Collimated illumination, diffuse vision, integrating sphere receiving mode
2). Sample window size: into windows: Æ25mm, out the window: Æ21mm
3). Light source: C light (6774K), A light (2856K)
4). Receiver: silicon photovoltaic cells
2. Electronic Systems:

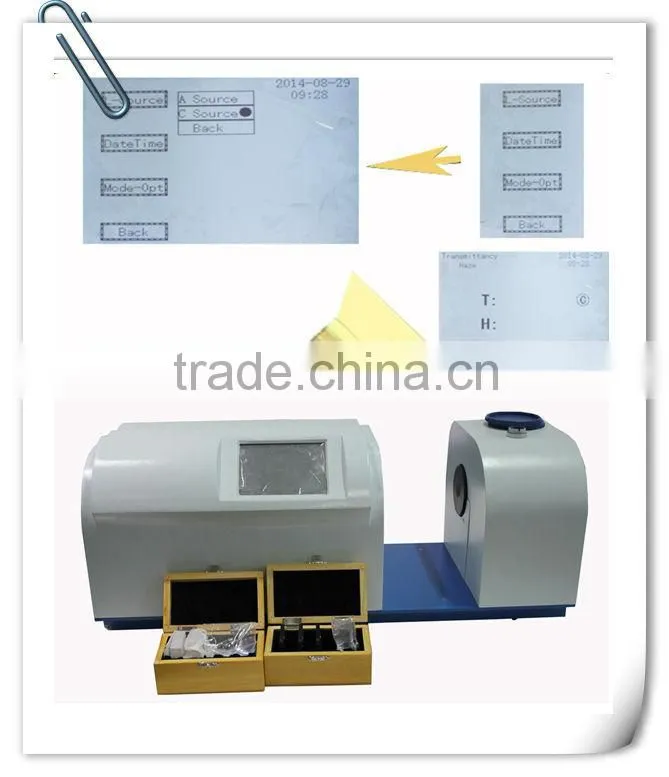

1). Large LCD touch screen
2). Minimum reading: transmittance haze 0.01% 0.01%

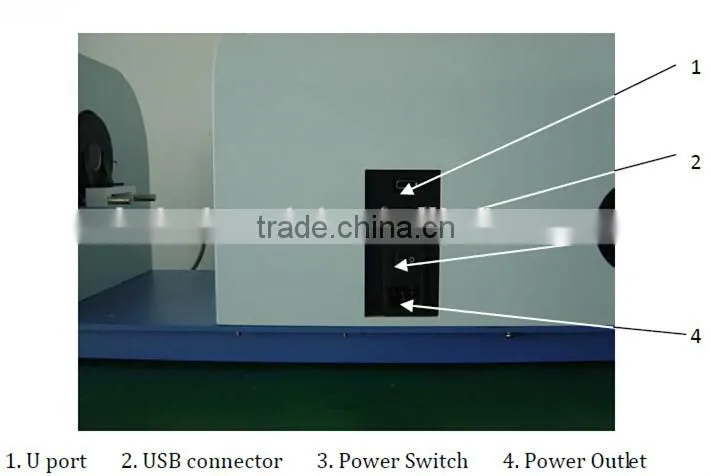

3). USB interface, U disk storage function.
3. Measuring range:
1). Transmittance 0% -100.0%
2). Haze 0% -30.00%
4. Sample size:
1). Solid Sample size: 50mm * 50mm
2). Tank size: 50mm * 50mm * 10mm
3). Film Sample size: 50mm * 50mm
5. Checkout Sample: Æ40mm * 2mm.
Pictures for reference:

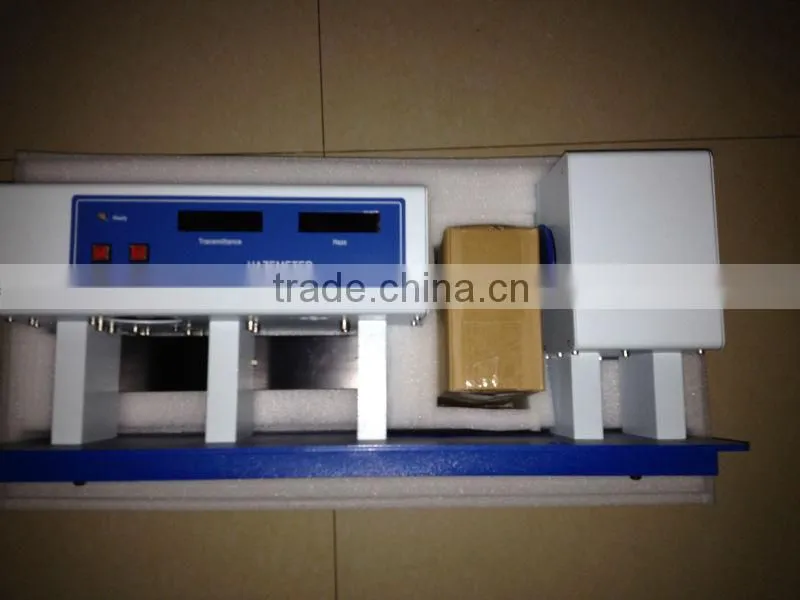

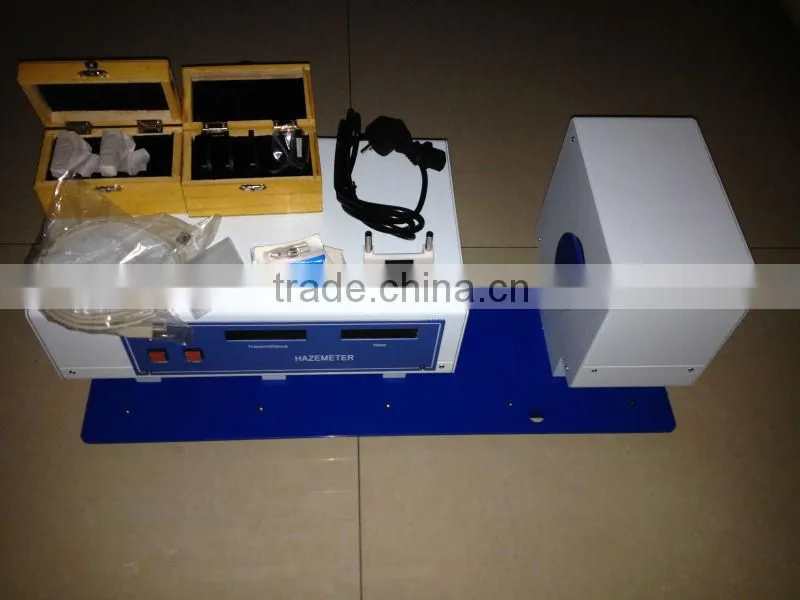

Digital Manual Haze Meter
is applicable in transparent, semitransparent parallel level material and plastic film for testing transmittance and haze degree. It is the crucial instrument for plastic and glass.
Using hand to adjust, it is suitable for middle and small enterprise. Confirms to ASTM D1003-61( 1997).
Technical parameters:
1. Sample size: 50mm×50mm
2. Clamp-house
3. Test range: Transmittance: 0-100%; Haze degree: 0-30%
4. Display: LED 3(1/2)
5. Minimum reading: 0.1%
6. Veracity: transmittance:±1.5%, haze degree: ±0.5%
7. Repetition: transmittance: 0.5%, haze degree: 0.2%
8. Power: AC220V±22V, 50HZ±1HZ

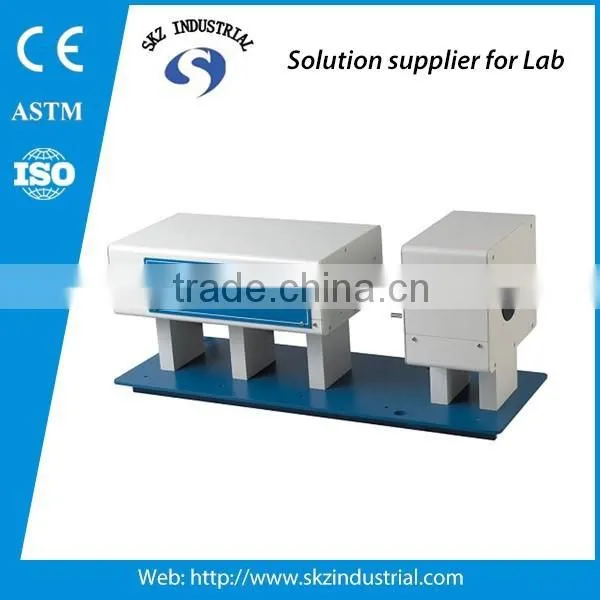

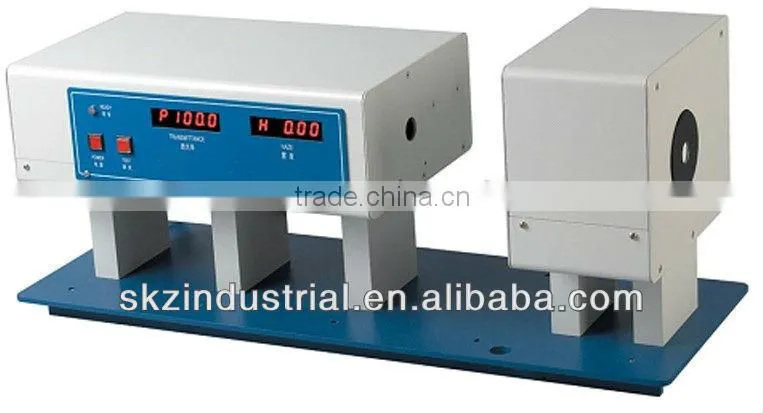

Digital Automatic Haze Meter
Haze meter is applicable in all transparent and semitransparent parallel level material for testing transmittance and haze degree.
Standards:
ASTM D1003-61 (1997): ”Standard Test Method for Haze and Luminous Transmittance of Transparent Plastics” and JISK7105.
Character:
LED the transmittance and haze degree of transparent at the same time
With USB interface to connect to PC to save data.
Technical parameters:
1. Testing range: transmittance: 0-100.0%
haze degree: 0-30.00% (absolute measurement),
30.1-100% (relative measurement)
2. Accuracy: transmittance: ≤1%
haze degree: when H≤0.5%, 0.1%; when H>0.5%, 0.3%
3. Display average value of transmittance and haze degree automatically.
4. Take over by integral ball
5. C clamp-house
6. LED display
7. Minimum reading: transmittance degree: 0.1%; haze degree: 0.01%
9. Automatically operation system, transmittance degree and haze degree can be switched automatically; calibrate automatically.
10. Warming time: 30 minutes
11. Sample size:
Solid standard sample: 50mm×50mm
Solid full-page proof: width: 380mm, thickness: 130mm
Flume size: 50mm×50mm×10mm
Film size: 50mm×50MM
