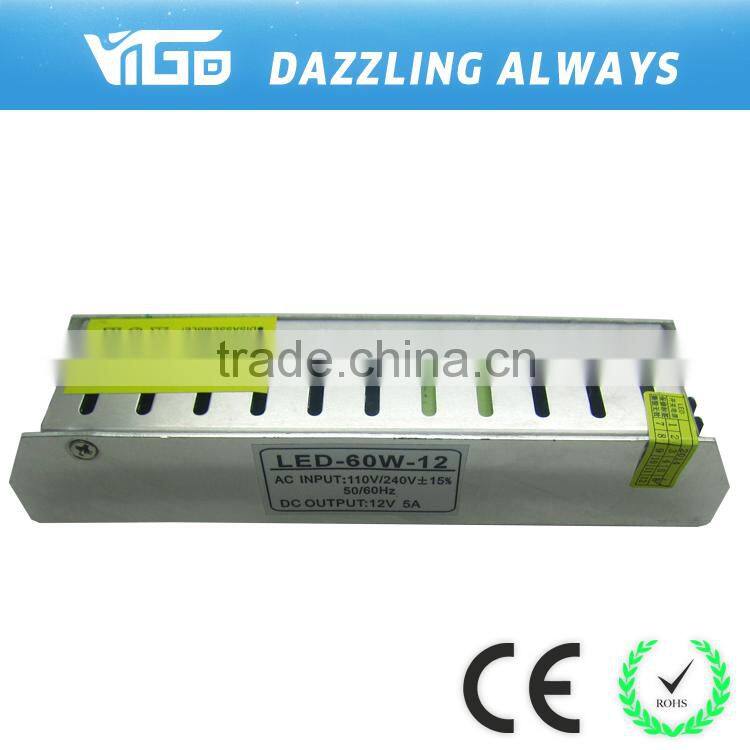

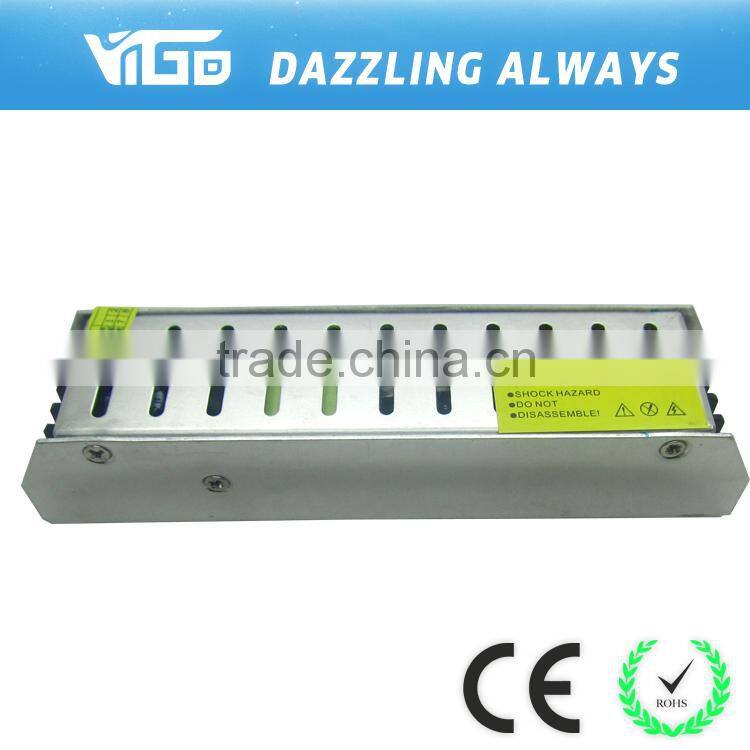

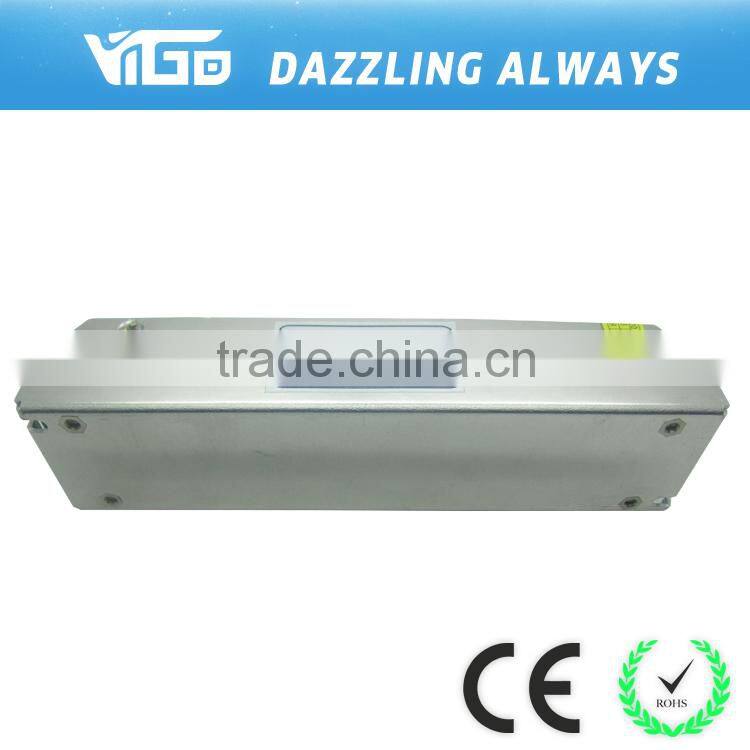

2014 China LED Driver Singe LED Power Supply 12V 5A 60W
Detailed description
switch power supplies
1 )input voltage: AC 85-265V 50/60HZ
2 )range voltage:AC 85-265V 50/60HZ
Protections
1 High voltage protection 120%
2 High current protection 120%
3 Short-circuit protection automatic recovery
4 Load regulation ±5%
Environmental requirement
1)operating temperature: 0-40%C
2)storage temperature: -20-45%C
3)operating relative humidity:5/95%RH
Advantages
2014 China LED Driver Singe LED Power Supply 12V 5A 60W
1. AC input power suitable for the world
2. Soft-start current can reduce the AC input impact efficiency
3. With short-circuit and overload protection
4. Compact size light weight
5. 100%full-load burning test
Model |
Power Adapter/Switching Mode Power Supply |
Input |
100-240Vac 50/60Hz |
Output Voltage range |
12V |
Line Regulation on voltage |
The line regulation is less than ±5% while measuring at rated load and +/-5% of input voltage changing. |
Load Regulation on voltage |
The load regulation for output voltage is less than +/-5%, at measured output load from 10% to 100% rated load |
Max Power |
60Watts: 12V5A |
|
Over-load protection Over-voltage protection Over-current protection |
|
Safe Protection Safe Certificate |
Short circuit protection Polarity Reverse Protection |
|
Safe Protection Safe Certificate Efficiency |
CE ROHs |
>80% | |
Output Connector |
5.5*2.1 5.5*2.5 3.5*1.35 4.0*1.7 2.5*0.7mm |
Power Consumption |
≤0.5W at Rated Voltage(adapter at no load) |
Ripple And Noise |
Output voltage 1%, Ripple&Noise≤120mv |
High-Voltage test |
Primary to secondary: 3 kV / 5mA 60S |
Leakage Current |
0.5mA(max) at input 240V AC |
Burn-In Test |
100% load, 5hours |
MTBF |
50,000 hours@ 25°C |
Application |
LED strip |
Warranty |
12 months |
1.Q:Are you a factory or trading company?
A:We are a factory and we are are verified by alibaba.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Shenzhen we warmly welcome to visit us!
3.Q:Can you provide a sample to me?
A:We can provide you a sample for testing.
4.Q:How does your factory do regarding quality control?
A: All our products are strictly accordance with CE and RoHS standards.
100% burn-in testing for at least 2 hours .
5. Q: Why choose us?
A: We can provide you high quality products with competitive price,
Then help you satisfy your customers and keep your customers, to make you stronger in your market.
6. Q: What is your warranty?
A: 1 years warranty will be offered .
2014 China LED Driver Singe LED Power Supply 12V 5A 60W
Why choose Yigao ?
YIGAO advertising LED, Dazzling Always
Shenzhen YIGAO Optoelectronics CO., LTD. is a high-tech company engaged in researching, manufacturing, marketing and selling LED light source. It is located in Shiyan - Shenzhen, the hometown of LED lighting industry.
With a strong experience in Producing R&D LED light source and providing a wide range of services to the customers, the company keeps the development philosophy "Integration of optoelectronic technology, focusing on the advertising industry, and expanding marketing channels. Promoting YIGAO brand”, we have won widely recognized by the customers of Advertising Logo, Light-box, Exhibition Display and so on since the foundation in 1995.
