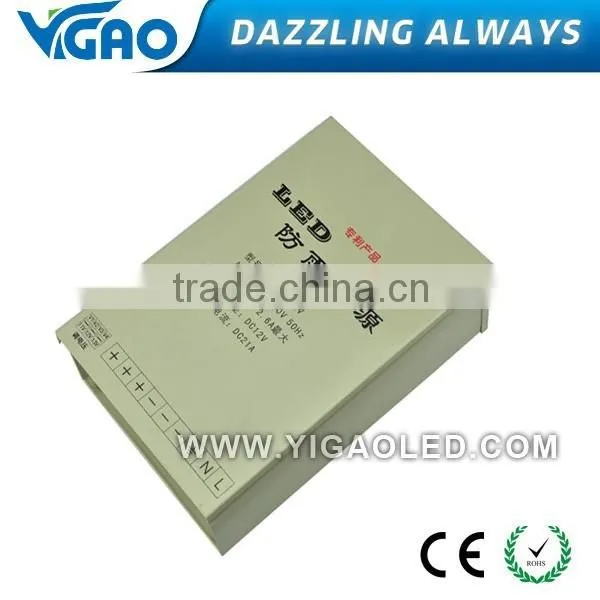

150W waterproof led light power supply
Packaging & Delivery
| Packaging Detail: | led power supply.1 pcs in a paper bag.70 pcs in a carton |
| Delivery Detail: | 15-30days |

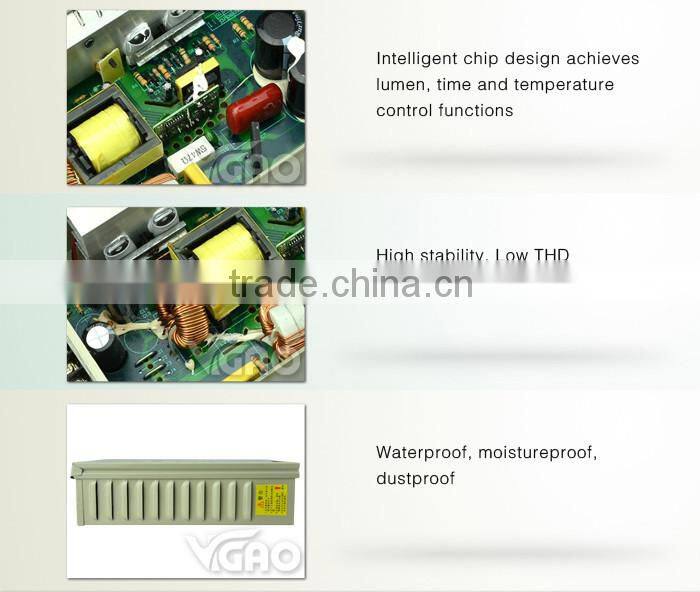

What is feature of our power supply?
1.international AC input range
2.high efficiency,low working temperature
ft- start circuit,limiting AC surge current soft-start
4.short circuit, overload, over voltage protected
pact size, light weight

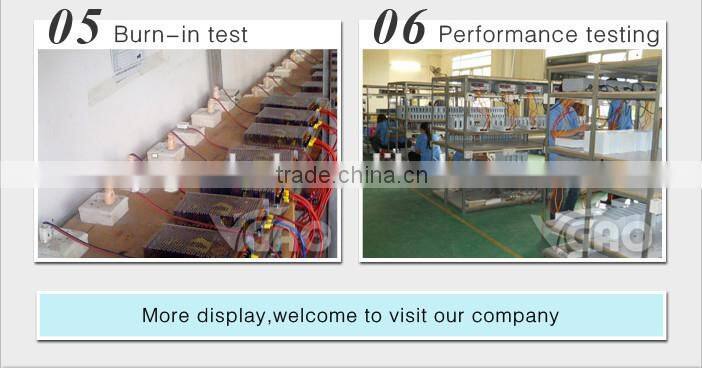

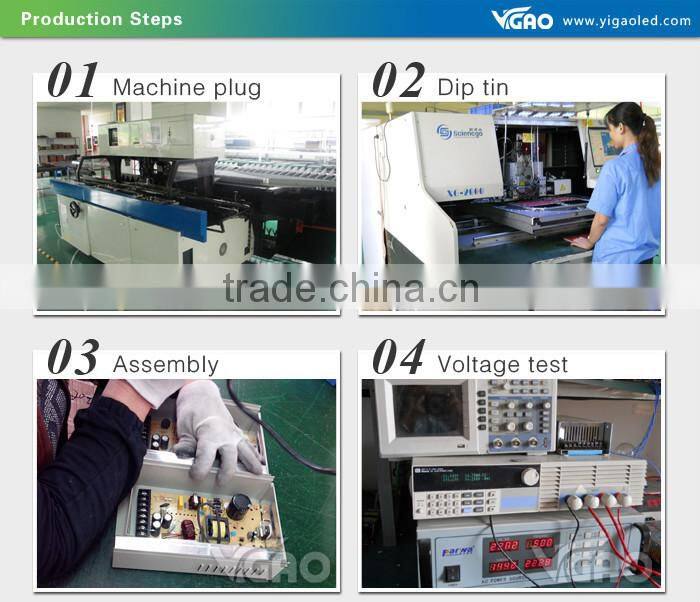

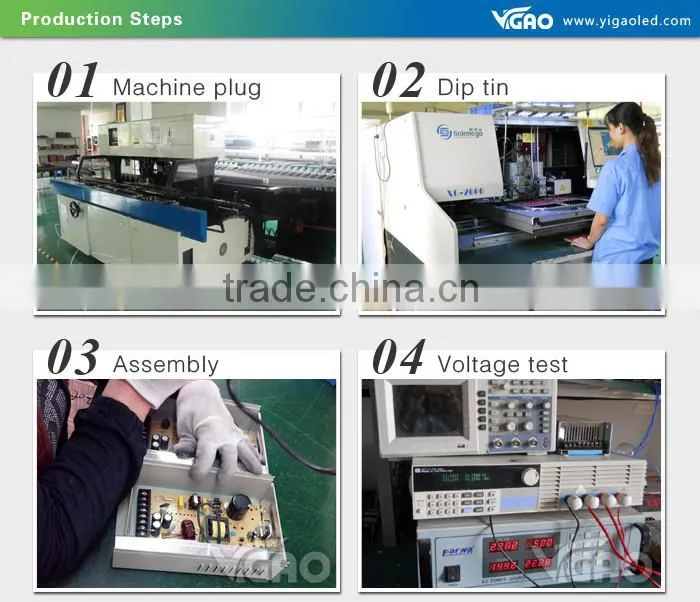

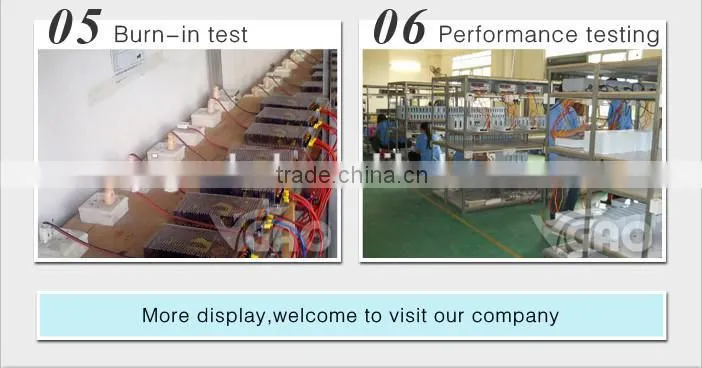

6.100% full load burn-in test
7.Built-in EMI filter, low ripple noise
8.low cost, high reliability
9.CE and ROHS approval

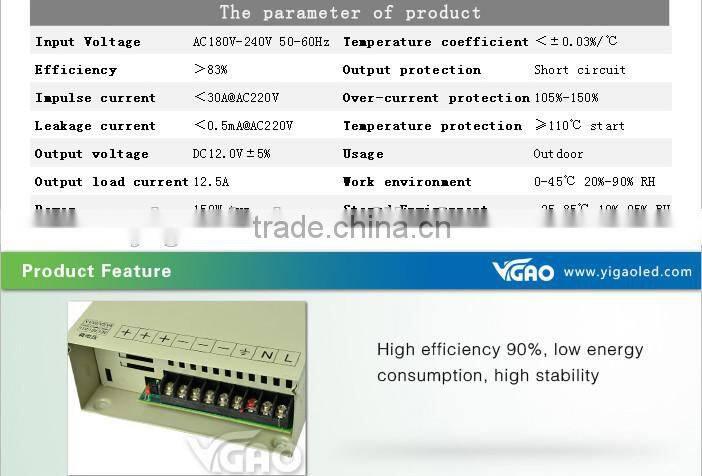

What is specification of our power supply?
| odel | S-120-5 | S-120-12 | S-60-12 | S-25-12 |
| DC output voltage | 5V | 12V | 12V | 12V |
| Output voltage tolerance | ±2% | ±1% | ±1% | ±1% |
| Rated output current | 24A | 10A | 5A | 2.1A |
| Output current range | 0-24A | 0-10A | 0-5A | 0-2.1A |
| Ripple and noise | 50mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.3% | ±0.2% |
| Load stability | ±1% | ±0.5% | ±0.3% | ±0.2% |
| DC output power | 120W | 120W | 60W | 120W |
| Efficiency | 79% | 84% | 85% | 85% |
| Output voltage adjustment range | ±10% | ±10% | ±10% | ±10% |
| AC input voltage range | 85~132VAC/170~265VAC/47~63VAC,120~370VDC | |||
| Input current | 0.6A/115V 0.35A/230V | |||
| AC impulse current | Cold-start current 15A/115V 30A/230V | |||
| Leakage current | <0.75mA/240VAC | |||
| Overload protection | 105%~150% Type,PULSING HICCUP SHUTDOWN,Reset,auto recovery | |||
| Over-voltage protection | 115%~135% rated output power | |||
| Temperature coefficient | ±0.03%°C(0~50°C) | |||
| Setup rise hold up time | 800ms,50ms,20ms/115VAC 300ms,50ms,80ms/230VAC | |||
| Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,Each axes | |||
| Withstand voltage | I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ | |||
| Working temperature and humidity | -10°C~+60°C,20~90%RH | |||
| Store temperature and humidity | -20°C~+85°C,10~95 % RH | |||
| Overall dimension | 199*98*38mm / 30pcs per carton | |||
| Weight | 0.62Kgs | |||
| Safety standards | Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved | |||
| EMC standards | EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved | |||
Why choose Yigao as consist supplier?
YIGAO advertising LED, Dazzling Always
Shenzhen YIGAO Optoelectronics CO., LTD. is a high-tech company engaged in researching, manufacturing, marketing and selling LED light source. It is located in Shiyan - Shenzhen, the hometown of LED lighting industry.
With a strong experience in Producing R&D LED light source and providing a wide range of services to the customers, the company keeps the development philosophy "Integration of optoelectronic technology, focusing on the advertising industry, and expanding marketing channels. Promoting YIGAO brand”, we have won widely recognized by the customers of Advertising Logo, Lightbox, Exhibition Display and so on since the foundation in 1995.
Advantages:
1, founded in May 20, 1995, nearly 20 years, has been committed to the advertising of photovoltaic field, to win customers at home and abroad "steady, stick, good reputation of trustworthy".
2, Since the beginning of 1999, and is currently the largest advertising equipment Chinese chain supermarkets, 15 years of close cooperation has been maintained until now
What can we do for you ?
1,Products that conform to design standard and acceptable quality level are to be supplied according to the contract's specifications.
2,To deliver according to the time and location as specified in the contract.
3,Goods are to be delivered according to form of packing; the mode of transport as stipulated in the contract
4To meet ordering party's requirement on spare parts and tools at all time. Compensation on the Violation of Agreement.
How to contact?
Contact:Sally
Alibaba ID:cn1501007629
Skype:yigao_s20
Address: 4-5th Floor, Bldg. D, Sanmin Industrial Park, Shuitian Community, Shiyan Street, Bao'an District, Shenzhen, Guangdong, China (Mainland)
Fax: 0755-22717166
24h service: +86-13352979277
Welcome to visit
