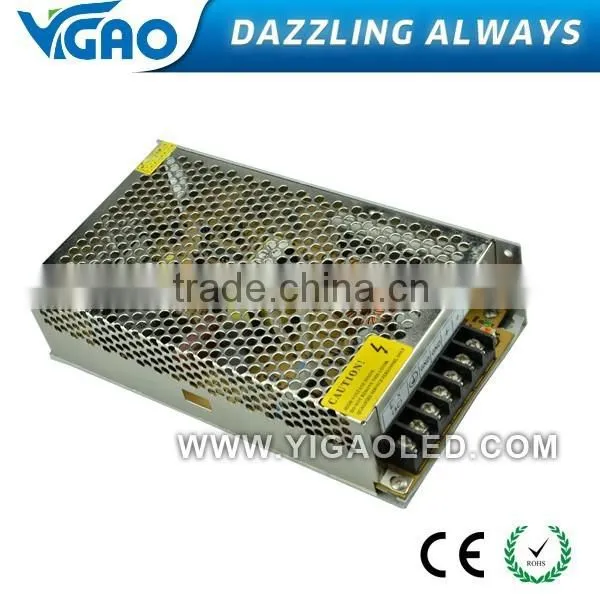

150W switch power supply for lighting box
Packaging & Delivery
| Packaging Detail: | Mini switch power supply uaual 1pcs in a box, 100pcs in a carton. |
| Delivery Detail: | 5-20 days after received your payment, also depend on your quantit |
What is specification of our power supply?
1.international AC input range
2.high efficiency,low working temperature
ft- start circuit,limiting AC surge current soft-start
4.short circuit, overload, over voltage protected
pact size, light weight
6.100% full load burn-in test
7.Built-in EMI filter, low ripple noise
8.low cost, high reliability
9.CE and ROHS approval
| MODEL | YT-AV12V60 | |||||
| OUTPUT | DC VOLTAGE | 12V | ||||
| OUTPUT POWER | 60W | |||||
| CURRENT RANGE | 0-5A | |||||
| RIPPLE & NOISE(max.) | 120mVp-p | |||||
| VOLTAGE ADJ. RANGE | ±10% | |||||
| LINE REGULATION | ±1.0% | |||||
| LOAD REGULATION | ±2.0% | |||||
| VOLTAGE TOLERANCE | ±2.0% | |||||
| SETUP,RISE TIME | 800ms, 50ms at full load | |||||
| HOLD UP TIME | 60ms | |||||
| INPUT | VOLTAGE RANGE | 110VAC or 220V AC selected | ||||
| AC CURRENT(Typ.) | 5A/ 110VAC 5A/ 220VAC | |||||
| FREQUENCY RANGE | 47-63Hz | |||||
| EFFICIENCY(Typ.) | 82% | |||||
| INRUSH CURRENT(Typ.) | COLD START 15A/115VAC 30A/230VAC | |||||
| LEAKAGE CURRENT | <3.0mA/220VAC | |||||
| PROTECTION | OVER LOAD | 115%~135% of rated power; Pulsing hicuup shut down,auto recovery | ||||
| OVER VOLTAGE | Rated output voltage of 105%~150% start overvoltage protecion | |||||
| Protection: burst mode,load of abnormal conditions removed the automatic recovery | ||||||
| SHORT CIRCUIT | voltage off and reset input for recovers | |||||
| ENVIRONMENT | WORKING TEMP. | -0°C ~ +45°C (Refer to output load derating curve) | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP.,HUMIDITY | -20°C ~ +85°C 10~95% RH | |||||
| TEMP. COEFFICIENT | ±0.05%/°C | |||||
| COOLING METHOD | BY FREE AIR CONVECTION | |||||
Note:
1. Please pay attention to the input and output port about the transformer, Do not make it mistake.
2. Please make a carefully calculation about the load the led transformer will be loaded, the load must must not over the max load of the led transformer.
3. It will be better if you can control the load within the 80% of power of the led transformer.
4. Watch out the high power on the input of the transformer, the power should be cut off before you connect the led transformer with loads.
Why choose Yigao as consist supplier?
YIGAO advertising LED, Dazzling Always
Shenzhen YIGAO Optoelectronics CO., LTD. is a high-tech company engaged in researching, manufacturing, marketing and selling LED light source. It is located in Shiyan - Shenzhen, the hometown of LED lighting industry.
With a strong experience in Producing R&D LED light source and providing a wide range of services to the customers, the company keeps the development philosophy "Integration of optoelectronic technology, focusing on the advertising industry, and expanding marketing channels. Promoting YIGAO brand”, we have won widely recognized by the customers of Advertising Logo, Lightbox, Exhibition Display and so on since the foundation in 1995.
Advantages:
1, founded in May 20, 1995, nearly 20 years, has been committed to the advertising of photovoltaic field, to win customers at home and abroad "steady, stick, good reputation of trustworthy".
2, Since the beginning of 1999, and is currently the largest advertising equipment Chinese chain supermarkets, 15 years of close cooperation has been maintained until now
What can we do for you ?
1,Products that conform to design standard and acceptable quality level are to be supplied according to the contract's specifications.
2,To deliver according to the time and location as specified in the contract.
3,Goods are to be delivered according to form of packing; the mode of transport as stipulated in the contract
4To meet ordering party's requirement on spare parts and tools at all time. Compensation on the Violation of Agreement.
How to contact?
Contact:Sally
Alibaba ID:cn1501007629
Skype:yigao_s20
Address: 4-5th Floor, Bldg. D, Sanmin Industrial Park, Shuitian Community, Shiyan Street, Bao'an District, Shenzhen, Guangdong, China (Mainland)
Fax: 0755-22717166
24h service: +86-13352979277
Welcome to visit
