T1000s Ucs 1903 Led Controller With sd Card Factory Quality Choice

T1000s Ucs 1903 Led Controller With sd Card Factory Quality Choice thumbnail-1
T1000s Ucs 1903 Led Controller With sd Card Factory Quality Choice thumbnail-2
T1000s Ucs 1903 Led Controller With sd Card Factory Quality Choice thumbnail-3
T1000s Ucs 1903 Led Controller With sd Card Factory Quality Choice photo-1
T1000s Ucs 1903 Led Controller With sd Card Factory Quality Choice photo-2
T1000s Ucs 1903 Led Controller With sd Card Factory Quality Choice photo-3
US$ 24.2 - 29.2 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
YIGAO
Model Number:
T1000s
Contact Supplier Request Quote Chat Now
Shenzhen Guangjiang Yigao AD. LED Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name YIGAO
Model Number T1000s
Type Manual Switch
Max. Load Power 500W
Voltage 220V

T1000s ucs 1903 led controller with sd card factory

From YiGao company, the China LED factory since 1995



1.32—256 Gray,Support software Gamma correction.

2.Support the rules and special-shaped handle.

3.Single-port output,can support 2048 lights.

4.Off-line(SD Card) control, play back content stored in the SD card.

5.T-1000S store a maximum of 16 programs,copy multiple files to the SD card in order,

after formatting the SD card as “FAT” format.

6.The program must be named in orders . Ex. :00_1.led, 01_1.led, 02_1.led.

7.Compatible with single line or double line chips.

NOTE:

1. When T-1000S controller less than 512 pixels the frame rate can reach 30fps. When T-1000S control more than 512 pixels the frame rate will slow down automatically.

2. T-1000S must use the new software LedEdit 2012.

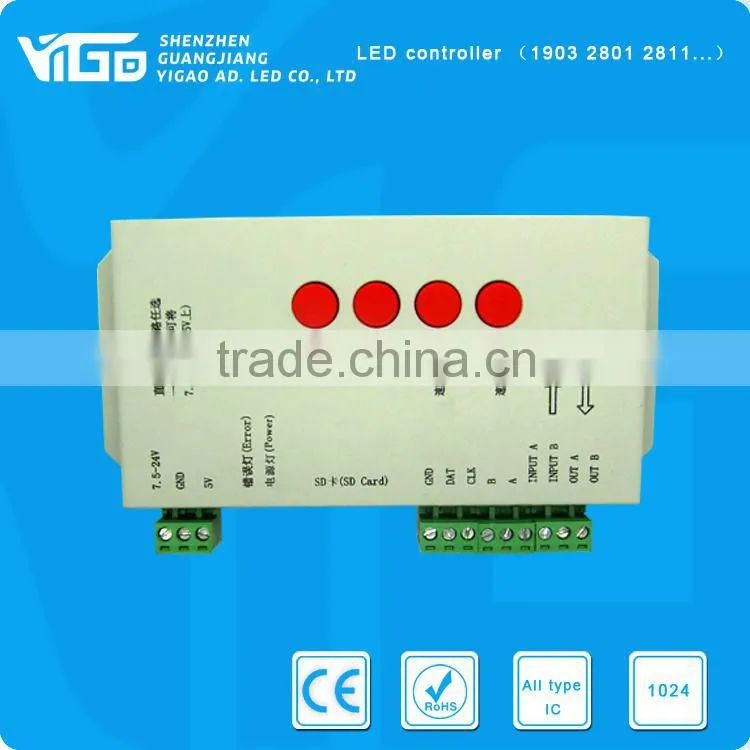

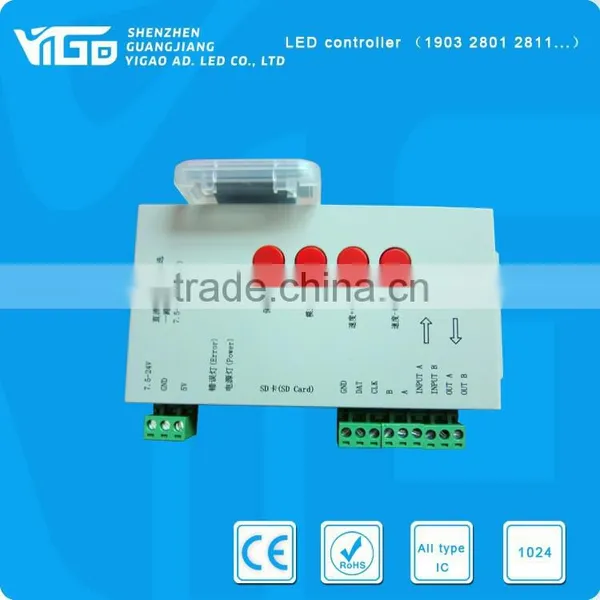

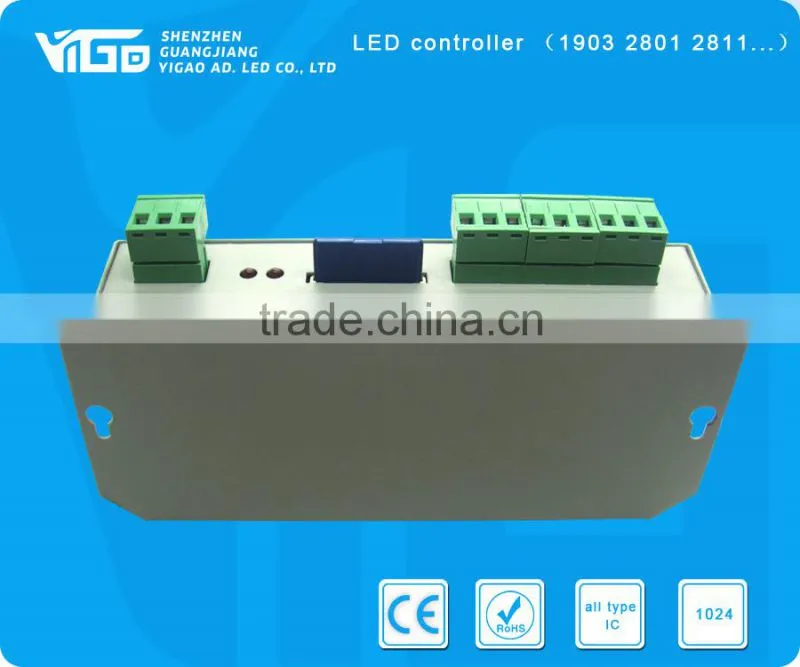

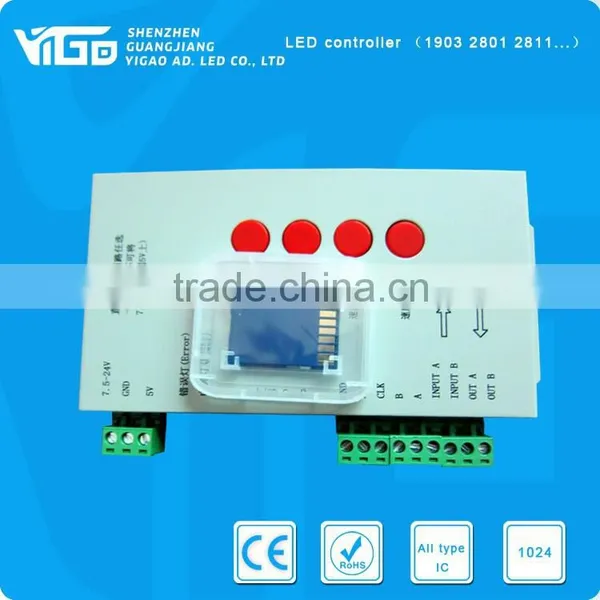

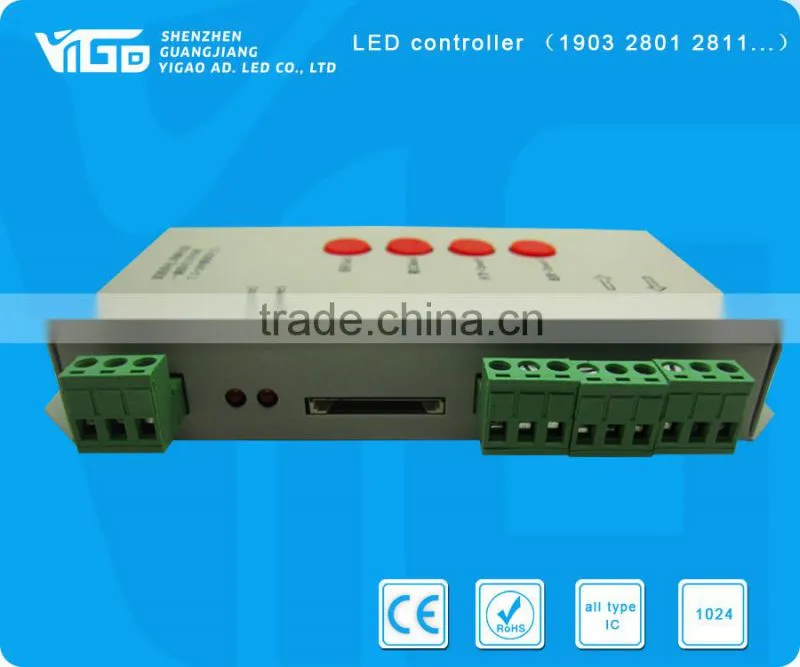

T1000s led controller with sd card product photo show



T1000s ucs 1903 led controller with sd card factory





T1000s ucs 1903 led controller with sd card factory



T1000s ucs 1903 led controller with sd card factory







T1000s ucs 1903 led controller with sd card factory

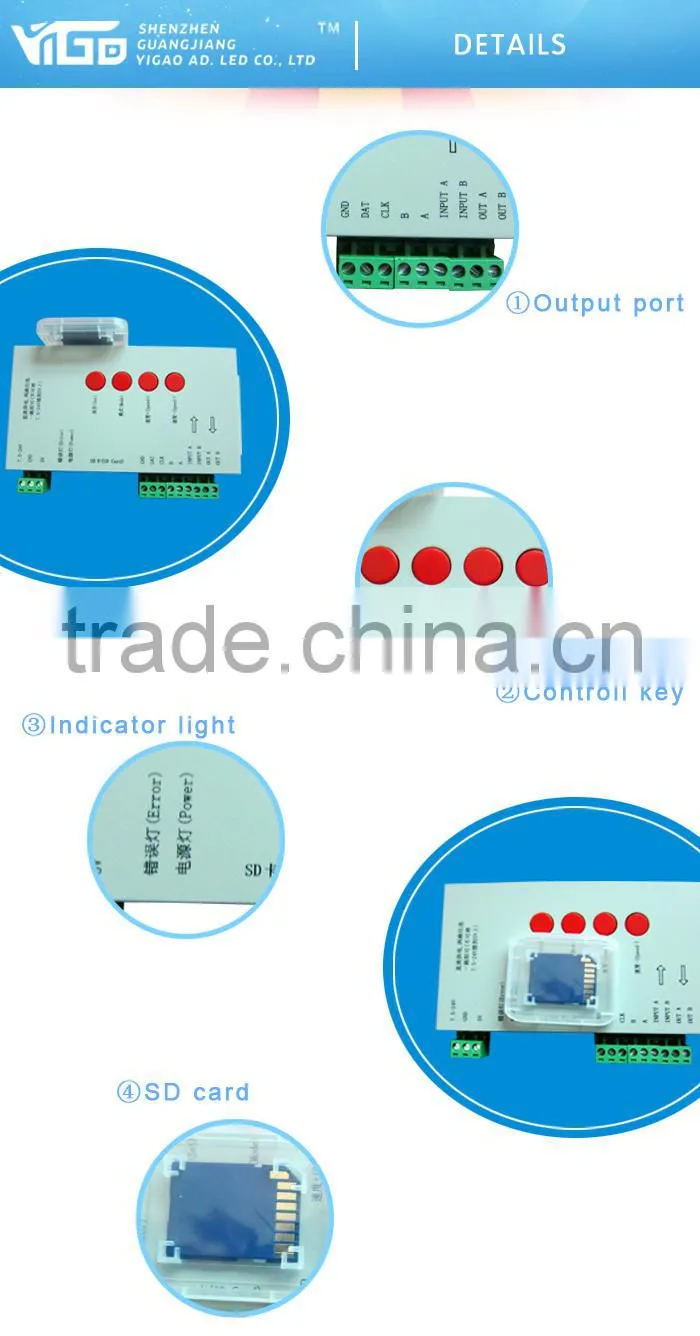

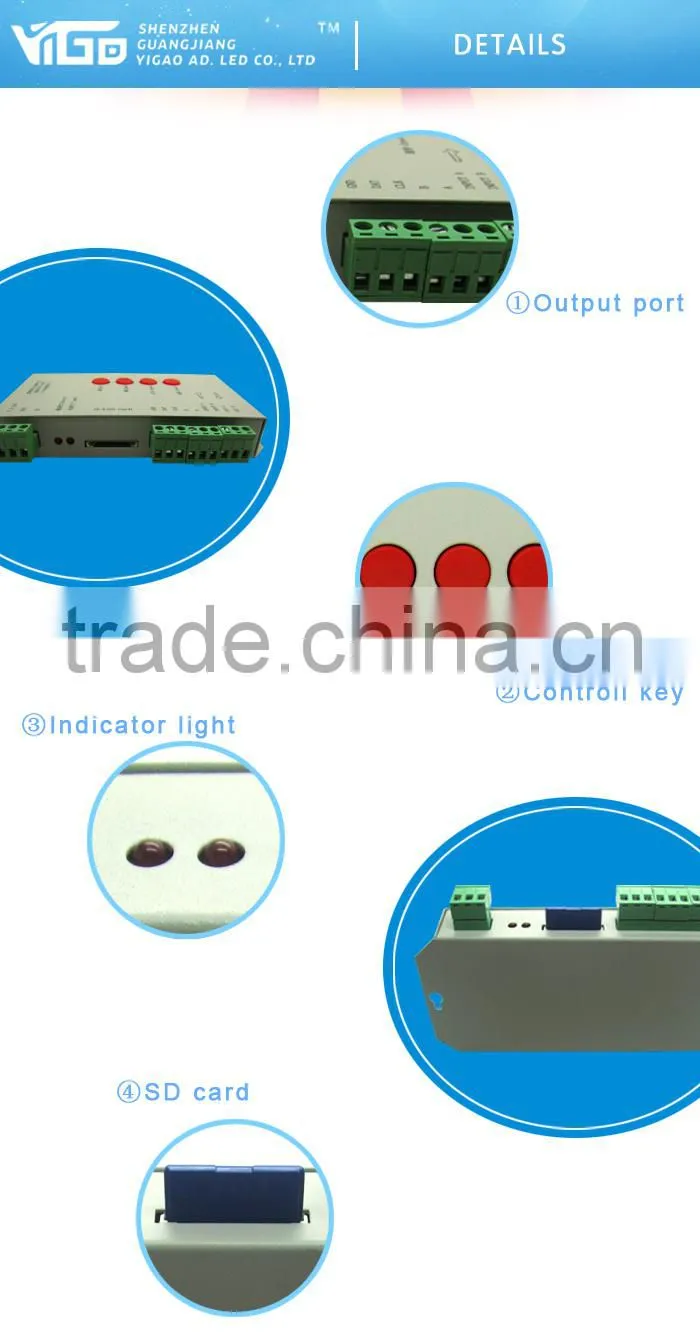

 led controller with sd card Product details

T1000s ucs 1903 led controller with sd card factoryT1000s ucs 1903 led controller with sd card factory

 led controller with sd card definition of buttons:


Buttons

Meaning

SAVE SET

Save Settings (to save current settings file and the playback speed )

MODE

Change programs

SPEED+

Speed up

Press speed+ and speed- on the same time the program will play circularly.

SPEED-

Speed down







DC5V

+5V power input

GND

Power GND input

7.5-24V

+7.5-24V power input

POWER

Power indicator

ERROR

Error indicator

SD CARD

SD card slot







    TTL signal(245/spi signal):               RS485 signal.



CLK

Clock signal

B

Signal A / DMX+

DAT

Data signal

A

Signal B / DMX-

GND

Signal ground

GND

Signal ground











NOTE:For the TTL(SPI) signal, the controller signal ground must connect to the LED ground directly.







T1000s ucs 1903 led controller with sd card factory

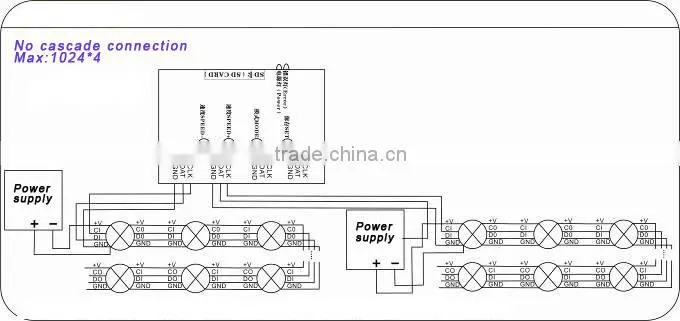

 led controller with sd card Connecting

T1000s ucs 1903 led controller with sd card factory



1.Multiple T-1000S controllers can be cascaded together and work synchronous.

2.T-1000S one TTL(SPI) signal and one RS485 signal port output,can control 2048 pixels;

3.When the chip for LED is single line chip just with data, then just need to be connected with DAT and GND of the controller.

If the chip for LED is double line chip with DAT and CLK, then need to be connected with DAT, CLK, and GND of the controller.

4.If you need to use RS485 signal you need to connect controller A with LED A (DMX+), controller B with LED B(DMX-),

5.When you need to built a new project the controller type for the software is:T-1000-IC model.



T1000s ucs 1903 led controller with sd card factory
  led controller with sd card certifications
T1000s ucs 1903 led controller with sd card factoryT1000s ucs 1903 led controller with sd card factory



T1000s ucs 1903 led controller with sd card factory
