T1000s Ws2801 Led Controller With sd CardNegotiableMOQ: 1 Piece -
T1000s Ws2801 Led Driver With sd CardNegotiableMOQ: 1 Piece
-
High Quality LED RGB Touch Controller FactoryUS$ 14.6 - 16.7MOQ: 1 Piece
-
LED Touch Controller From Shenzhen GuangjiangyigaoUS$ 14.2 - 16.7MOQ: 1 Piece
-
LED Light Touch Controller ManufacturerUS$ 14.2 - 16.7MOQ: 1 Piece
Specifications
T1000s ws2801 led driver with sd card1.32-256 Gray.
2.can support 2048 lights
py multiple files to the SD card
4.2years
T1000s ws2801 led driver with sd card
From YiGao company, the China LED factory since 1995
1.32—256 Gray,Support software Gamma correction.
2.Support the rules and special-shaped handle.
3.Single-port output,can support 2048 lights.
4.Off-line(SD Card) control, play back content stored in the SD card.
5.T-1000S store a maximum of 16 programs,copy multiple files to the SD card in order,
after formatting the SD card as “FAT” format.
6.The program must be named in orders . Ex. :00_1.led, 01_1.led, 02_1.led.
7.Compatible with single line or double line chips.
NOTE:
1. When T-1000S controller less than 512 pixels the frame rate can reach 30fps. When T-1000S control more than 512 pixels the frame rate will slow down automatically.
2. T-1000S must use the new software LedEdit 2012.

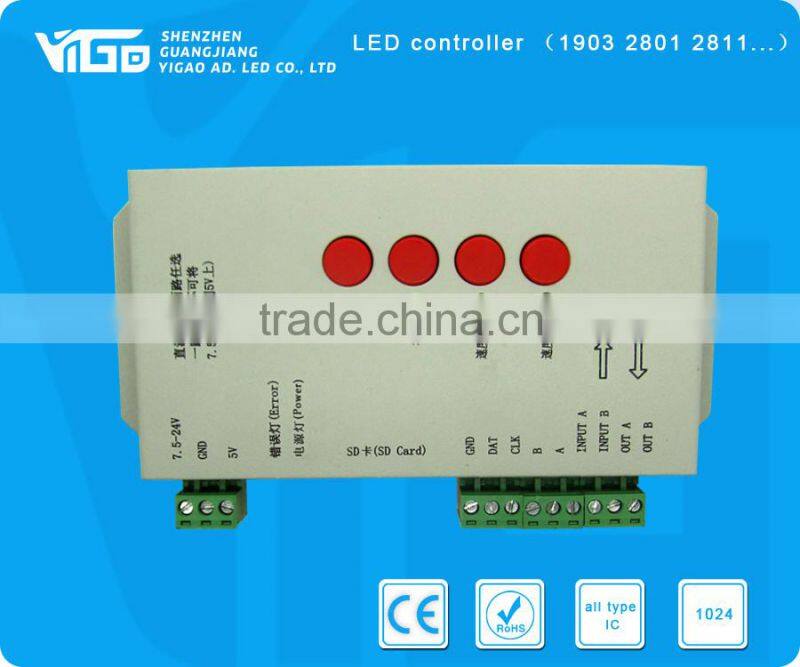

T1000s led driver with sd card product photo show
Buttons | Meaning | |
SAVE SET | Save Settings (to save current settings file and the playback speed ) | |
MODE | Change programs | |
SPEED+ | Speed up | Press speed+ and speed- on the same time the program will play circularly. |
SPEED- | Speed down | |
DC5V | +5V power input |
GND | Power GND input |
7.5-24V | +7.5-24V power input |
POWER | Power indicator |
ERROR | Error indicator |
SD CARD | SD card slot |
TTL signal(245/spi signal): RS485 signal.
CLK | Clock signal | B | Signal A / DMX+ |
DAT | Data signal | A | Signal B / DMX- |
GND | Signal ground | GND | Signal ground |
NOTE:For the TTL(SPI) signal, the controller signal ground must connect to the LED ground directly.
1.Multiple T-1000S controllers can be cascaded together and work synchronous.
2.T-1000S one TTL(SPI) signal and one RS485 signal port output,can control 2048 pixels;
3.When the chip for LED is single line chip just with data, then just need to be connected with DAT and GND of the controller. If the chip for LED is double line chip with DAT and CLK, then need to be connected with DAT, CLK, and GND of the controller.
4.If you need to use RS485 signal you need to connect controller A with LED A (DMX+), controller B with LED B(DMX-),
5.When you need to built a new project the controller type for the software is:T-1000-IC model.
