Help Center1024 Pixel Rgb Led Controller With SD Card (programmable) for Small ad Letter
Related Products
-
T1000 Multi Color Led Pixel Controller With 1024 Pixel Dc5vUS$ 18.8 - 23MOQ: 1 Piece -
2048 Pixels WS2801/2811/ucs1903 Digital sd Card Rgb New ControllerUS$ 27.8 - 33MOQ: 1 Piece
-
T1000s Ucs 1903 Led Controller With sd Card Factory Quality ChoiceUS$ 24.2 - 29.2MOQ: 1 Piece
-
T1000s Ws2801 Ws2811 Ucs1903led Driver With sd CardUS$ 25 - 33MOQ: 1 Piece
-
T1000s Ws2811 Led Controller With sd CardNegotiableMOQ: 1 Piece
Specifications
1024 Pixels rgb Led Controller1.DC5V~24V
2.support 1024 pixels
3.Off-line control
4.warranty:3year
T1000 multi color led pixel controller with 1024 pixel dc5v
From YiGao company, the China LED factory since 1995
1.32—256 Gray,Support software Gamma correction.
2.Support the rules and special-shaped handle.
3.Single-port output,can support 2048 lights.
4.Off-line(SD Card) control, play back content stored in the SD card.
5.T-1000S store a maximum of 16 programs,copy multiple files to the SD card in order,
after formatting the SD card as “FAT” format.
6.The program must be named in orders . Ex. :00_1.led, 01_1.led, 02_1.led.
7.Compatible with single line or double line chips.
NOTE:
1. When T-1000A controller less than 512 pixels the frame rate can reach 30fps. When T-1000S control more than 512 pixels the frame rate will slow down automatically.
2. T-1000A must use the new software LedEdit 2012.

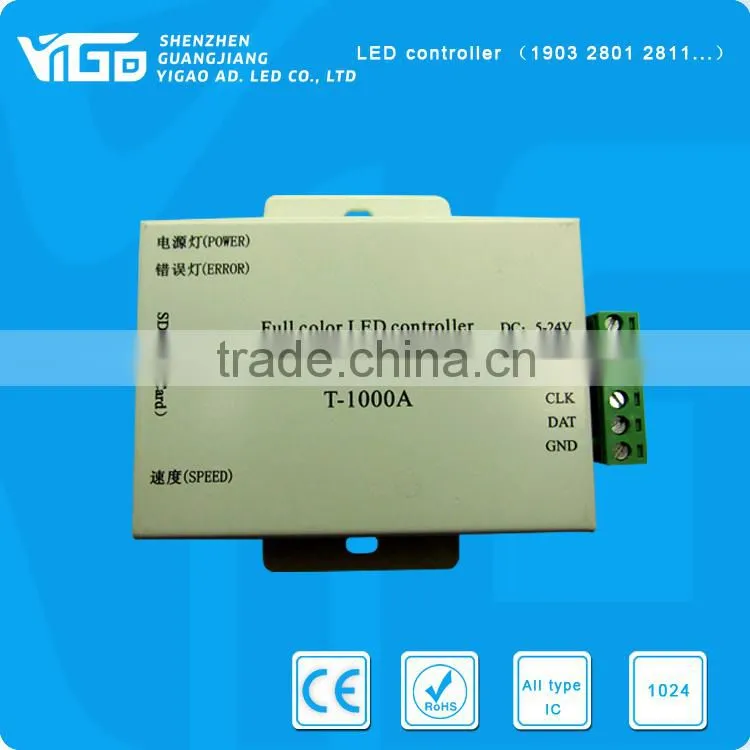

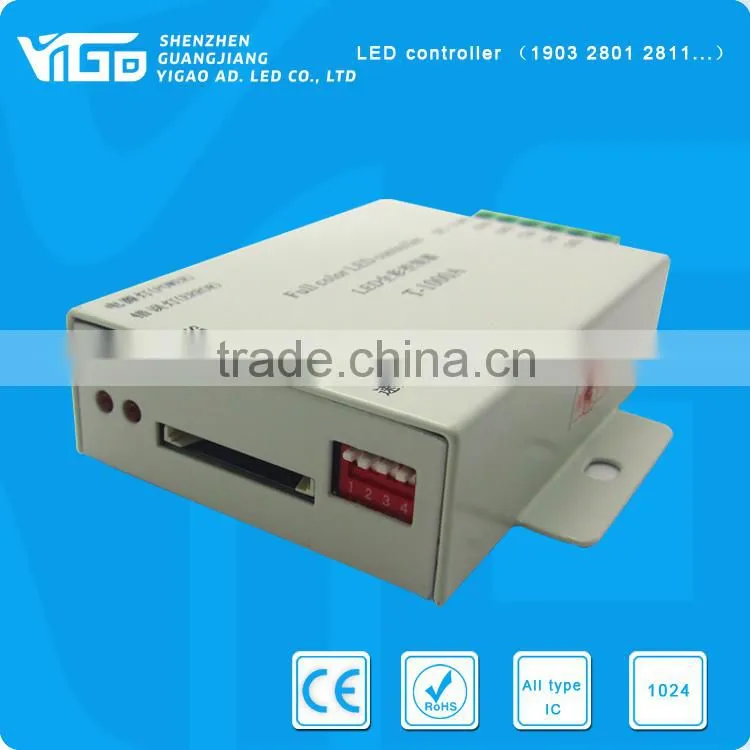

T1000a led driver with sd card product photo show

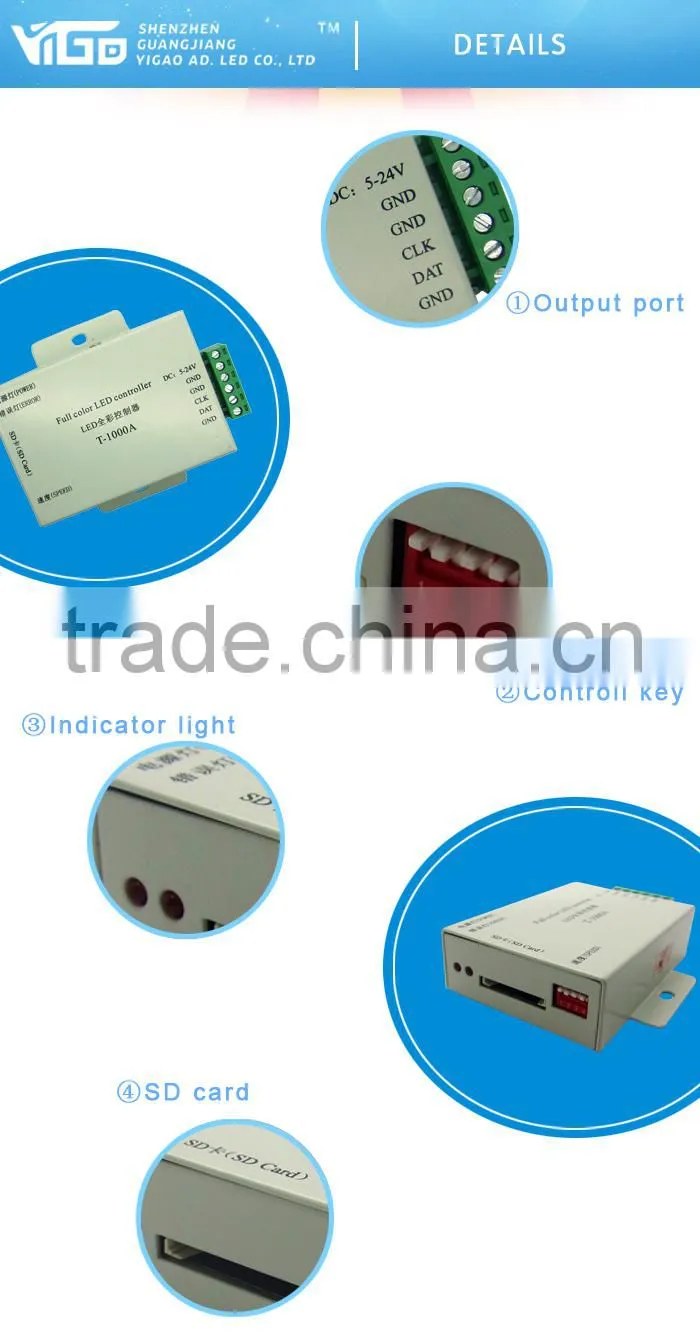

Definition of printing:
POWER |
POWER LIGHT |
DC5V |
Power adapter DC 5 V input |
STATUS |
Status light |
AC |
Power adapter AC 5 V input |
SD CARD |
SD card slot |
AC |
|
SPEED |
Adjust speed |
CLK |
Clock signal |
|
|
DAT |
Data signal |
|
|
GND |
Signal ground |
|
|
GND |
NOTE:For the TTL(SPI) signal, the controller signal ground must connect to the LED ground directly.
1.T-1000A controller can only be a single use.
2.T-1000A is Single-port output,Can control up to 1024 lamp.
3.When the chip for LED is single line chip just with data, then just need to be connected with DAT and GND of the controller. If the chip
for LED is double line chip with DAT and CLK, then need to be connected with DAT, CLK, and GND of the controller.
4. If you need to control a new IC type by the controller, software code mode is T-1000-IC model
