172*51mm Round Shape 220V - 240V AC Motor Fan

172*51mm Round Shape 220V - 240V AC Motor Fan thumbnail-1
172*51mm Round Shape 220V - 240V AC Motor Fan thumbnail-2
172*51mm Round Shape 220V - 240V AC Motor Fan thumbnail-3
172*51mm Round Shape 220V - 240V AC Motor Fan photo-1

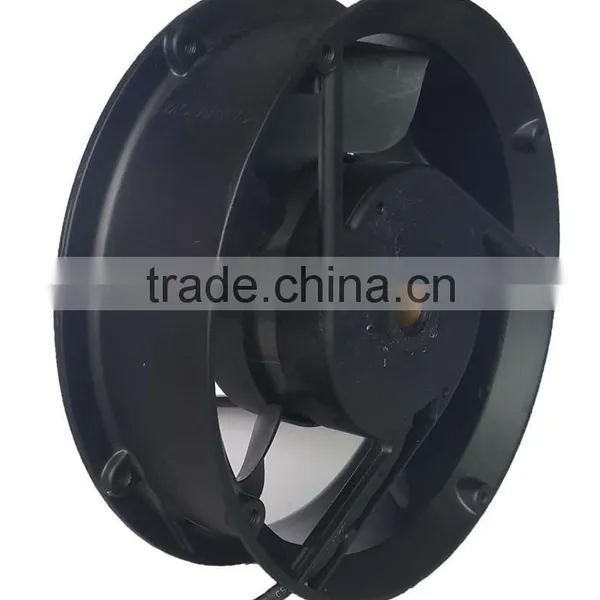

172*51mm Round Shape 220V - 240V AC Motor Fan photo-2

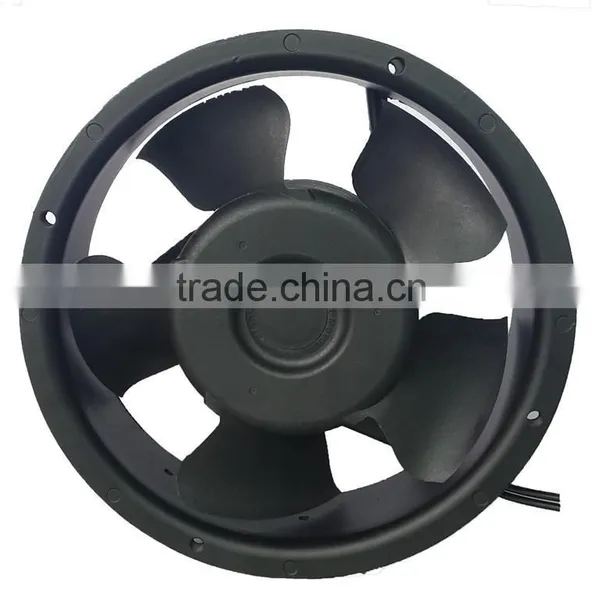

172*51mm Round Shape 220V - 240V AC Motor Fan photo-3
US$ 6 - 15 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
MX/OEM/ODM
Model Number:
MX17251ABH22
Type:
Synchronous Motor
Contact Supplier Request Quote Chat Now
Shenzhen Topfan Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MX/OEM/ODM
Model Number MX17251ABH22
Type Synchronous Motor
Frequency 50/60Hz, 50/60hz
Output Power 44/35W
Protect Feature Waterproof
Phase Three-phase
Certification CCC, CE, ROHS, UL
AC Voltage 208-230 / 240 V
Place of Origin Guangdong, China
Efficiency IE 1

172*51mm Round Shape 220V - 240V AC Motor Fan





Applications:


Topfan’s fan products are utilized by all type of machines which required heat reduction systems,
such as UPS systems; Telecommunication equipments; Ventilating systems; LED Digital signage; Disports/exercise equipments; Medical instruments.

Description:

  • 110V-120V , 220V-240V AC FAN, used for cooling and ventilation.
  • Frame: Aluminum ADC-12, Painted Black
  • Blade:metal
  • Stator& Rotor: Silicon steel
  • Magnet Wires: Copper 1 PEW
  • Bobbin: PA-66 UL 94 V-0
  • Bearing Type: Ball Bearing


Environmental Specification:

Item

Specification/Condition

01

Operating Temp. Range

Temperature:-20℃~75℃
Humidity:20%~85%RH

02

Storage Temperature

Temperature:-30℃~140℃
Humidity:20%~95%RH

03

Life

50000H



Main Materials/Parts Specification:

(Item

Specification

01

Blade

(PBT) PBT+15%GF

02

Frame

Aluminum ADC-12,Painted Black

03

Stator& Rotor

Silicon stee

04

Magnet Wires

Copper 2 UEW

05

Bobbin

PA-66 UL 94 V-0





Model:

Size

(mm)

 Model Beaing system Rated voltage   (v)

Freq

(HZ)

 Current amp    (Amp) Rated Input Power  Watt Speed (rpm)

Air Flow

(CFM)

 Air Flow (m3/mim)

Max Static Pressure

(Inch-H2o)

 Noise Leve (dB-A)

Weight

(g)
172*51 M145CA1H Ball 110/120 50/60

0.44/

0.46

 30/37

2500/

2100

 200/187 5.4/6.0 0.55/0.5 53/48 900
  M145CA2H Ball 220/240 50/60

0.26/

0.28

 44/35

2500/

2200

 200/190 5.4/6.0 0.55/0.5 53/48 900
  M145CA3H Ball 380/400 50/60

0.15/

0.13

 38/35

2500/

2700

 200/190 5.4/6.0 0.55/0.5 53/48 900



Competitive Advantage:



*Qualified, cost effective and easily operated

*Small in shape, have compact structure

*UL, CE, Rohs, CUL, CCC

* Competitive Pricing

* Keep Investing and Developing In New Products

* The Most Advanced Testing and Measuring Equipment

* On-Time Delivery











More detail information, please contact with me as soon as possible .
