Exhaust AC Fan Motor 28028080mm / 11 Inch 220V/240V AC Motor Cooling Fan

FOB Price

USD $10 - $15 / Piece

500 Pieces(Min.Order)

Supply Ability 20000 Piece / Pieces per Month
Port shenzhen

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Electric Current Type:	AC	Mounting:	Other, cooling fan	Blade Material:	Stainless Steel
Place of Origin:	Guangdong, China	Brand Name:	OEM	Model Number:	M255RA2H-7P
Voltage:	220/240v, 110-120V , 220 - 240V , 380V - 420V	Power:	120W	Air Volume:	1341/1512CMF
Speed:	2400/2650rpm, 2400/2650RPM	Certification:	CE, ROHS

Product Description

Exhaust AC Fan Motor 280*280*80mm / 11 Inch 220V/240V AC Motor Cooling Fan

280×280×80mm AC fan, low noise and long life expectancy, are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Description:

220V AC FAN 280mm ,used for cooling and ventilation.
Frame: Aluminum ADC-12,Painted Black
Blade:metal
Stator& Rotor:Silicon steel
Magnet Wires:Copper 1 PEW
Bobbin:PA-66 UL 94 V-0
Bearing Type:Ball Bearing
Packaging Detail: white/color box, blister package
Life Expectancy: Dual Ball Bearing: 50000 hours
Sleeve Bearing: 20000-25000 hours
Standard: Fully CE, ROHS Approved

Specification :

Model	M255RA2H-7P
Outline Dimension	28028080mm
Rated Voltage	AC 220V
Voltage Range	AC 220V~240V
Frequency	50/60Hz
Rated Current	1.2A±10%
Power Consumption	120W±10%
Speed	2500RPM±10%
Max. Air flow	1512CFM±10%
Max. Static Pressure	154Inch-H2O
Noise Level	70dB(A)
Weight	2800g
Dielectric Strength	1800V/0.5mA/3s
Temperature Test of Run	t=<70K
Locked Rotor Protection	t=<130K
Environmental Specification	Operating Temperature:-20℃~85℃ Operating Humidity:20%~85%RH Storage Temperature:-30℃~140℃ Storage Humidity:20%~95%RH

Model	Beaing system	Rated voltage (v)	Freq (HZ)	Current amp (Amp)	Rated Input Power Watt	Speed (rpm)	Air Flow (CFM)	Air Flow (m³/mim)	Max Static Pressure (Inch-H2o)	Noise Leve (dB-A)	Weight (g)
M255RA1H-7P	Ball	110/120	50/60	1.2	120	2400/ 2650	1341/ 1512	37.9/42.8	136.7/154.1	65/70	2800
M255RA2H-7P	Ball	220/240	50/60	0.55	120	2400/ 2650	1341/ 1512	37.9/42.8	136.7/154.1	65/70	2800
M255RA3H-7P	Ball	380/420	50/60	0.36	120	2400/ 2650	1341/ 1512	37.9/42.8	136.7/154.1	65/70	2800
M255RA3H-7P-3	Ball	380/420	50/60	0.32	120	2400/ 2650	1341/ 1512	37.9/42.8	136.7/154.1	65/70	2800

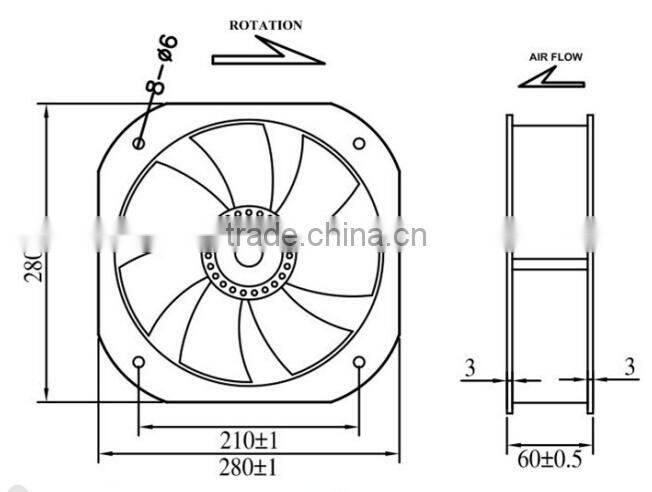

Dimension:

Our Services

More detail information, please contact with me as soon as possible ! Thanks.
