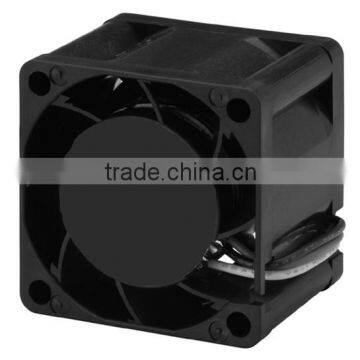

1.5 inch General DC Fan / 36x36x28mm DC Radiator Cooling Fan 12v
Applications:
Topfan’s fan products are utilized by all type of machines which required heat reduction systems,
such as UPS systems; Telecommunication equipments; Ventilating systems; LED Digital signage; Disports/exercise equipments; Medical instruments.
Description:
1. Brushless DC Fan, Axial DC Fan, DC Motor Fan, Cheap Fan, Portable Fan, CPU Fan, Computer case fan, laptop fan, PWM Fan, FG cooling fan, LED Digital signage
2. Various Size
3. High speed , Middle speed, Low speed
4. 12V DC
5. Axially-grooved Bearing
6. Terminal or Lead wire
7. Waterproof explosion proof or high proof are can be satisfied.

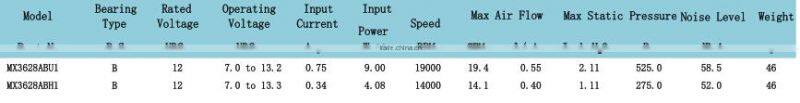

A: Specifications:
Bearing Type-------------Axially-grooved Bearing
Frame and Impeller--------L.C.P.(UL94V-0),IP57
Voltage-----------------DC 12V
Temperature range-------- -10℃ to +80℃
Expected Life------------ 50000 hours
Insulation Resistance------10MEGA.Ω Min. at 500VDC(between frame and (+) terminal)
Dielectric Strength--------5mA Max. at 500VAC,60Hz,One Minute(between frame and (+) terminal)
Application:
