dc Ventilation Fan 80x80x25mm / dc Fan for Air Condition

dc Ventilation Fan 80x80x25mm / dc Fan for Air Condition thumbnail-1
dc Ventilation Fan 80x80x25mm / dc Fan for Air Condition thumbnail-2
dc Ventilation Fan 80x80x25mm / dc Fan for Air Condition thumbnail-3
dc Ventilation Fan 80x80x25mm / dc Fan for Air Condition photo-1

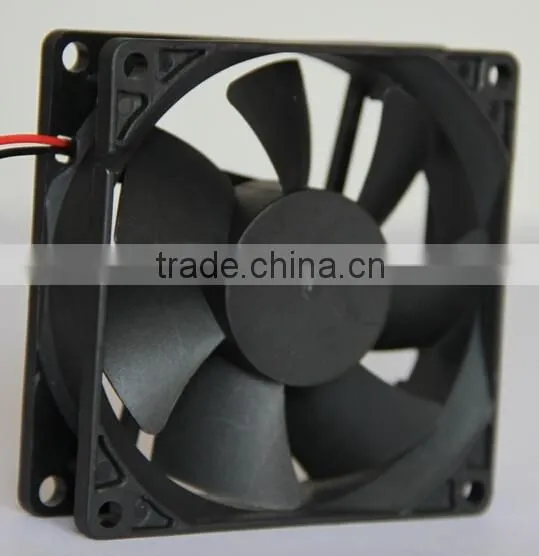

dc Ventilation Fan 80x80x25mm / dc Fan for Air Condition photo-2

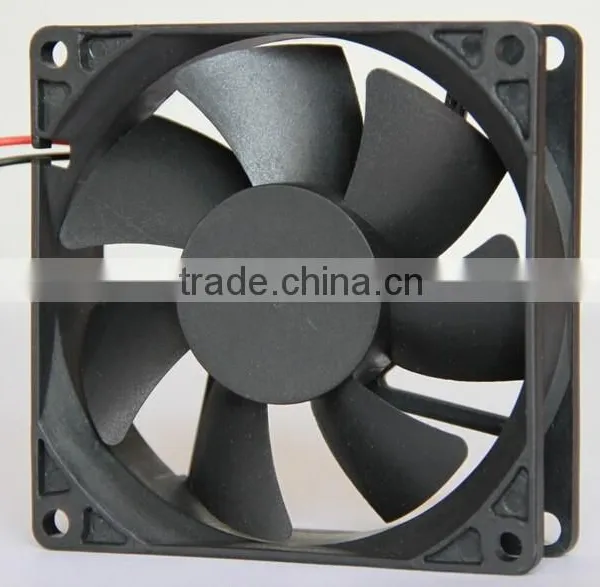

dc Ventilation Fan 80x80x25mm / dc Fan for Air Condition photo-3
US$ 1 - 8 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Power Source:
Electric
Type:
Other, Air Cooling Fan, Single Fans
Installation:
Box
Contact Supplier Request Quote Chat Now
Shenzhen Topfan Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Power Source Electric
Type Other, Air Cooling Fan, Single Fans
Installation Box
Material Other, Plastic, Aluminum & Plastic
Certification CE, Other, UL, CE, RoHS, UL
Power (W) 6
Voltage (V) 12
Brand Name ODM/OEM
Model Number MX8025AB(S)U1
Place of Origin Guangdong, China

dc ventilation fan  80x80x25mm /  dc fan for air condition



General Specifications:

Frame

plastic(UL94v-0)

Impeller

plastic(UL94v-0)

Bearing type

Sleeve Bearing&Dual Ball Bearing

Leadwire

UL1007AWG#24 or Equivalent (+):Red(-):Black

Motor

Impedance Protected and Reverse Polarity Protected



Expected Life:

1.Ball Bearing 50,000 hours(40°c)

2.Sleeve Bearing 30,000 hours(40°c)



 Specifications:



Model Bearing Type Rated Voltage Operating Voltage Input Current Input  Power Speed Max Air Flow  Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX8025AB(S)U1 B.S 12 7.0-13.8 0.50 6.00 4000 54.14 1.53 0.25 62.37 40.00 58.00
MX8025AB(S)H1 B.S 12 7.0-13.8 0.40 4.80 3500 50.35 1.43 0.22 54.82 36.00 58.00
MX8025AB(S)M1 B.S 12 7.0-13.8 0.30 3.60 3000 39.98 1.13 0.14 34.81 31.00 58.00
MX8025AB(S)L1 B.S 12 7.0-13.8 0.20 2.40 2500 35.67 1.01 0.11 27.65 25.00 58.00
MX8025AB(S)D1 B.S 12 7.0-13.8 0.10 1.20 2000 27.39 0.78 0.07 18.14 22.00 58.00
MX8025AB(S)U2 B.S 24 14.0-27.6 0.40 9.60 4000 54.14 1.53 0.25 62.37 40.00 58.00
MX8025AB(S)H2 B.S 24 14.0-27.6 0.30 7.20 3500 50.35 1.43 0.22 54.82 36.00 58.00
MX8025AB(S)M2 B.S 24 14.0-27.6 0.20 4.80 3000 39.98 1.13 0.14 34.81 31.00 58.00
MX8025AB(S)L2 B.S 24 14.0-27.6 0.15 3.60 2500 35.67 1.01 0.11 27.65 25.00 58.00
MX8025AB(S)D2 B.S 24 14.0-27.6 0.10 2.40 2000 27.39 0.78 0.07 18.14 22.00 58.00
MX8025AB(S)U4 B.S 48 28.0-56.0 0.30 14.40 4000 54.14 1.53 0.25 62.37 40.00 58.00
MX8025AB(S)H4 B.S 48 28.0-56.0 0.25 12.00 3500 50.35 1.43 0.22 54.82 36.00 58.00
MX8025AB(S)M4 B.S 48 28.0-56.0 0.20 9.60 3000 39.98 1.13 0.14 34.81 31.00 58.00
MX8025AB(S)L4 B.S 48 28.0-56.0 0.15 7.20 2500 35.67 1.01 0.11 27.65 25.00 58.00

 dc ventilation fan 80x80x25mm / dc fan for air conditiondc ventilation fan 80x80x25mm / dc fan for air conditiondc ventilation fan 80x80x25mm / dc fan for air condition

dc ventilation fan 80x80x25mm / dc fan for air condition
