12V DC cooling fan 120X120X25MM with FG/RD/PWM/IP58/IP68
- 20000 Piece / Pieces per Month
- shenzhen/HK
- Credit Card
Product Details
| Electric Current Type: | DC | Mounting: | Other, Cooling fan | Blade Material: | Plastic |
| Place of Origin: | Guangdong, China | Brand Name: | OEM | Model Number: | YM1212PTB1 |
| Voltage: | 12V | Power: | 2.64W | Air Volume: | 74.06CFM |
| Speed: | 2200RPM | Certification: | CE, ROHS, UL, CE, UL, ROHS | After-sales Service Provided: | No overseas service provided |
Product Description

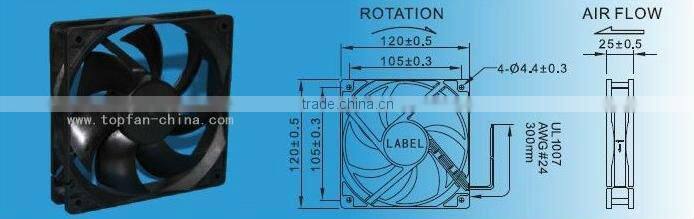

12V DC cooling fan 120X120X25MM with FG/RD/PWM/IP58/IP68
Frame……………..Plastic
Impeller……............Plastic
Bearing Type……..Sleeve Bearing & Dual Ball Bearing
Leadwire..................UL1007AWG#24 or Equivalent (+): Red (-): Black
Motor…………........Impedance Protected and Reverse Polarity Protected
Specifications of DC fan 120x120x25 mm series:
| Model | Rated voltage(V) | Operating Voltage Range (V) | Current amp(A) | Rated Input Power(W) | Speed (rpm) | Max air Flow(CFM) | Max Static Pressure(Inch-H2o) | Noise Level(dB-A) | Weight(g) |
| YM1212PTS(B)1 | 12 | 7.0 to 13.8 | 0.22 | 2.64 | 2200 | 74.06 | 0.2 | 40 | 140 |
| YM1212PTS(B)2 | 12 | 7.0 to 13.8 | 0.18 | 2.16 | 2000 | 67.33 | 0.16 | 36 | 140 |
| YM1212PTS(B)3 | 12 | 7.0 to 13.8 | 0.14 | 1.68 | 1800 | 60.6 | 0.14 | 32 | 140 |
| YM2412PTS(B)1 | 24 | 14.0 to 27.6 | 0.1 | 2.4 | 2200 | 74.06 | 0.2 | 40 | 140 |
| YM2412PTS(B)2 | 24 | 14.0 to 27.6 | 0.08 | 1.92 | 2000 | 67.33 | 0.16 | 36 | 140 |
| YM2412PTS(B)3 | 24 | 14.0 to 27.6 | 0.06 | 1.44 | 1800 | 60.6 | 0.14 | 32 | 140 |
| YM4812PTB1 | 48 | 28.0 to 56.0 | 0.09 | 4.32 | 2200 | 74.06 | 0.2 | 40 | 140 |
| YM4812PTB2 | 48 | 28.0 to 56.0 | 0.07 | 3.36 | 2000 | 67.33 | 0.16 | 36 | 140 |
| YM4812PTB3 | 48 | 28.0 to 56.0 | 0.05 | 2.4 | 1800 | 60.6 | 0.14 | 32 | 140 |
Expected life:
Ball Bearing 50,000 hours(40°C)
Sleeve Bearing 30,000 hours(40°C)
allowable Ambient Temperature Range:
-10°C~+70°C (Operating)
-40°C~+70°C (Storage)
(non-condensing environment)
Certifications:
