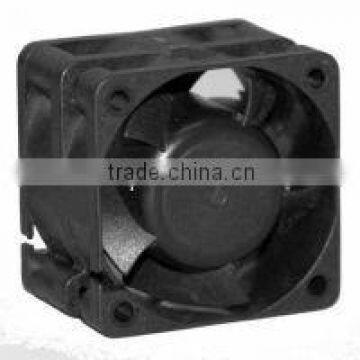

Mini Brushless DC Case Cooler Fan 4CM 40x40x28MM
- SHENZHEN
- Credit Card
You May Like
Product Details

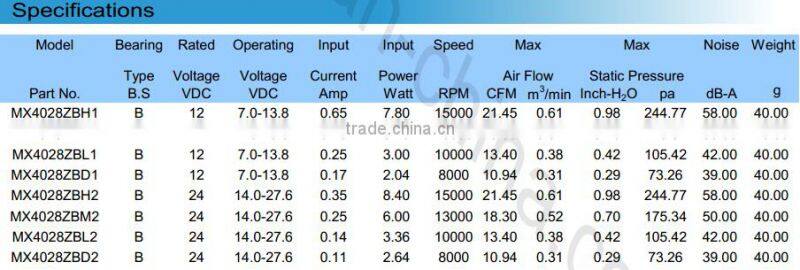

| Electric Current Type | DC | Mounting | Other, according your demands | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | MX/OEM/ODM | Model Number | MX4028ZBH1 | |
| Voltage | 12V | Power | 7.8W | |
| Air Volume | 21.45CFM | Speed | 13000RPM | |
| Certification | CE, ROHS, UL | After-sales Service Provided | No overseas service provided |
Product Description
Mini Brushless DC Case Cooler Fan 4CM 40x40x28MM

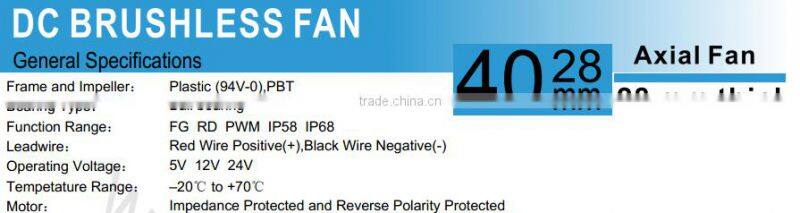

General Specifications
Frame................................................................Plastic (UL94V-0)
Impeller.............................................................Plastic (UL94V-0)
Bearing type...........................Sleeve Bearing & Dual Ball Bearing
Leadwire..........UL1007AWG#26 or Equivalent (+): Red (-):Black
Motor........Impedance Protected and Reverse Polarity Protected

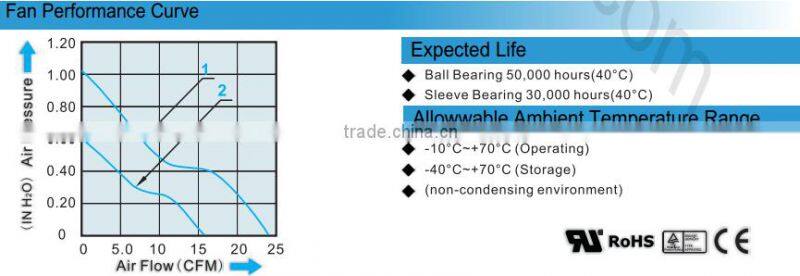

Expected life
Ball Bearing..................................................50,000 hours (40°C)
Sleeve Bearing..............................................30,000 hours (40°C)
Allowable Ambient Temperature Range
1)..........................................................-100C~+700C (Operating)
2)..............................................................-400C~+700C (Storage)
3)......................................................non-condensing environment
,,Shipment
1. FOB Shenzhen or HongKong (mass production)
2. DHL,UPS,FEDEX,TNT or any other international express (sample or small quantity)
<<<More details can be discussed.>>>
,,Payment
T/T and Western Union
1. The payment for the high value sample will be charged.
2. The payment for the low value sample is free, but the freight should be paid by you.
,,Delivery Time
Generally, 500~1000pics 10 days after confirming the PI
,,Our Company
Alibaba: http://topfan-china.en.china.cn
Shenzhen Topfan-China Development Technology Co., Ltd, founded in 1996 in Shenzhen China, is professional manufacturer on dc brushless fans and ac fans. Products are ISO9000, UL, CE, RoHS and TUV certificated and good sellers both at home and abroad, including Europe, North America, Asia(Korea and India) etc. The products, including brushless fans, cross flow fans, blower fans, centrifugal fans, dc brushless motor, shades pole and RC ac fans etc, are being widely used in the information technology, network communications as well as industrial production equipment, medical equipment, home appliances and others.
Based on mutual benefit and development, we'll make our biggest efforts to do everything better for our customers.
