4.7 Inch dc Motor Waterproof Fan 120X120X38mm

FOB Price

US$ 3 - 8 / Piece

1000 Pieces(Min. Order)

Port shenzhen
Payment TermsMoney Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	DC	Mounting	Other, cooling fan
Blade Material	Plastic	Place of Origin	Guangdong, China
Brand Name	OEM/ODM	Model Number	MX12038AB(S)U1
Voltage	12V/24v/48v	Power	18.00W
Air Volume	170.20CFM	Speed	4000RPM
Certification	CCC, CE, ROHS, UL, Other, CCC, CE, ROHS, UL, ISO9000, TUV,FCC	After-sales Service Provided	No overseas service provided

Product Description

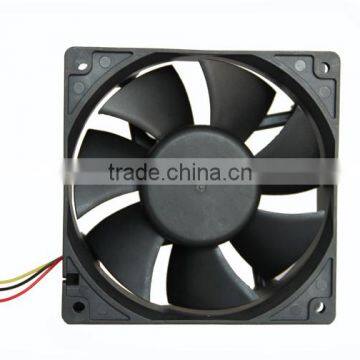

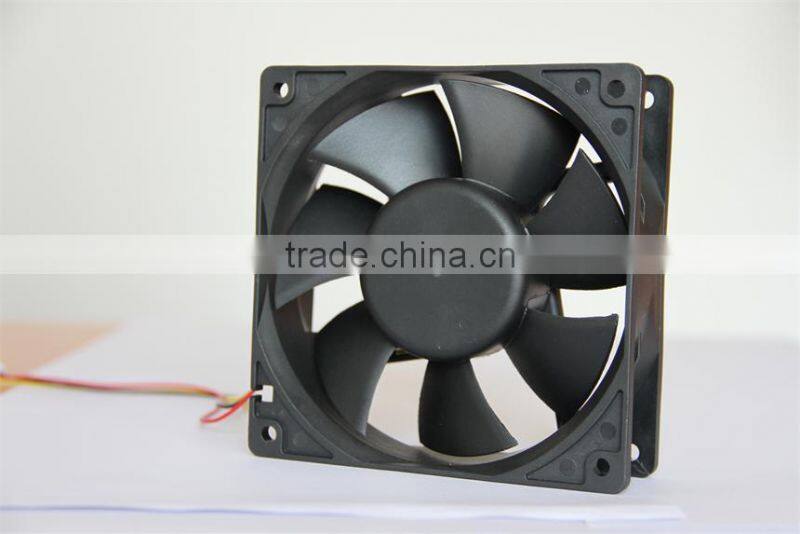

4.7 inch dc motor fan / waterproof fan 120X120X38mm

General Specifications:

Frame	plastic(UL94v-0)
Impeller	plastic(UL94v-0)
Bearing type	Dual Ball Bearing
Leadwire	UL1007AWG#24 or Equivalent (+):Red(-):Black
Motor	Impedance Protected and Reverse Polarity Protected

Expected Life:

Ball Bearing 50,000 hours(40°c)

Allowable Ambient Temperature Range:

1.-10°c~+70°c (Operating)

2.-40°c~+70°c (Storage)

3.(non-condensing environment)

Brushless axial dc fan 60mm, low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Description:

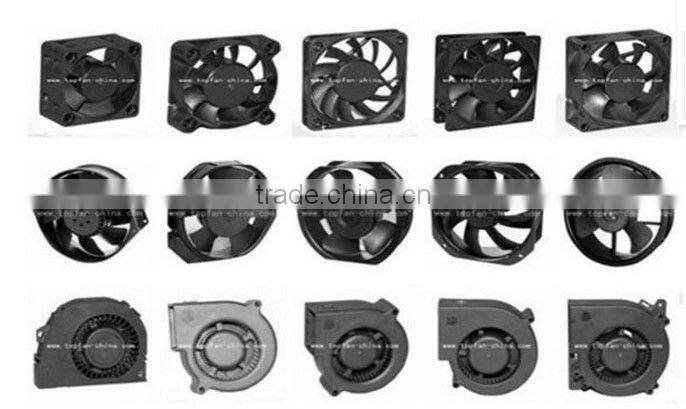

Brushless DC Fan, Axial DC Fan, DC Motor Fan,CPU Fan, Computer case fan, laptop fan, PWM Fan, FG cooling fan, LED Digital signage.

Various Size.
High speed , Middle speed, Low speed.
Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller.
5 blades 7 blades or 9 blades.
5V DC 12V DC 24V DC or 48V DC.
Ball bearing or Sleeve bearing or Hydraulic bearing.
Terminal or Lead wire.
Waterproof explosion proof or high proof are can be satisfied.

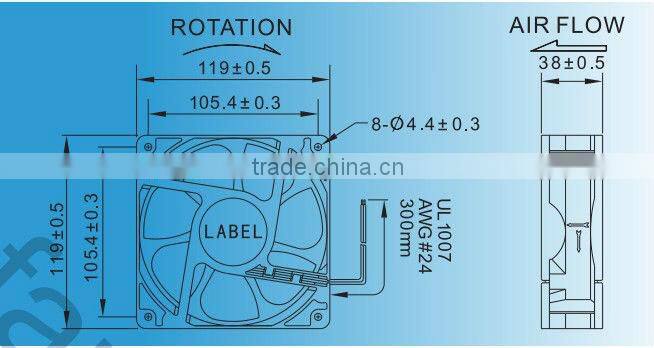

Fan Dimensions( Unit:mm)

Specifications:

Model	Bearing Type	Rated Voltage	Operating Voltage	Input Current	Input Power	Speed	Max Air Flow		Max Static Pressure		Noise	Weight
Model	Bearing Type	Rated Voltage	Operating Voltage	Input Current	Input Power	Speed	Max Air Flow		Max Static Pressure		Noise	Weight
Part No.	B.S	VDC	VDC	Amp	Watt	RPM	CFM	m³/min	Inch-H₂O	pa	dB-A	g
MX12038AB(S)U1	B.S	12	7.0-13.8	1.50	18.00	4000	165.05	4.67	0.60	150.63	58.00	262.00
MX12038AB(S)H1	B.S	12	7.0-13.8	1.00	12.00	3500	144.21	4.08	0.50	124.25	53.00	262.00
MX12038AB(S)M1	B.S	12	7.0-13.8	0.60	7.20	3000	115.29	3.27	0.34	83.55	48.00	262.00
MX12038AB(S)L1	B.S	12	7.0-13.8	0.40	4.80	2500	101.85	2.88	0.26	64.63	40.00	262.00
MX12038AB(S)U2	B.S	24	14.0-27.6	1.00	24.00	4000	165.05	4.67	0.60	150.63	58.00	262.00
MX12038AB(S)H2	B.S	24	14.0-27.6	0.60	14.40	3500	144.21	4.08	0.50	124.25	53.00	262.00
MX12038AB(S)M2	B.S	24	14.0-27.6	0.40	9.60	3000	115.29	3.27	0.34	83.55	48.00	262.00
MX12038AB(S)L2	B.S	24	14.0-27.6	0.20	4.80	2500	101.85	2.88	0.26	64.63	40.00	262.00
MX12038AB(S)U4	B.S	48	28.0-56.0	0.60	28.80	4000	165.05	4.67	0.60	150.63	58.00	262.00
MX12038AB(S)H4	B.S	48	28.0-56.0	0.40	19.20	3500	144.21	4.08	0.50	124.25	53.00	262.00
MX12038AB(S)M4	B.S	48	28.0-56.0	0.20	9.60	3000	115.29	3.27	0.34	83.55	48.00	262.00
MX12038AB(S)L4	B.S	48	28.0-56.0	0.12	5.76	2500	101.85	2.88	0.26	64.63	40.00	262.00
