Specifications
Max Charging current: 20ADC Voltage: 24V
Suitable Solar System: 24V
with DC load function
Smart and compact design

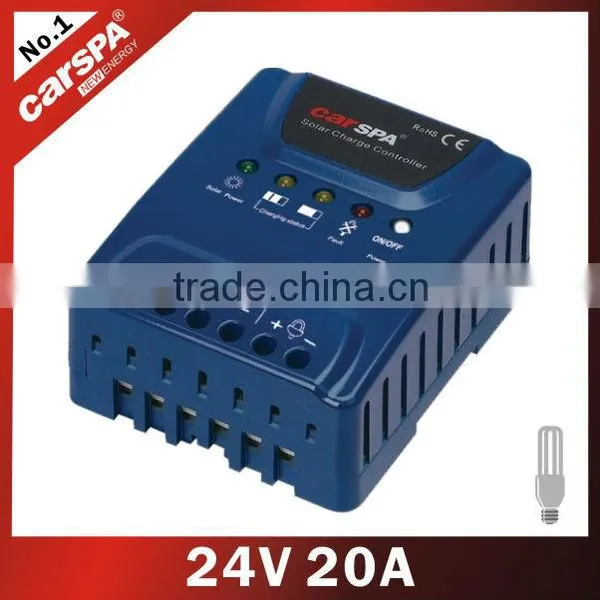

CE ROHS certificated 24V20A intelligentized solar charge regulator (CD2420)
Why Choose Us?
1. Professional Manufacturer---9years experience
2. High Quality Products----Hot selling in European Market
3. Reliable Service---We serve for our clients with a golden team.
4. Powerful R&D Team---We have R&D centers in Shanghai & Shenzhen, which can provide the ODM service for you.
5. Advanced Technology---We have adopted the SMT & used the imported components.
6. Factory Management---5S System Management provides us with clean, ordered and joyful working environment.
7. Imported Main Components---We used the main components from oversea market, such as USA, JAPAN, TAIWAN, etc.
Introduction:
Our new charge controller are developed and engineered with the latest technical standards, representing the most innovative and benchmark technology in the industry.
Features:
1. 4 LED functionality
2. DC load ON/OFF button
3. Easy to read, clear indication of charge status
4. Automatic protection against reverse polarity on batteries, solar panels
5. Low voltage disconnected by controlled voltage
6. Automatic Reset
7. Automatic temperature compensation
8. Common positive allows grounding
9. Easy to mount on wall or rail
Specification:
Model |
CD2420 |
CD2425 |
CD2430 |
System voltage |
24V |
||
Max. charge current |
20A |
25A |
30A |
Float charge |
27.4V |
||
Boost charge |
29V |
||
DC loads |
20A |
25A |
30A |
Temp. compensation |
Yes |
||
LED indicator |
4 LED indicators for different charge status |
||
Brands |
CARSPA or OEM |
||
Case color |
Blue, Silver, black optional |
||
Unit size |
11.5*9.1*4.8cm |
||
Unit weight |
244g |
||
Meas. / CTN |
51*30*26.5cm |
||
G.W. / CTN |
16kg |
||
Certification |
CE-EMC / LVD, RoHS |
||
Warranty |
24 months |
||
