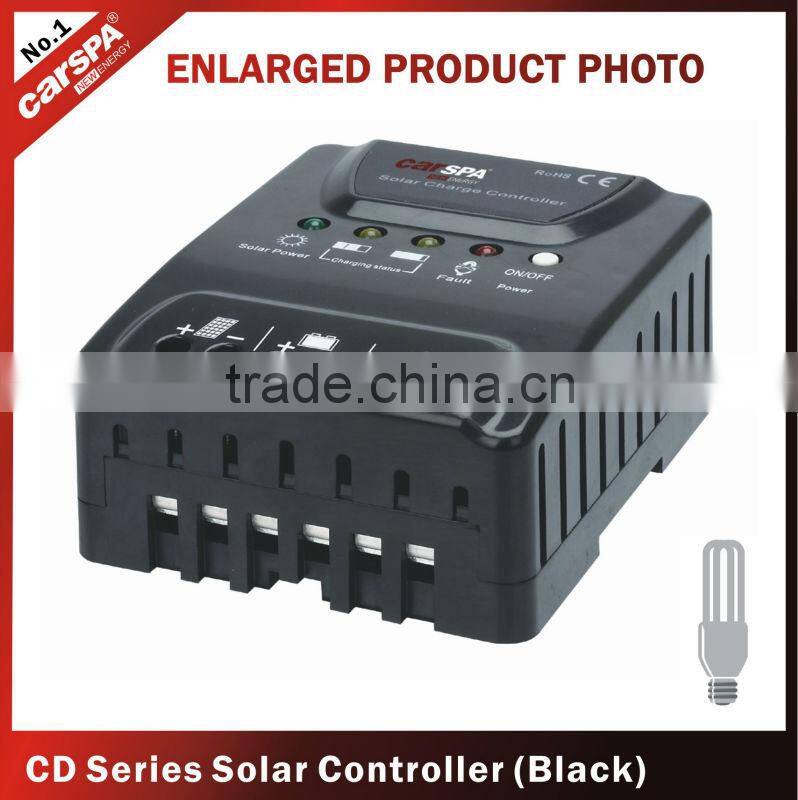

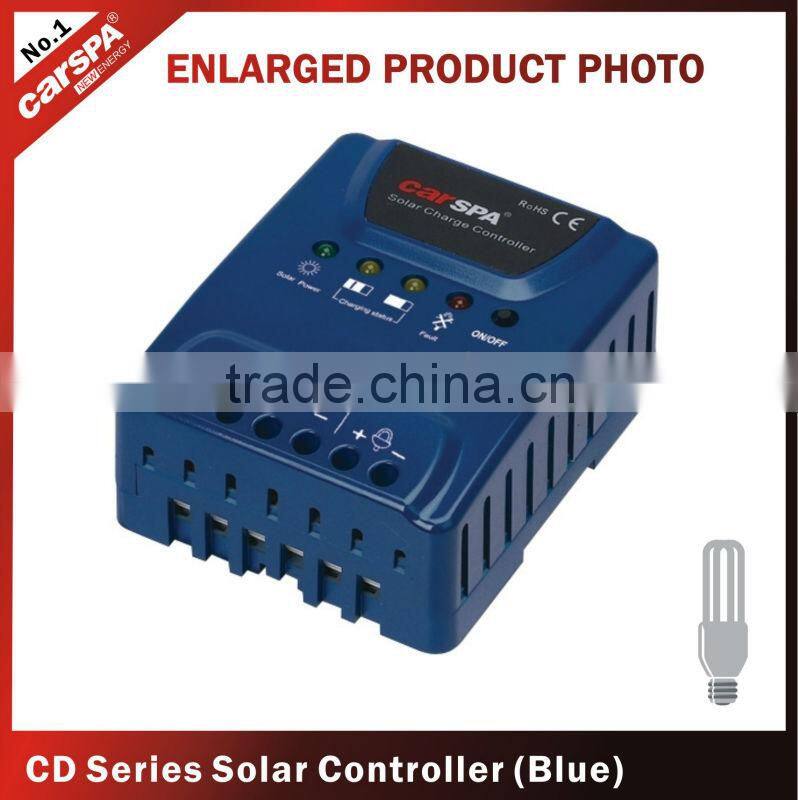

CD series 20A solar panel 12v 24v charger controllers (CD12/24-20)

Specifications

smart and compact design
with DC load function
System Voltgae: 12V or 24V, both are ok

CD series 20A solar panel 12v 24v charger controllers (CD12/24-20)



Why Choose Us?

1. Professional Manufacturer---9years experience
2. High Quality Products----Hot selling in European Market

3. Reliable Service---We serve for our clients with a golden team.

4. Powerful R&D Team---We have R&D centers in Shanghai & Shenzhen, which can provide the ODM service for you.

5. Advanced Technology---We have adopted the SMT & used the imported components.

6. Factory Management---5S System Management provides us with clean, ordered and joyful working environment.

7. Imported Main Components---We used the main components from oversea market, such as USA, JAPAN, TAIWAN, etc.



Introduction:
Our new charge controller are developed and engineered with the latest technical standards, representing the most innovative and benchmark technology in the industry.



Features:
1. 4 LED functionality
2. DC load ON/OFF button
3. Easy to read, clear indication of charge status
4. 12/24V auto.detection
5. Automatic protection against reverse polarity on batteries, solar panels and DC output
6. Extensive electronics protection : Short circuit, reverse polarity and overload
7. Low voltage disconnected by controlled voltage
8. Automatic Reset
9. Automatic temperature sensor
10. Common positive allows grounding
11. Easy to mount on wall or rail



Specification:

Model	CD12/24-20	CD12/24-25	CD12/24-30
System voltage	12/24V Auto. Switch
Max. charge current	20A	25A	30A
Float charge	13.7V/27.4V
Boost charge	14.5V/29V
DC Load	20A	25A	30A
Temp. compensation	Yes
LED indicator	4 LED indicators for different charge status
Brands	CARSPA or OEM
Case color	Blue, Silver, black optional
Unit size	11.5*9.1*4.8cm
Unit weight	244g
Meas. / CTN	51*30*36.5cm
G.W. / CTN	16Kg
Certification	CE-EMC / LVD, RoHS
Warranty	24 months
