On-line Laser Marking Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
Fiber Laser
Engraving Area:
100*100mm 200*200mm 300*300mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lowest Price Auto-turntable Laser Marking MachineNegotiableMOQ: 1 Set -
Lowest Price Desktop Fiber Laser Marking MachineNegotiableMOQ: 1 Set
-
Lowest Price Hand-hold Fiber Laser Marking Machine BML-FHNegotiableMOQ: 1 Set
-
Auto-turntable Laser Marking Machine 2 Years Warranty ISO CE FDA BV TUV SGSUS$ 8,000 - 20,000MOQ: 1 Set
-
Hot Sales !Hand-hold Fiber Laser Marking Machine BML-FHNegotiableMOQ: 1 Set
Condition
New
Laser Type
Fiber Laser
Engraving Area
100*100mm 200*200mm 300*300mm
Engraving Speed
7000mm/s
CNC or Not
Yes
Cooling Mode
Air Cooling
Applicable Material
Metal
Graphic Format Supported
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin
Shandong, China
Brand Name
BODOR
Model Number
BML-Fl
Certification
CE, ISO, SGS, Other, CE, ISO, SGS, BV TUV FDA
After-sales Service Provided
Engineers available to service machinery overseas
Our Services
1. 2 year guarantee
2.Detailed manual and video to teach the users how to use the machine, also supply the specification settings for the speed
and power to cut various materials.
3.If you have any question, we can solve it with pictures, videos etc.
4.Lively and fast technical guide and solution within 24 hours by email and web,msn or skype!
5.Customer arranges engineer come to China to learn.
Main Features

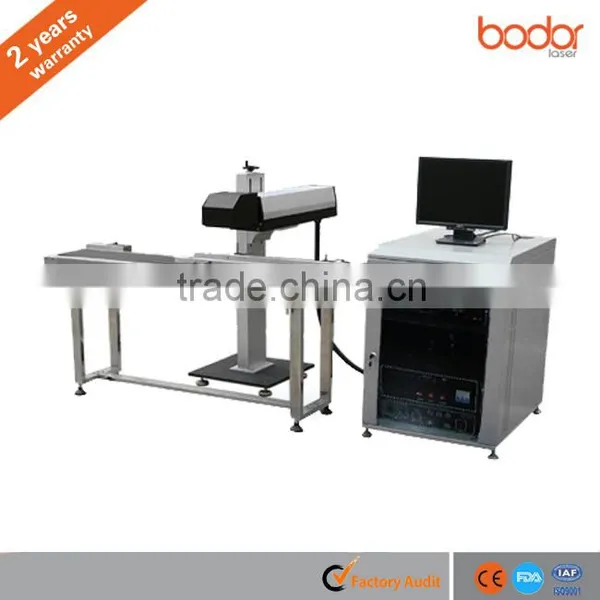

On-line laser marking machine is a high-tech product, which developed and designed upon the online spraying the code in each industry. High electro-optical conversion rate, stable performance, sustainable work for a long time, can be in production line without pause, achieve sustained marking!
1. Strong text layout and graphics processing functions can automatically generate lot numbers and serial number.
2. Flexibility to modify software functions, continuously adjustable.
3. Speed, safety and environmental protection marks a clear non-erasable.

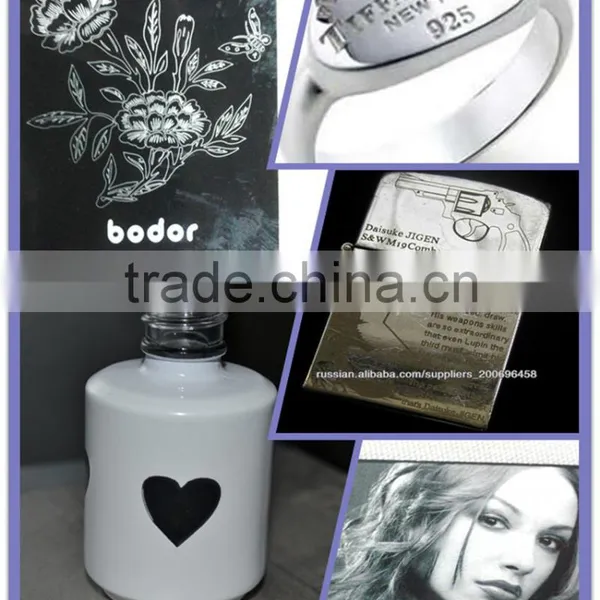

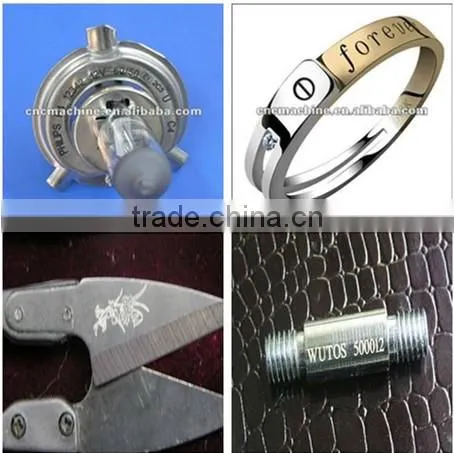

4. Flying (on-line) laser marking machine can mark on metal and most of non-metal materials.
5. With red light position device accurately indicates the location of laser head process eliminate the trouble about manual position.
1. Strong text layout and graphics processing functions can automatically generate lot numbers and serial number.
2. Flexibility to modify software functions, continuously adjustable.
3. Speed, safety and environmental protection marks a clear non-erasable.
4. Flying (on-line) laser marking machine can mark on metal and most of non-metal materials.
5. With red light position device accurately indicates the location of laser head process eliminate the trouble about manual position.
Technical Parameter
| Model | BML-FL | BML-CL |
| Laser Power | 10W 20W 30W | 30W/55W |
| Laser Tube | Fiber Generator | USA RF Laser Tube |
| Laser Wave Length | 1064nm | 10640nm |
| Cooling | Air Cooling | Air Cooling |
| Marking Width | 110mm or 200mm(According to Filed Lens) | |
| Marking Length | No Limited | |
| Minimum Line Width | 0.1mm | |
| Minimum Character | 0.3mm | |
| Marking Speed | ≤10000mm/s | |
| Marking Depth | ≤1mm | |
| Repeatability | ±0.01mm | |
| Maximum Line Speed | 70m/min | |
| Flying Marking the Number of Rows | <8 lines | |
| Character Type | In Chinese and English Characters, Numbers, Symbols | |
| Power | AC220V±10%,50Hz/15A | |
| Total Power | <1.5 kw | |
| Temperature | 5~40℃ | |
| Total Weight | 220KG(No Conveyor) | |
