China Cnc Laser Wood Engraving Machine Price
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Engraving Area:
500*300mm/600*500mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao / Guangzhou / Tianjin / Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Cnc Machine Used Laser WeldingNegotiableMOQ: 1 Set -
China Cnc Laser Engraving Machine PenUS$ 7,000 - 10,000MOQ: 1 Set
-
China Cnc Mini Laser Stamp Making MachineUS$ 3,000 - 6,000MOQ: 1 Set
-
China Cnc Small Laser Cutting Machine UsedNegotiableMOQ: 1 Set
-
China Cnc Woodworking Machine With PriceUS$ 2,000 - 3,000MOQ: 1 Set
Condition
New
Laser Type
CO2
Engraving Area
500*300mm/600*500mm
Engraving Speed
6000mm/min, 0-60000mm/min
CNC or Not
Yes
Cooling Mode
Water Cooling
Applicable Material
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Graphic Format Supported
AI, PLT, DXF, BMP, DST, DWG, LAS, DXP, Other, AI, PLT, DXF, BMP, DST, DWG, LAS, DXP, DST PLT BMP DXF DWG AI LAS,etc
Place of Origin
China
Brand Name
Bodor
Model Number
BML-MU
Certification
CE, SGS, Other, CE, SGS, FDA, BV
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1Stainless steel up-down table2 Up-down height 160mm
3Red cross position system
4CE,BV,ISO,TUV
laser welding machine for sa
laser wood engraving machine price
Product Description

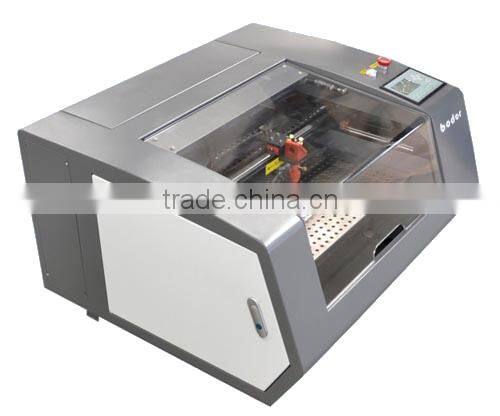

Machine picture:
Main Features
1. Modern smart design. Put on table and work easily.
2. Stronger frame together with HIWIN square rail, high accuracy.
3. Transparent acrylic watching door, easy checking work process.
4. Independent laser tube cabinet, protect tube and easy change.
5. Stainless steel comb working table, avoid rust.
6. Red cross point offers the highest accuracy position.
7. High efficiency tube with stable laser path. 40W—90W life time reach to 4000—10000 hours.
8. Professional motion control card offers continue fast curve cutting together with shortest path selection. Shorten work time.
9. U disk offline operation makes work convenient.
2. Stronger frame together with HIWIN square rail, high accuracy.
3. Transparent acrylic watching door, easy checking work process.
4. Independent laser tube cabinet, protect tube and easy change.
5. Stainless steel comb working table, avoid rust.
6. Red cross point offers the highest accuracy position.
7. High efficiency tube with stable laser path. 40W—90W life time reach to 4000—10000 hours.
8. Professional motion control card offers continue fast curve cutting together with shortest path selection. Shorten work time.
9. U disk offline operation makes work convenient.
Technical Parameter
| Model | BCL0503MU | BCL0605MU | Option |
| Working Area | 500*300mm | 600*500mm | According to Demands |
| Laser Power | 40W/50W/60W/90W | ||
| Laser Type | CO2 Sealed Laser Tube, 10.6μm | ||
| Cooling Type | Water Cooling | ||
| Engraving Speed | 0-60000mm/min | ||
| Cutting Speed | 0-40000mm/min | ||
| Laser Output Control | (0-100% Set by Software ) | ||
| Min. Engraving Speed | Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm | ||
| Highest Scanning Precision | 4000DPI | ||
| Locating Precision | ≤+0.01mm | ||
| Controlling Software | DSP Control System | ||
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc | ||
| Compatible Software | TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,etc | ||
| Color Separation | Yes | ||
| Drive System | High-precision 3-phase Stepper Motor | ||
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe | ||
| power Supply | AC110V/220V+10%,50HZ/60HZ | ||
| Working Environment | Temperature:0-45°C,Humidity 5-95%(No Condensate Water) | ||
| Optional Spare Parts | Honeycomb Worktable, Rotary Device,Auto-focus Device | ||
Applications
Applicable industry:
Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and crafts, electronics, electric appliances, etc.
Applicable Materials:
materials such as acryl, wood planks(light planks,candlenut wood),bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, etc
Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and crafts, electronics, electric appliances, etc.
Applicable Materials:
materials such as acryl, wood planks(light planks,candlenut wood),bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, etc
