Mixing Machine for Flour

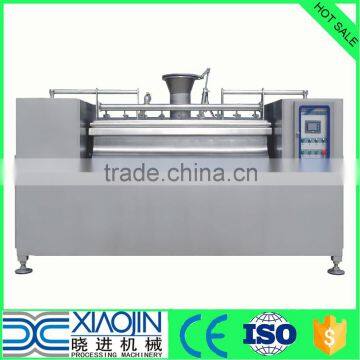

Details of "U" Shape Paddle Mixing Machine for Flour

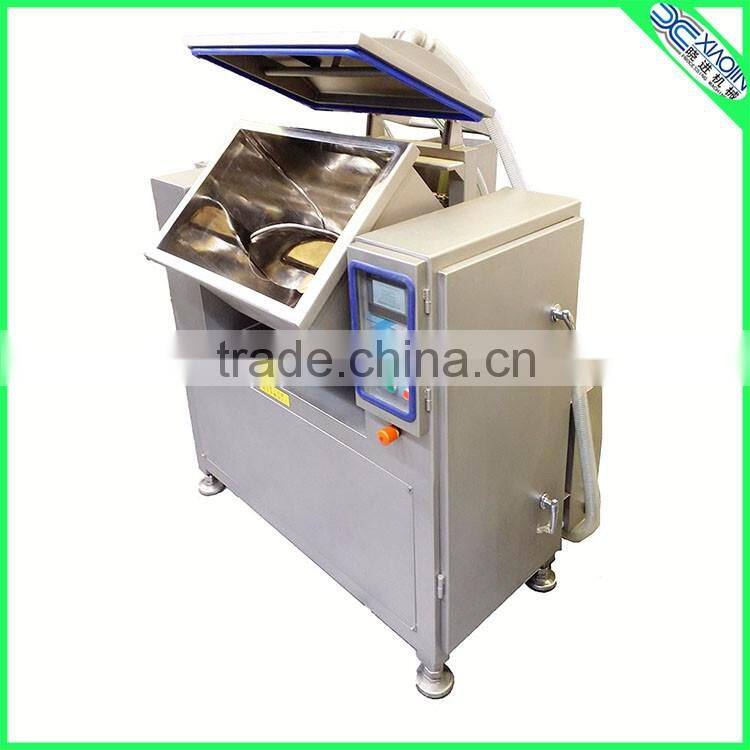

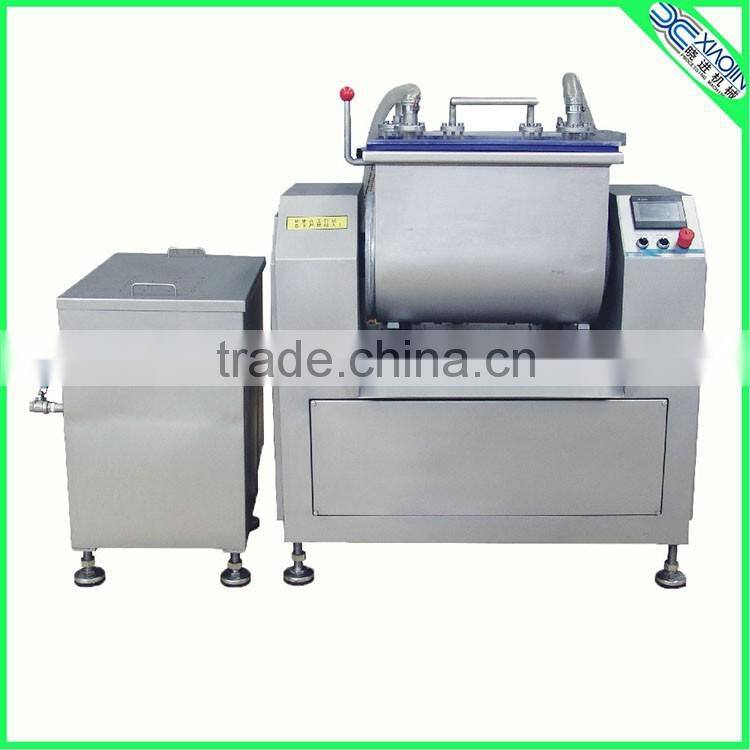

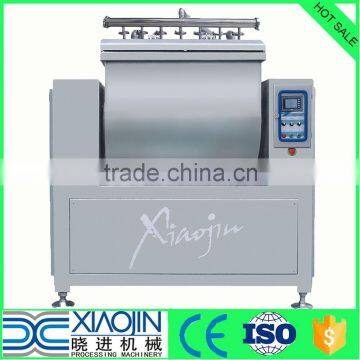

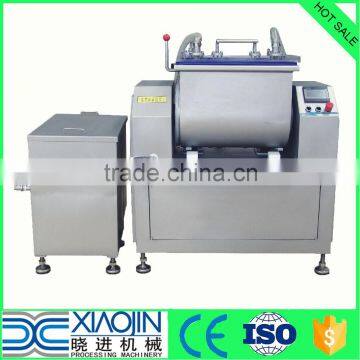

Ⅰ Structure: ZHM Vacuum Flour Mixer is composed of frame, body, vessel that can tilted 95°, vessel lid, mechanical transportation, water circulated vacuum pump and the electric parts.
Ⅱ Material : The frame, body, vessle, vessel lid and paddle all adopted SUS304 stainless steel.
Ⅲ Feature:
- The openning of the vessle lid and the tilting of the vessle is controlled by hydrautic system. The internal surface of the vessle and dough making paddles are all treated by bright finish.
- Water circulated vacuum pump is adopted in the evacuation process. It effectively prevents the vacuum damage made by flour and reduce the pollution to the flour. It is more durable and the highest vacuum degree can reach to -0.09MPa.
- The operational system is composed of PLC and touching screen, both Chinese and English language.
IV Principle:
Under the nagative pressure vacuum condition, ZHM Vacuum Flour Mixer atomizes and vaporize some water which synchronize the flour absorb water. After the wheat gluten come into being, the paddle simulate the manual mix which stacks the glutens layer by layer, a big piece of dough will be made in a very short time.
V Application: ZHM Vacuum Flour Mixer can be used to make all kinds of dough, such as noodles, dumplings,steamed bread,pizza etc. The dough featured by flexible, transparent, vigorous, smooth and tasty.
VI Specification:
Shaft speed: 41rpm External Dimension: 1310×700×1500mm Weight: 968kg
Power: 25.1kw; Volume: 300L; Capacity: 100-125kg/h;
Vacuum:0~-0.09MPa; Shaft speed: 41rpm; Weight: 2097kg;
External Dimension: 1800×1100×1820mm; Face turned box: 95°;
Water-ring vacuum pump: 100-220L;
Thickness of the vessel: 8-12mm;
Dough making time: 6-8 minutes;
3. ZHM70 Mixing Machine for Flour
Power: 5.5kw Volume: 70L Capacity: 10-25kg
Shaft speed: 41rpm External Dimension: 1090×620×1200mm Weight: 300kg

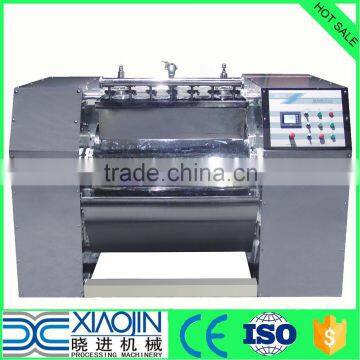

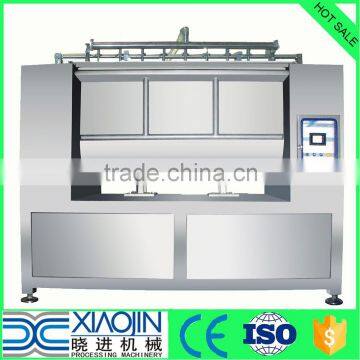

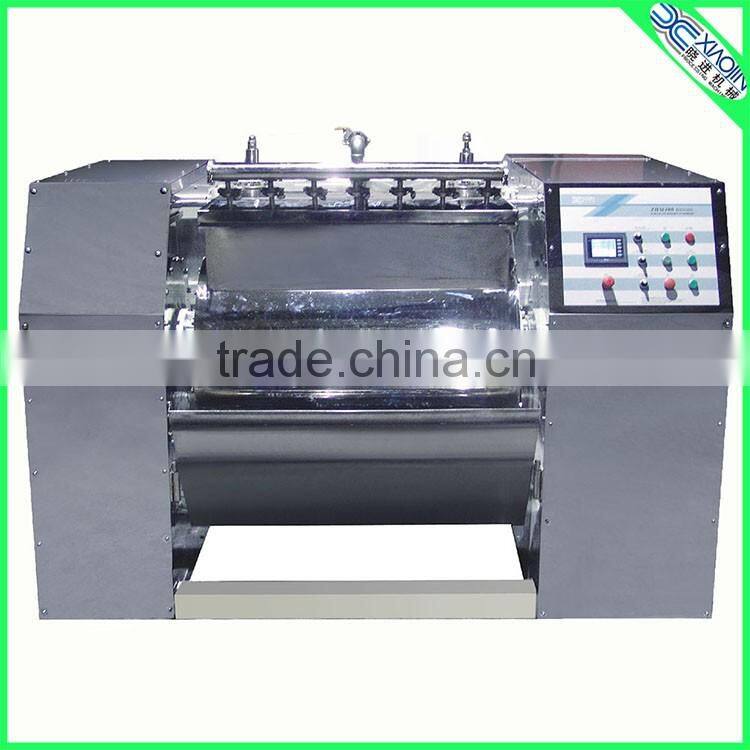

Other types of Mixing Machine for Flour
Power: 21.5kw Volume: 400L Capacity: 100kg/batch
Shaft speed: 20-86rpm External Dimension: 2325×1520×1575 mm Weight: 1500kg
Power: 26.2kw Volume: 650L Capacity: 100-250kg/batch
Shaft speed: 20-116rpm External Dimension: 2800×1350×2010 mm Weight: 2200kg
Power: 45.5kw Volume: 750L Capacity: 250kg/batch
Shaft speed: 87rpm External Dimension: 2800×1300×2400mm Weight: 4200kg
Hebei Xiaojin Machinery Manufacturing Inc. was founded in 1986. We have over 30 years experiences in food processing machinery industry, which is playing a leading role in Chinese meat processing industry. Under the leadership of board Mr. Min Xiaojin, the company insists of modern management and an excellent staff and strong technical team. The products include, Vacuum Filler, Tumbler, Mixer, Slicer, Grinder, Saline Injector, Automatic smokehouse, Tenderizer, Bowl Cutter, Clipper and all kinds of clips. 30 types of products own National patents, since we have founded a comprehensive service system, our products earn pretty reputation among our clients. We have successfully entered into the International market and exported over 70 countries.
Company Overview:
Exhibition Room:
Office:
Workshop:
- If you need, our technicians will go to your place to help you install and adjust the machine.
- Train your workers how to use and maintain the machine in daily use.
- Any parts you need will be sent directly from us.
