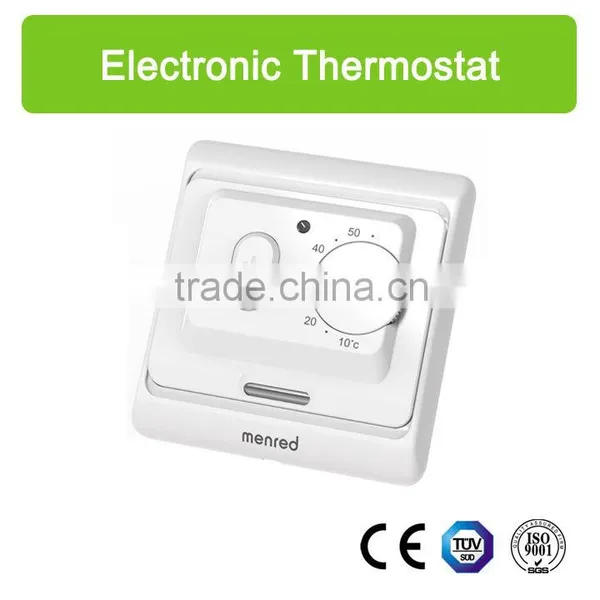

E7... Electronic heating thermostat
Introduction
Electronic heating thermostat is mounted in the wall directly, the temperature range is from 10℃ to 55℃. LED indicator light up shows on heating.
This thermostat applies to control the temperature of heating(equipment) system, and is available either with room sensor or without floor sensor, which also is the best choice for obtaining high comfort at the Min. Energy consumption.
Application
For the control of warm-water(floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings...
Technical data
Voltage: 220V/230V
Power Consumption: 3.5VA
Setting Range: 10-55℃
Limitation range: 30.40.55℃ adjustable
Switch differential: ±1℃
Ambient temperature:-5-50℃
Protection housing: IP20
Floor sensor: NTC external sensor
Housing material: Anti-flammable PC
Wiring Diagram:
Selection Table
| Model Number | Current | Application |
| E71.33 | 3A | For electro-thermal actuator or radiator's valve |
| E71.36 | 16A | For electric heating cable or other electric heating device |
