E9... touch-screen heating thermostat
Introduction
Weekly circulation digital programming thermostat with LCD screen, which has 6-event everyday. Manual mode and programme mode could be selected. The thermostat is recommended for control of electric heating devices or on/off valve actuator used in hydronic floor heating.
Application
For the control of warm-water(floor) heating systems and direct electric heatings systems used in Commercial buildings, Residential buildings, Light industrial buildings...
Technical data
Voltage: 220V/230V
Power Consumption: 2W
Setting Range: 5-90℃(Can adjust to 35-90℃)
External limitation: 5...60℃(Factory setting: 35℃)
Switch differential: 0.5-10℃ adjustable(Factory setting: ± 1 ℃)
Ambient temperature: -5-50℃
Protection class: IP20
Housing material: Anti-flammable PC

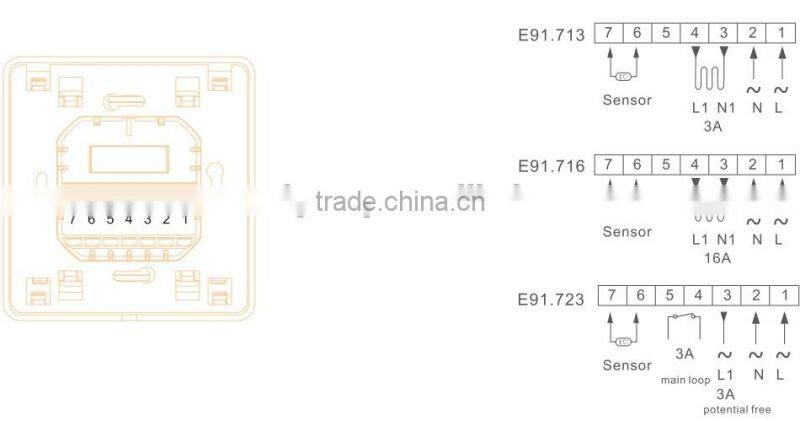

Wiring Diagram
Selection Table
| Model Number | Current | Application |
| E91.713 | 3A | Built-in&floor sensor, floor limit sensor, weekly programming |
| E91.723 | 3A | Built-in&floor sensor, floor limit sensor, weekly programming. A potential-free output |
| E91.716 | 16A | Built-in&floor sensor, floor limit sensor, weekly programming |
