Help CenterHydraulic Metal Sheet Plate Hole Punching Machine , Punch Machine
Related Products
-
Single Cylinder Hydraulic Punching Machine for Steel ,hole PunchingNegotiableMOQ: 1 Set -
Zhongyi Hydraulic Punching Machine 63T/90T/125T/140TNegotiableMOQ: 1 Set
-
90T Hydraulic Punching Machine, Industrial MachineryNegotiableMOQ: 1 Set
-
90T Power Press, Single-head Punhing MachineNegotiableMOQ: 1 Set
-
90TSingle Cylinder Ironworker Machine ,Single Head Punching MachineUS$ 1,000 - 50,000MOQ: 1 Set
The structure of the machine:
1.The machine is the broadest line of Hydraulic Punching Machine available anywhere. All Hydraulic Punching Machine are built for long service in multi-shift industrial production applications. The AccurL Hydraulic Punching Machine are designed using the latest engineering techniques to provide you with a more compact, faster press. We offer an unusually wide range of standard equipment, special features, accessories and options.
Machine features:
2. The frame is welded steel "C"-type frame structure. Maximum rigidity and minimum deflection for accurate parts and long tool life. After annealing to stress, with a strong structure stability. Deep ribbing under the bed forms a stable mounting surface for tools and dies. All our electrical, hydraulic and mechanical parts are standard in the industry and available throughout North America and Europe.
Machine consists of :
3.The use of hydraulic punching machine equipment, reasonable structure, from the rack, hydraulic systems, electrical three parts.
Accurl Industrial hydraulic ironworkers and punching machine have been designed and built to the highest quality standards in the industry. This profitable machine will serve any grueling fabrication shop for decades to come. This machine is typically in stock for quick deliveries
Model you can choose:
| Technical Parameters | ||||
| Model | 16Y-63T | 20Y-90T | 25Y-115T | 30Y-140T |
| Punching Pressure(T) | 63 | 90 | 115 | 140 |
| Plate strength(N/mm2) | ≤450 | ≤450 | ≤450 | ≤450 |
| Slider trip(mm) | 80 | 80 | 80 | 80 |
| Trips frequency(times/min) | 14-25 | 16-22 | 10-18 | 8-16 |
| Punching Thickness(mm) | 16 | 20 | 25 | 26 |
| Max.punching diameter(mm) | 25 | 30 | 35 | 38 |
| Throat depth(mm) | 300 | 480 | 480 | 600 |
| Main Motor Power(KW) | 4 | 5.5 | 7.5 | 11 |
| Overall diamensions(L×W×H)(mm) | 1400×700×1700 | 1600×800×1800 | 1800×960×2000 | 2200×1000×2300 |

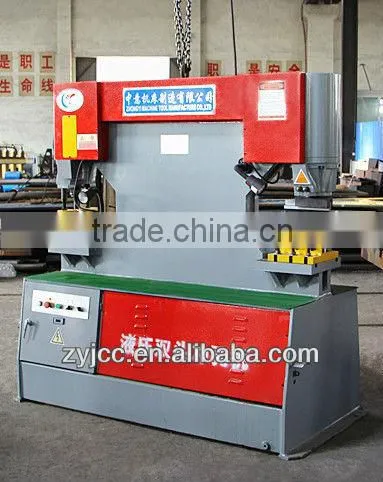

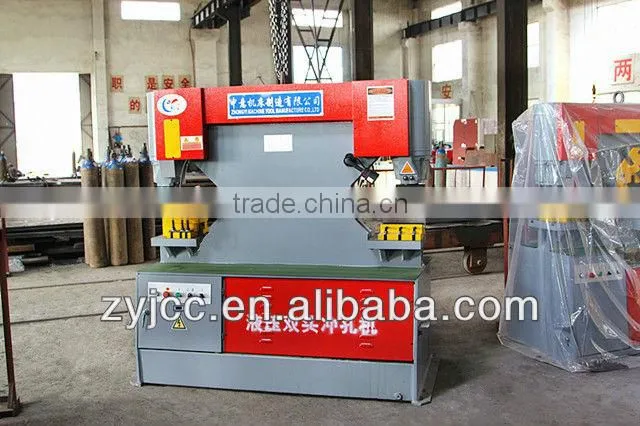

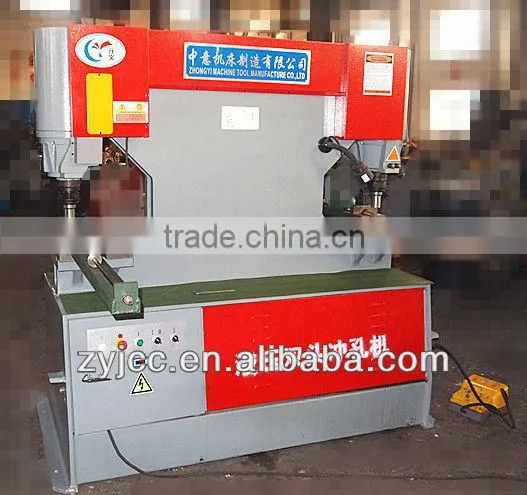

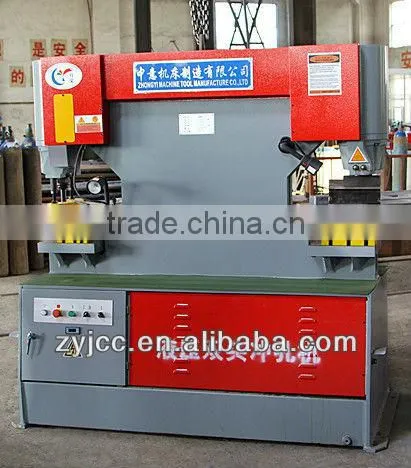

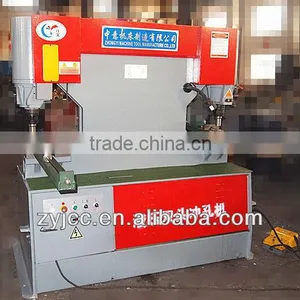

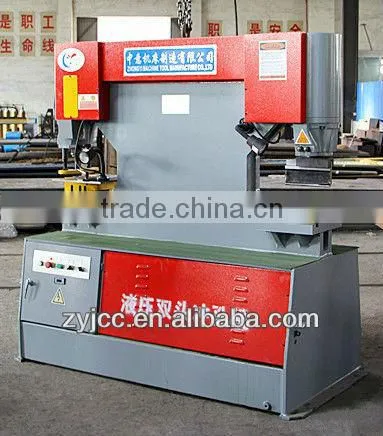

Pictures:
