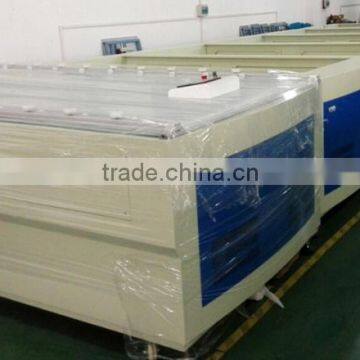

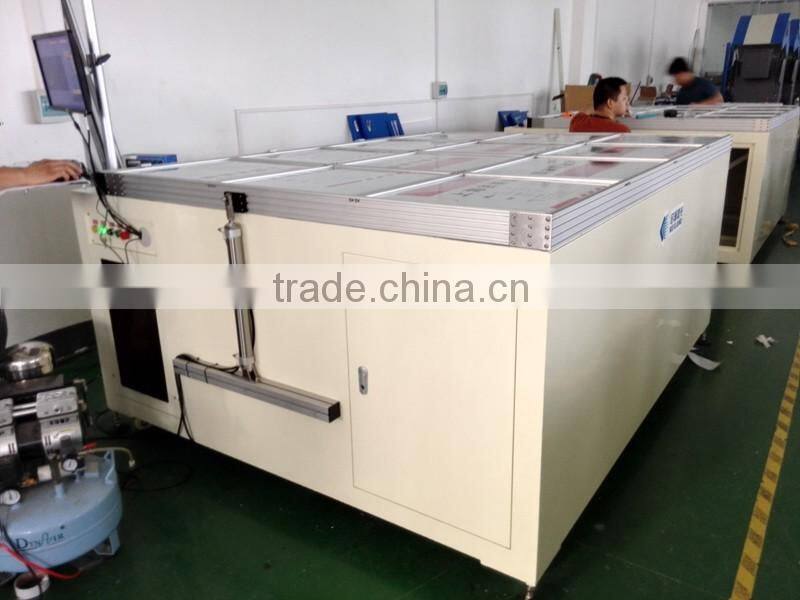

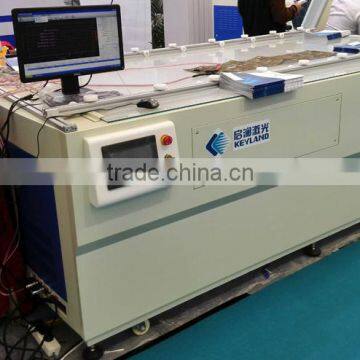

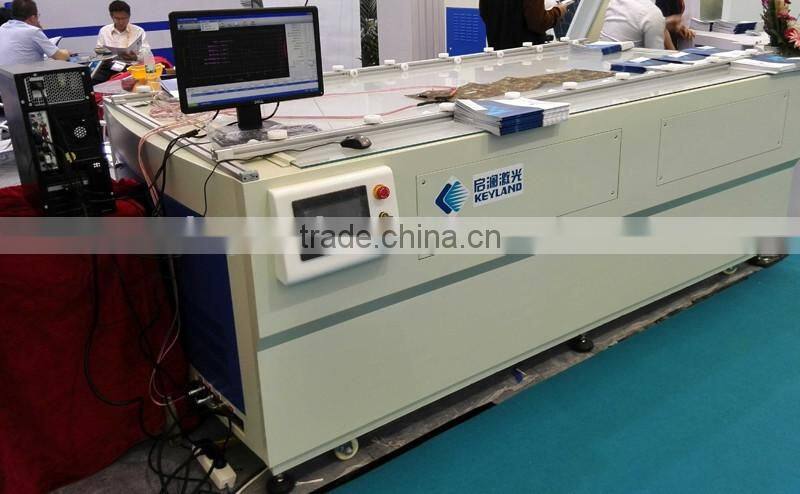

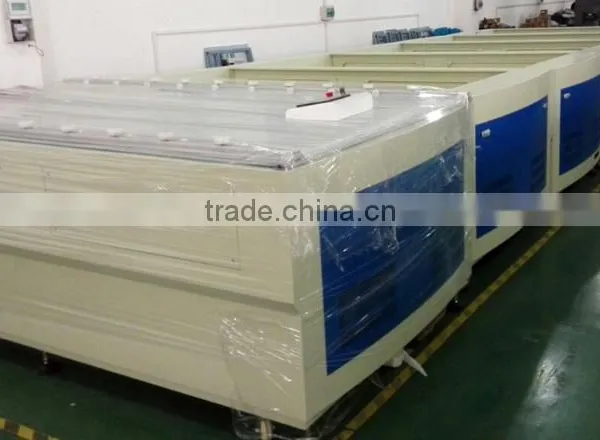

Solar Panel Making Machine Solar Module Tester AAA Grade 2000x1200mm

Product Application

Solar module tester is a high-reliability, high-precision solar battery test equipment. The equipment adopts high-power, long-life imported pulses xenon lamp as the simulator light source, imported ultra-high-precision four-channel synchronous data acquisition card to test data acquisition , professional superlinear electronic load ensure the test results are accurate. Suitable for solar PV panel manufacturers to sort and analytical test solar panels.

Main Features

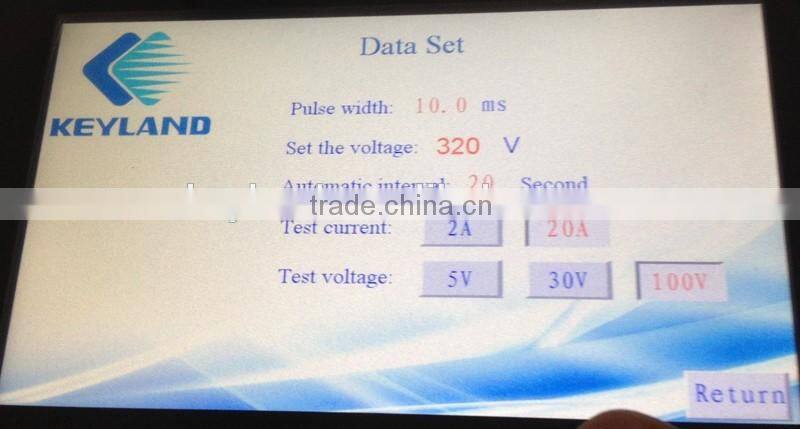

1) Flash pulse adjstable range 10-100ms continously
2) 4-line measurement,14-bit 4-channel high speed synchronous acquisition card
3) 10 parameters display,Measurement Parameter displays in Tabulation and Graphic way
4) Temperature automatically compensating
5) Voice counts off and prompts, Counting prompt of flash times
6) 24 Hours continuous work
7) 8000 data collecting points
8) long service life,working life is about 300,000 times of flash Import Xenon lamp to ensure that the correct test light spectrum,

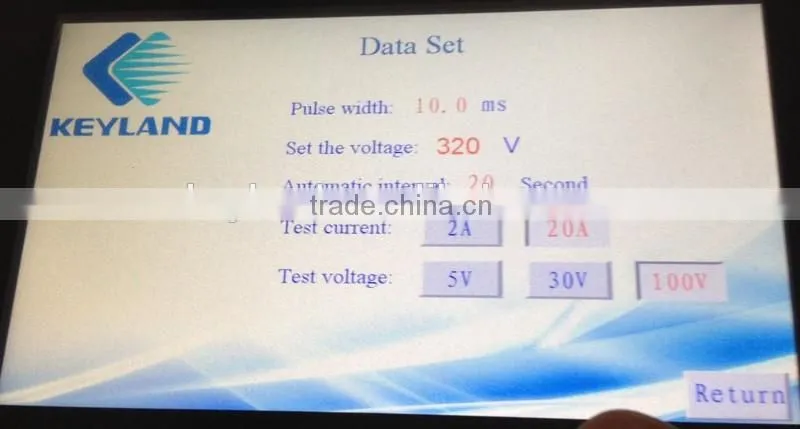

9) HMI and PLC integration touch screen control,operating more humane
10) Each test interval is less than 5 seconds, quick measurement
11) Professional developed linear scanning electron load. while ensuring accurate measurement results, but also to ensure that the measurement linearity error is less than ± 2% in the entire measurement range
12) Panel measuring device adopts synchronous motor drive, can reduce operating noise, reduce the impact from panel measuring device to solar panels, thereby reducing breakage rate.
13) Software design is simple and practical , only the correlation coefficient should be corrected when compared with the standard.
14) Crystalline silicon cells measured using a four-wire connections to ensure accurate measurements.

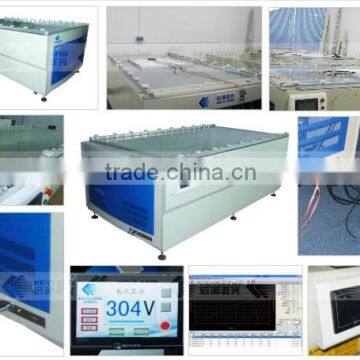

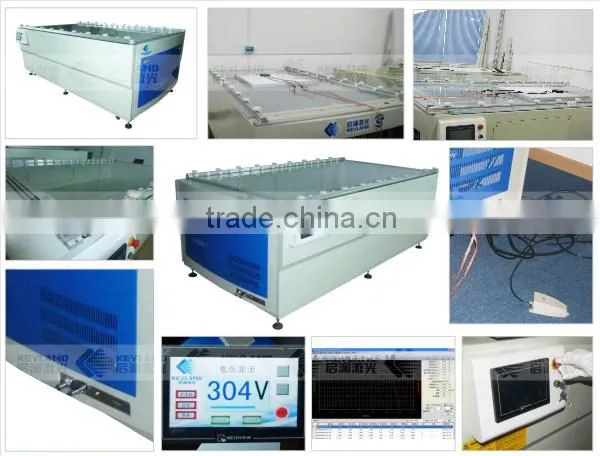

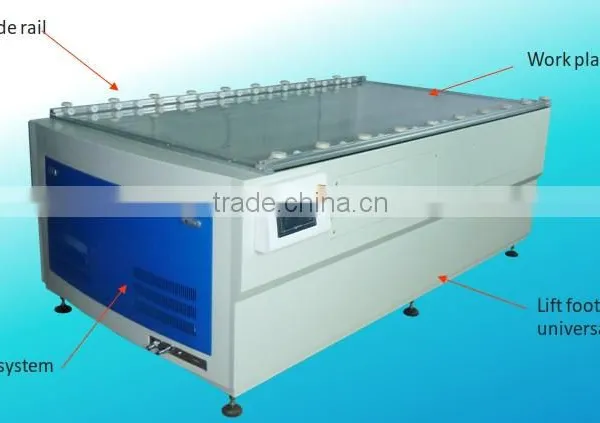

Machine Parts

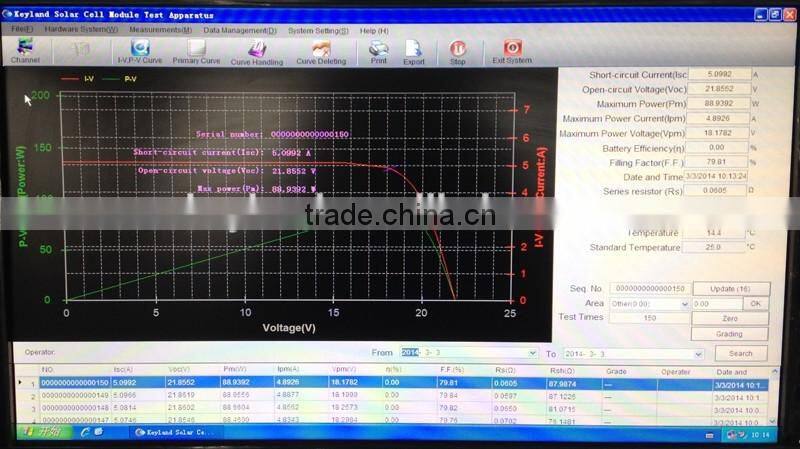

Measurable (display) parameters:

IV curve, PV curve, short-circuit current Isc, open circuit voltage Voc, the peak power Pm, the maximum power point voltage Vm, the maximum power point current Im, the fill factor FF, the cell efficiency η, the test temperature T. Can also be displayed by the mouse at any point on the curve corresponding to the current, voltage and power parameters.

Main Features

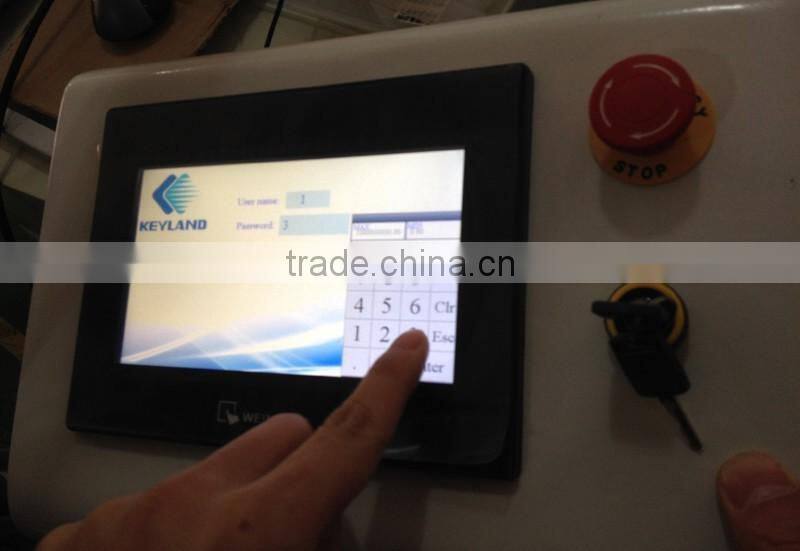

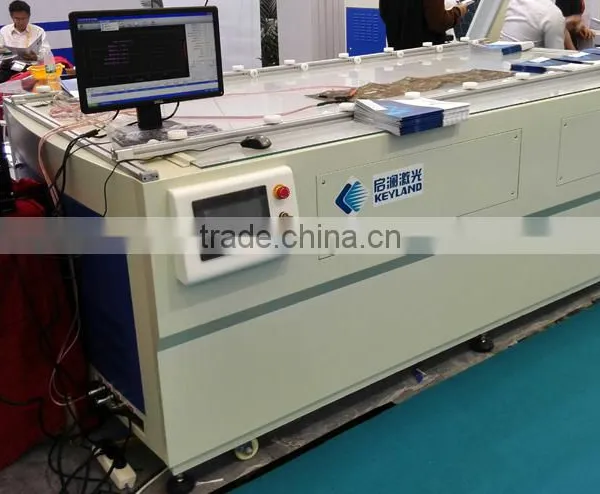

HMI and PLC integration touch screen control,operating more humane

Machine Parts

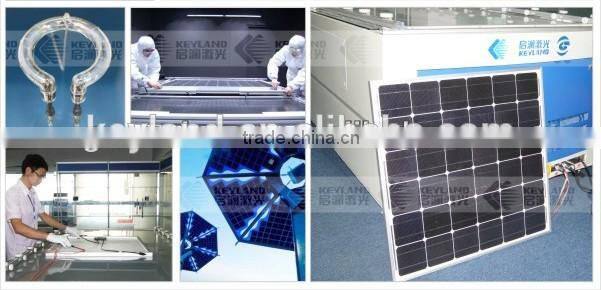

Import Xenon lamp to ensure that the correct test light spectrum, long service life,working life is about 300,000 times of flash

Main Features

Professional developed linear scanning electron load. while ensuring accurate measurement results, but also to ensure that the measurement linearity error is less than ± 2% in the entire measurement range

Panel measuring device adopts synchronous motor drive, can reduce operating noise, reduce the impact from panel measuring device to solar panels, thereby reducing breakage rate.
