Temperature PLC Control PV Module Laminator for Solar Panel Making
US$ 18,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KEYLAND
Model Number:
KL2211/KL2222
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/be appointed
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
KEYLAND 5MW Capacity PV Module Laminator, Solar Panel Making MachineUS$ 18,000 - 25,000MOQ: 1 Set -
PLC Control Oil Heating Solar Panel Laminating MachineUS$ 18,000 - 25,000MOQ: 1 Set
-
Water Cooling Solar Panel Laminator With 2.2 x 2.2 m Working AreaUS$ 18,000 - 25,000MOQ: 1 Set
-
8.75 MW Solar Laminating Machine for 300 Watt PanelUS$ 18,000 - 25,000MOQ: 1 Set
-
2200 x 2200 Oil Heating Solar Laminating Machine With VacuumUS$ 18,000 - 25,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
KEYLAND
Model Number
KL2211/KL2222
Type
Other, Solar panel manufacturing
Temperature PLC Control PV Module Laminator for Solar Panel Making
Description
Fuction: Lamination and solidification.
Application: Mainly used on monocrystalline silicon/polycrystalline silicon solar panel laminating.
Position in a production line:
Welding - laminated & solidified layer pressure - cutting edge - detection - cleaning - test -packing
Features
1. Good temp uniformity due to oil heating.
2. Area laminating with different speed lower the debris rate obviously.
3. Deft design brings reliable and stable equipment.
4. Unique control system, automatic centralized control mode, data storage, analysis ability.
5. Emergency alrm system ensure safety of operator.
6. Flat work table easy to imput/output materials.
7. Opening cover suitable for 3 sides working.
8. High quality heating work table.
9. PLC & touch screen operating.
Specification
| Technical Parameters | |||
| Power supply: | AC380V, 3Phases, 5Wires | Control mode: | Touch screen |
| Heating type: | Oil heating | Operation mode: | Manual/Auto |
| Working vacuum: | 200-20Pa | Max open height: | Over 500mm |
| Temp control: | PLC | Temp control precision: | ±1°C |
| Lamination height: | 25mm | Temp uniformity: | ±1.5°C |
| Air pressure: | 0.6-1.0 Mpa | Air flow: | 0.42—0.8m3/min |
| Air exhaust time: | 5-6min | Laminating time: | 2-10min |
| Temp Range: | 30-160°C | Working conditions: |
Temp: 10-50°C Humidity: 0-90% Altitude: 0-2000m |
| Model | Laminating area |
| KLT01 | 2200*1100mm |
| KLT02 | 2200*1750mm |
| KLT03 | 2200*2200mm |
| KLT04 | 2200*3600mm |
| KLT05 | 2200*3600*2 |

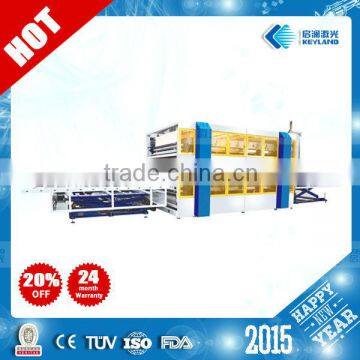

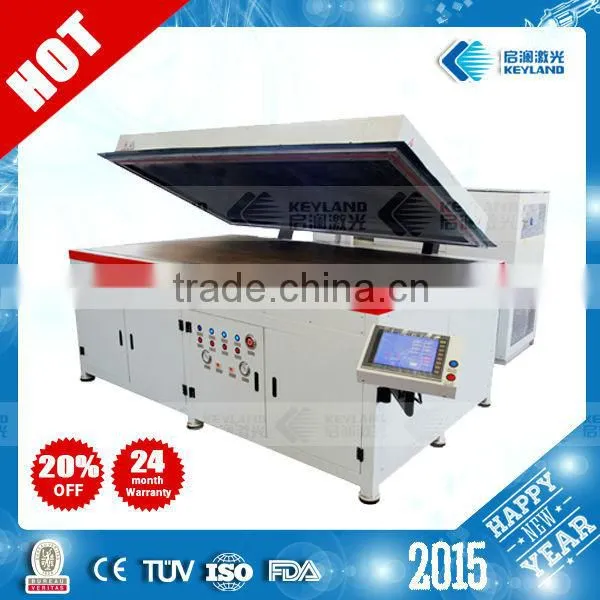

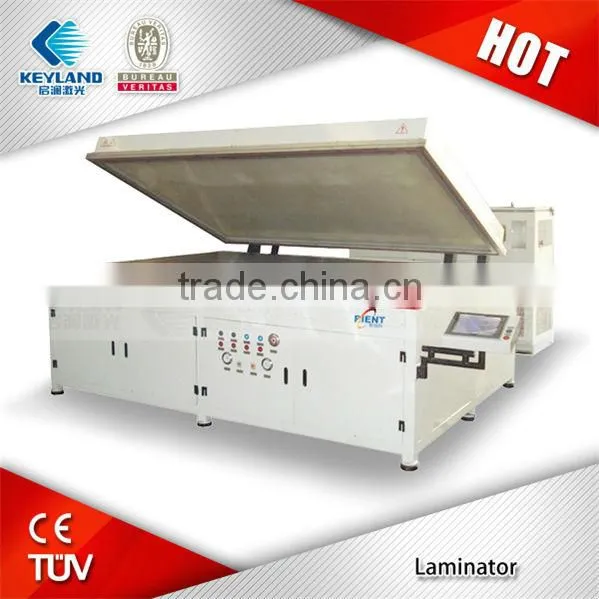

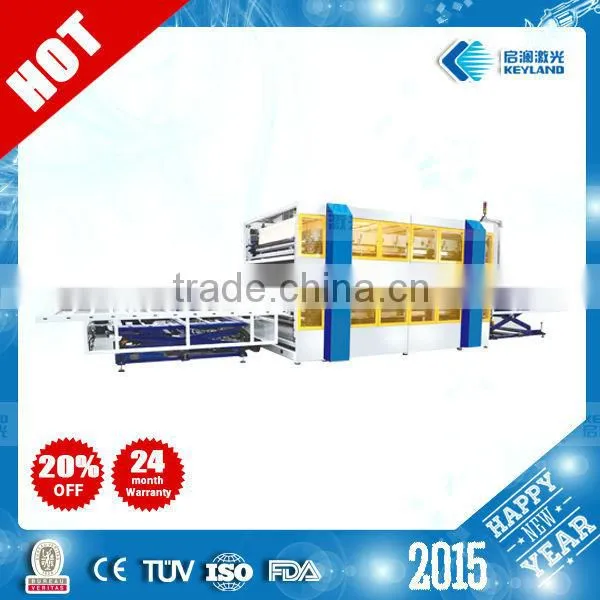

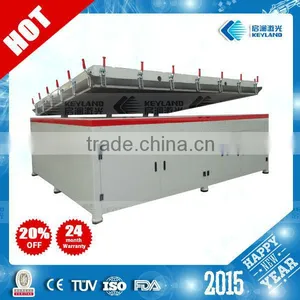

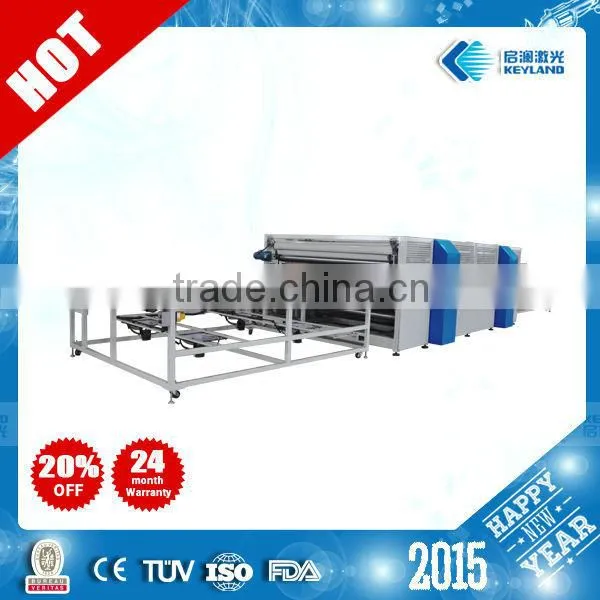

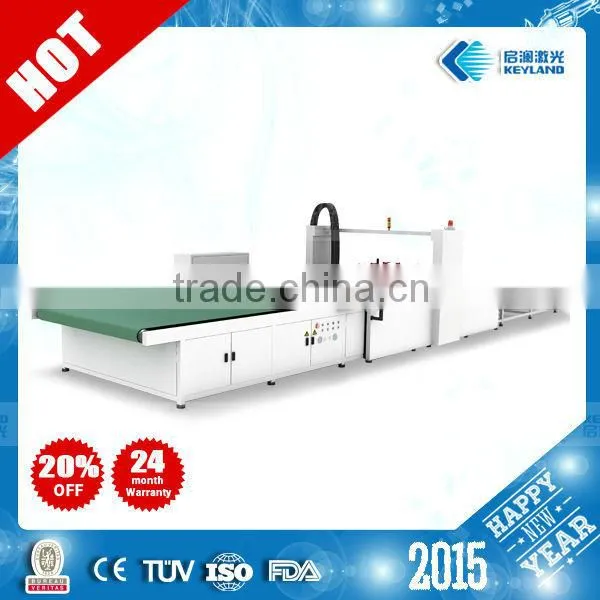

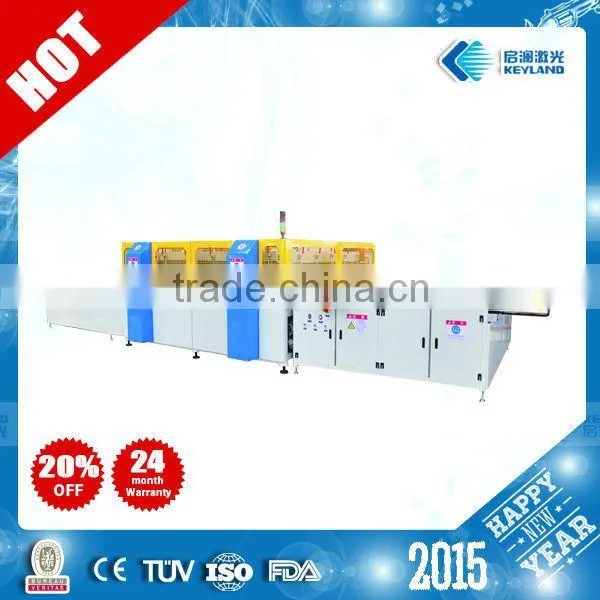

Machine Photos

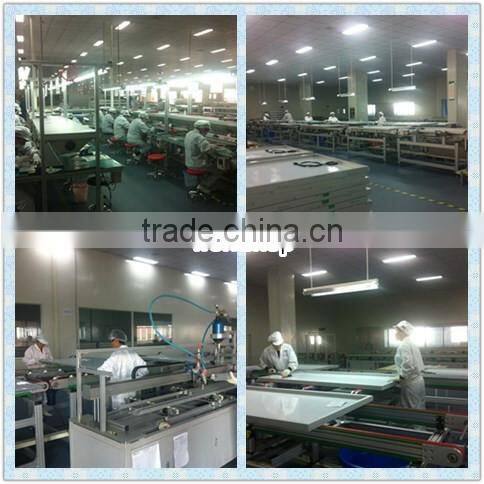

Workshop
Company View
Why Choose us?
1. Warranty 1 year. Life-time maintenance.
2. Engineers available services solar panel laminator overseas.
3. 10 years experience in solar equipments manufacturing.
4. Factory direct selling price. Lower cost for end users.
5. Onsite after-sale services including installation, training and maintenance.
