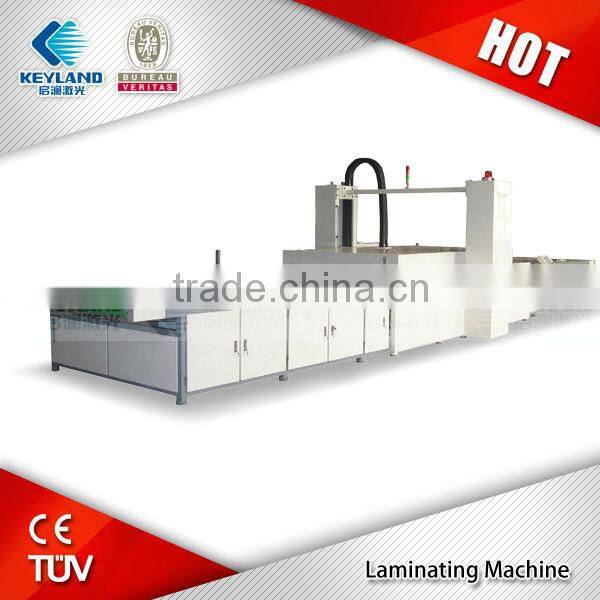

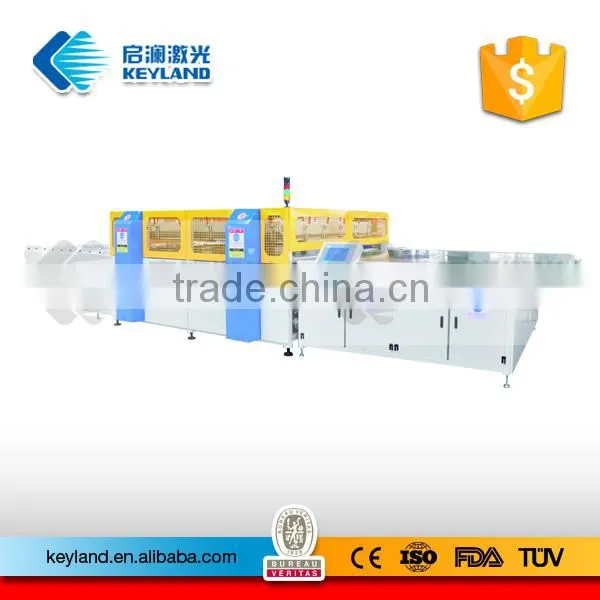

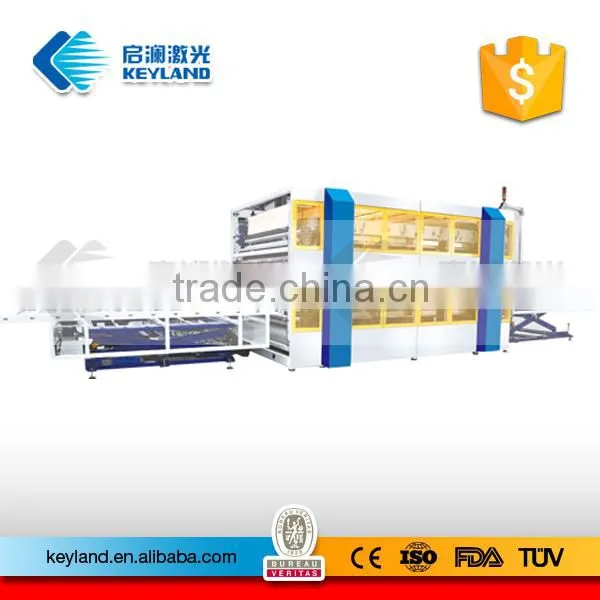

Keyland Solar panel automatic Laminator 2236 solar photovoltaic module laminating machine
2200mm*3600mm PV Module Laminator
Solar module/cell laminating area:
2200mm*1100mm (Semi-automatic type)
2200mm*2200mm(Semi-automatic typ
2200mm*3600mm( full-automatic type)
Solar Laminator to laminating glass, EVA (Ethylene Vinyl Acetate Sheet), solar cell and back sheet.
Spec. of Solar Laminator machine:
Power:AC380V 3 Phase five line | |
Mode of heating |
Oil |
Degree of vacuum |
200----20Pa |
Way of temperature control |
PLC Intelligent Temperature Control |
Laminated cavity height |
20mm |
Compressed air pressure |
0.6----1.0MPa |
Evacuation time up to operating pressure |
5----6 minutes |
Control way |
Touch screen |
Control Method |
AUTO/MAN |
Lid height |
Max 500mm |
Temperature control precision |
≤±1°C |
Temperature uniformity |
±1.5°C |
Compressed air flow |
0.42-0.8m³/min |
Laminating time |
2----4 minutes |
Solar Laminator 's Spec.
Model |
Laminating area(mm) |
Solar module power (W) |
Laminating QTY |
Production capacity per year (MW) |
|
KL-1122 |
1100*2200 |
160w |
1 set |
2.6 |
200w |
3.2 |
|||
230w |
3.8 |
|||
270w |
4.4 |
|||
|
KL-2222 |
2200*2200 |
160w |
2 sets
|
5.2 |
200w |
6.4 |
|||
230w |
7.5 |
|||
270w |
8.7 |
*The production capacity is based on 20 working hours per day in 300days (just for reference)
Character of Solar Laminator machine:
1. Mode of heating:High temperature thermal oil heating,Intelligent PID Control,Good temperature uniformity.
2. Lamination pressure: Adjustable pressure,range0.02----0.1MPa
3. Device structure
- Feed in/ out mode: Platform board for easy access to materials
- Way openings:Hydraulic chain lift arms,high balance,Secure and Reliable.
- Heating plate design:High manganese steel,flatness indeformable,oil by-hole loop structure,fast heat conduction,high heat efficiency.
- Character: Upper flange structural design
- PLC Intelligent Temperature Control
- Intelligent control
- High vacuum indicator

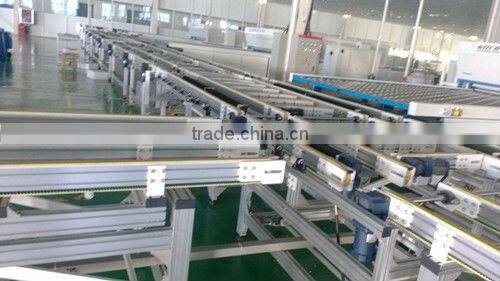

Ready material carrier
Module transfer carrier
Laying upstation
Inspection station
Trimming table
Cleaning table
Our wararnty:
