Air Cooling Camera Solar Panel EL Defecting Testing Machine
US$ 12,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KEYLAND
Model Number:
KEL
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/be appointed
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Industry Camera Solar EL Defecting Testing Machine for Micro CracksUS$ 12,000 - 20,000MOQ: 1 Set -
Electro-Luminesence Solar Module EL Testing Machine For Testing Defect Solar PanelUS$ 9,800 - 25,000MOQ: 1 Set
-
Solar Panel Production Line Semi- Automatic PV Panel EL Tester Machine With PLC Control SystemUS$ 9,800 - 25,000MOQ: 1 Set
-
High Resolution NIR Camera Solar El TesterUS$ 12,000 - 20,000MOQ: 1 Set
-
Solar Panel Production Line Needed Solar Panel EL Testing Machine For Automatic SystemUS$ 9,800 - 25,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
KEYLAND
Model Number
KEL
Power
Electronic
Usage
Auto Testing Machine
Air Cooling Camera Solar Panel EL Defecting Testing Machine
Application
With a NIR industry air cooling camera, Solar EL Defecting Testing Machine uses electroluminescence (EL) measurements to identify microcracks and other invisible defects in modules.
| Defects | Welding spots | Microcrack | Mixed current grade | Cell processing defects | Row materials pollution | Low current EL testing(0.8A-8A) | Pseudo Soldering |
| Yes/No | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Features and Benefits
- Reveals invisible defects such as microcracks, finger defects and low-current output areas in
modules
- Improves line yield by identifying defective modules prior to lamination
- Improves quality and reliability of final product
- Exceptional optical resolution in its class
- Flexible system configuration allows testing of framed or unframed modules, before or after
lamination
Software Functions
English interface
Specifications
| Operation table height | 950mm |
| Capture Mode | Single camera/ Dual camera optional |
| Caramer type | High Performance Cooled CCD Camera with Air cooling system |
| Module laying platform | Ultra toughened glass |
| Max testing area | 1200*2100mm / 48"x84" |
| Resolution | 8.3 Megapixels / 16 Megapixels |
| Sensitivity | can detect crack width less than 0.2μm |
| Exposure time | 0 ~ 9s continuously adjustable |
| Image acquisition time | 1-60s adjustable |
| Power supply | 220V 10A |
| Configuration | 1set machine frame |
| 1set SONY infrared camera | |
| 1set Industrial-grade near-infrared optical module | |
| 1set Computer | |
| 1set User manual | |
| Software functions | Barcode scanning input File name auto saved acc. to barcode Auto save defects classification easy to check |
Photos
- Inline
- Offline

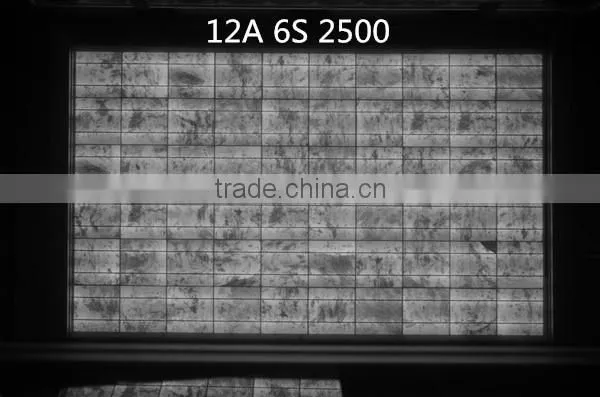

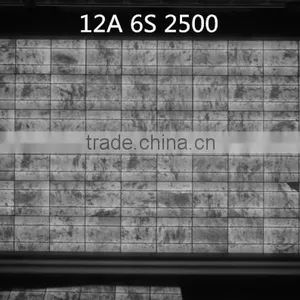

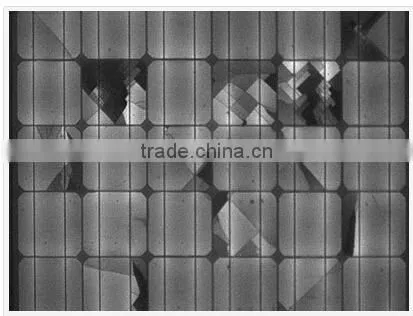

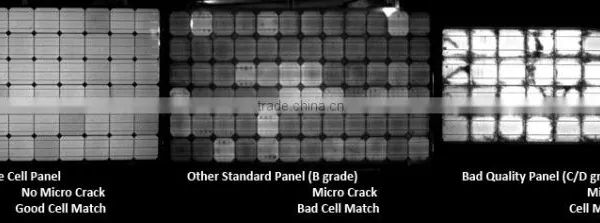

Work sample
DEMO VIDEOS
(copy the link to new tab to watch)
| EL tester demo video | http://youtu.be/TpCiaetuupY |
| EL operating demo | http://youtu.be/Dlddi2KaEJQ |
| Full automatic line | http://youtu.be/FyLiqsK0zCI |
