Solar Panel Production Line Semi- Automatic PV Panel EL Tester Machine With PLC Control System
- 3000 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
- High Resolution NIR Camera Solar El Tester
- Solar Panel Production Line Needed Solar Panel EL Testing Machine For Automatic System
- Biggest Solar Equipment For Solar Module EL Testing Machine Online and Offline
- KEYLAND Solar Panel Crack Testing Machine / EL Testing / With Sony Camera
- Semi Automatic EL Solar Panel Testing Machine For Testing Solar Panel Broken
- Photovoltaic Testing Equipment SIEMENS PLC Electroluminescence EL Solar Cell Invisible Defect Detector
Product Description

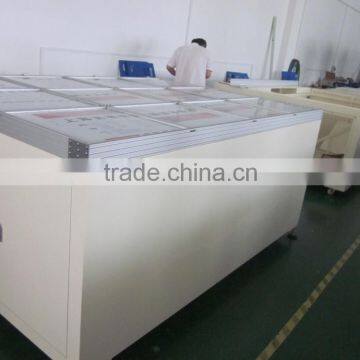

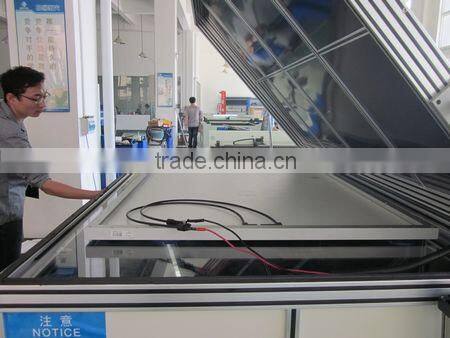

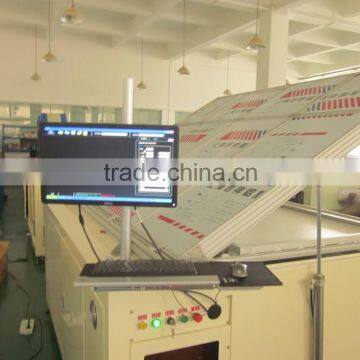

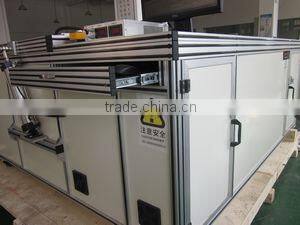

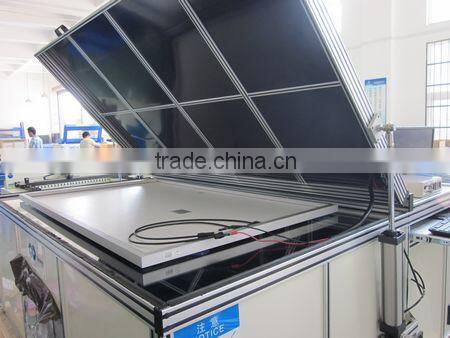

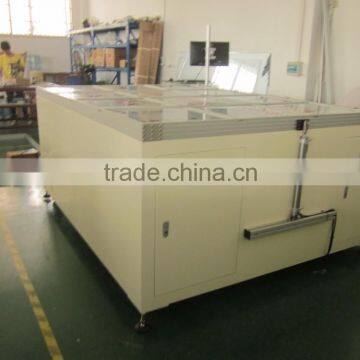

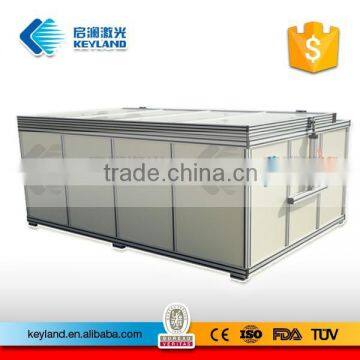

Solar Panel Production Line Semi- Automatic PV Panel EL Tester Machine
With PLC Control System
Over 10 Years Solar Experience / SENC Solar Exhibition / Service Over 35 Country Customer
Broken Solar panel Testing Machine Application:
Testing and inspect the micro-cracks,breakage,broken fingers of the cells and pseudo-soldering of the modules;Also applicable to check or find the unmatch of the cells or solar panel in different power by using EL tester machine.
Broken Solar Panel testing Machine Features
1, Key parts we adopt original assembly form Japan,
2,The camera lens adopt form Japan,can adjustable the site of focus,enhance the picture charity.
3,Closed type of design for optical path to ensure the long-standing stable operation and suitable for the environment.
4,Design of Software more hommization, easy operation with comperhensive functions
Technical Data of Broken Solar Panel Testing Machine
Model | EL-K-1600 | EL-K(D-1600) | EL-K-2100 |
EL-K(D)-2100
|
Camera Chip | Sony | |||
Camera Brands | Nikon | |||
Shooting mode | Single Camera | Dual Camera | Single Camera | Dual Camera |
Max.Resolution | 4928H*3264V | 4928H*3264V*2 | 5616H*3744V | 5616H*3744*2 |
Exposure Time |
0~60s Adjustable
| |||
Current / Voltage | 10A/60V | |||
Software | 1.Automatic barcode scanning and file naming with barcode scannd 2.User-defined defect type,Automatically creating defect folders,image files and data-querying 3.Extendable MES interface,automatic image data uploading 4.Image solution adjustable to satisfy different user's demend | |||
Detection Ability | Crack,Black Spot,Mixed Wafters,Process Defect,Cold Solder Joint |
Automatic Main Point:
1> High Strength structural steel frame to ensure Moving stable.
2> Equip with long - short side of product to provide Suitable platfrom

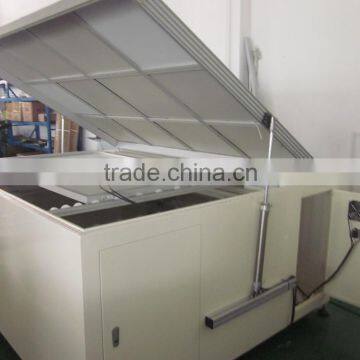

3> Automatic-door design can make sure the checking process no light damge.
4> Automatic locate machine can moving the product to the assigned place
5> Automatic high definition CCD to identify produce good or bad.
6> Belt translation can make sure CCD vedio area no barrier.
7> Equip with software to design automatic product in and out.
EL-Tester System Configuration
Image-retrieving module
| High resolution and sensitivity near-infrared camera; High SNR cool sensor; Exposure time ranges from 1s to 60s to satisfy user's varied demand; Lens with high transmittance and large field of view; |
Power module | Highly stable current/voltage source with short-circuit protection; nnovative design of probe, enable the solar module to be powered on easier. |
Software suite | Main interface panel System configuration panel; Hardware debug panel; User management panel. |
PC | Normal use model |

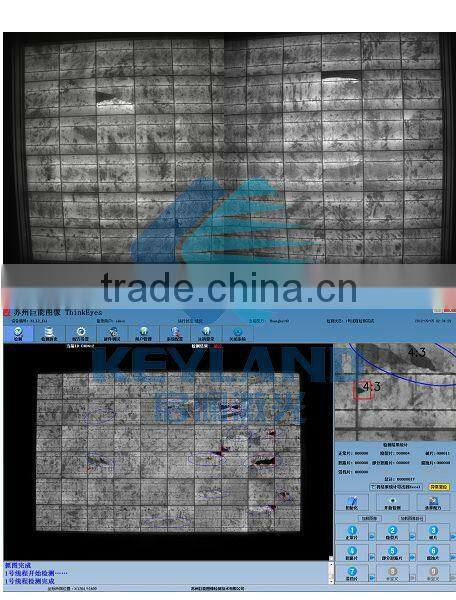

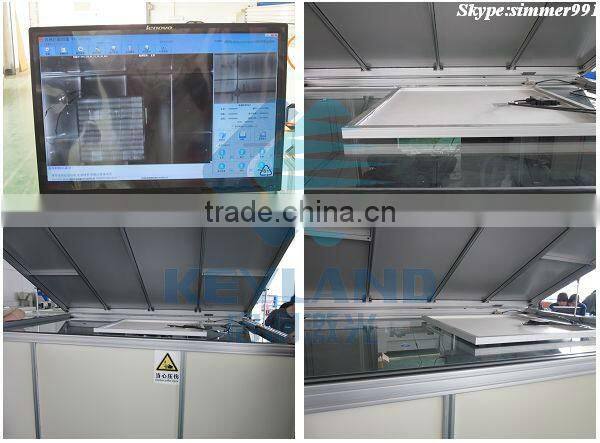

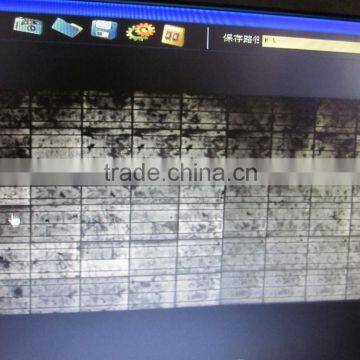

The capture picture take from the EL-Tester
If you are interesting in or have plac to purchase, pls contact me freely.
skype;simmer991
Phone:+86-159-2648-1511 & Whatsapp: +86 159 2648 1511
Office:+86-27-8797-0568

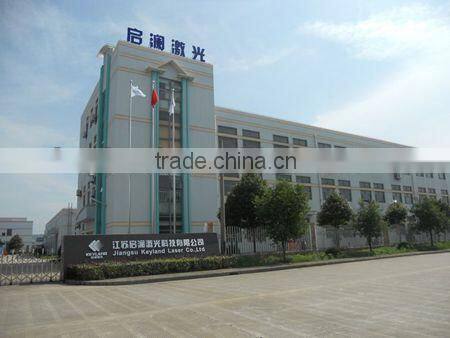

Company Profile
Jiangsu Keyland Laser technology Co., Ltd. (Keyland laser) is a high-tech enterprise with 20 years' experience in the R&D, production and sales of laser equipment. Our company has annual production capacity of 6,000 sets of equipment. The company locates in China Optical Valley, with import and export rights. We are committed to providing the customers with comprehensive and integrated laser processing and application solutions of solar energy equipment.
The main products of Keyland Laser are solar photovoltaic equipment, laser scribing-cell machine, laser scribing-film machine, laser marking machine, laser cutting machine, laser engraving machine, laser engraving and cutting machine, laser cutting flat bed and other 10 series. 100 section models are widely used in solar energy, electronics, clothing, leather, advertising, arts and crafts, automotive, motorcycle, hardware, measuring tools, cutting tools, plumbing ware, medical equipment, eyeglasses, glass craft, food, pharmaceutical, printing and packaging, furniture, decoration and etc., about 1,000 kinds of industries and fields.
Keyland Laser wins the praise of domestic and overseas customers in each industry by right of the high-quality products and professional services. We have got a leading position in the domestic sales, even over more than 40 countries and regions. Our products have been sold to the United States, Germany, France, Poland, Italy, Russia, Japan, Korea, India, Iran, Singapore, Malaysia, Brazil, Sweden, Saudi Arabia, Australia, Syria and other countries and regions.
Keyland Laser takes the lead in laser equipment manufacturing technology. We have over 10 years of experience in laser design & services, from software development to hardware design. System testing equipment and technical service are all completed by the professional technology personnel.
Keyland Laser has set many bases of research in Beijing, Shanghai, Guangzhou and Wuhan, and also has cooperated with the domestic & foreign research institutions and colleges closely. We have 65 national patent applications and core technology achievement in this field, with international leading level.
Keyland Laser is the laser expert of industrial application and your reliable business partner.no matter what industry you are engaged in, our products are always suitable for you.
