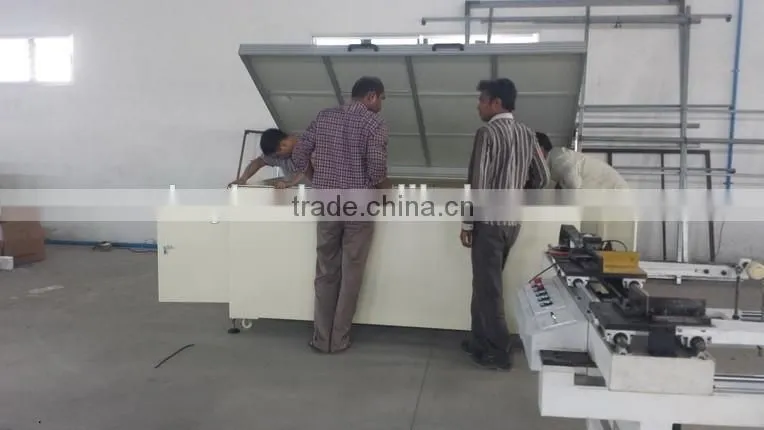

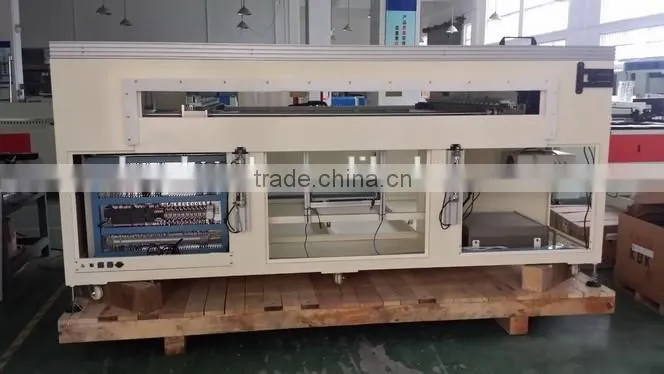

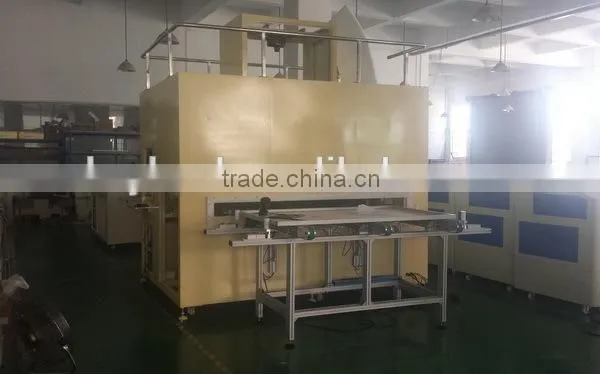

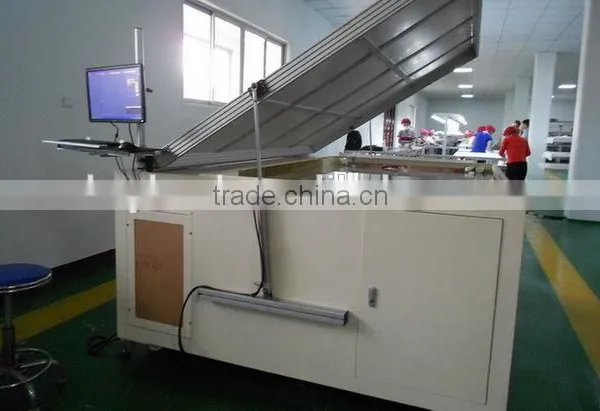

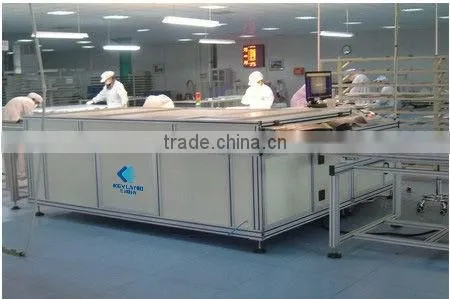

Keyland Solar Panel EL Electroluminescent Detector For Solar Panel Making Machines Line
- 50 Set / Sets per Month
- Shenzhen/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Keyland Manual Solar Panel EL Defect Tester Machine
- Keyland PV Module EL Automatic Detector Solar Cell
- Keyland Solar Panel Defect Detector for Electroluminescent Auto Testing
- Keyland Solar Electroluminescence EL Testers
- Keyland Solar EL Defecting Machine
- Keyland Inspection Electroluminescence CCD Camera Solar EL Tester
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Keyland EL Detector | Model Number: | GTE-A |
Type: | Other, Solar making equipment |

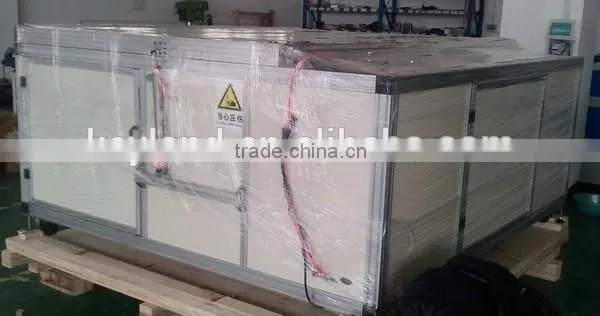

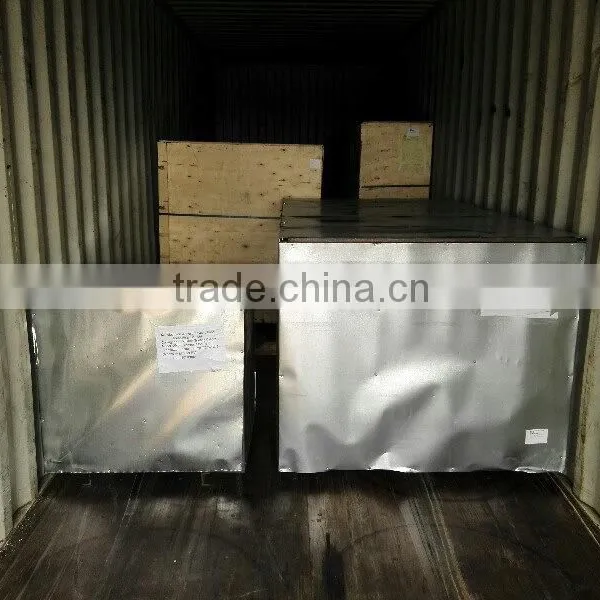

Packaging Details
Plywood packages: 2.64X 1.50X 1.21m 524KG
Product Description

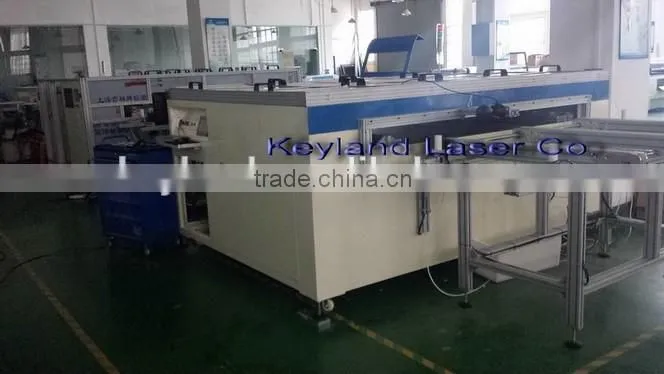

CHina PV EL Panel Detector Tester For PV Solar Module Assembly Line
Application
Mainly used in electrical performance auto test and result record of solar Mono-Si, Poly-Si or a-Si cell module.
Technology characters
The equipment has applied for national patent;
Imported original infrared camera to ensure image acquisition clear and accurate;
Close type optical route design, to guarantee the steady running of equipment, better adapt to different environments;
total English screen interface, can automatically or manually scan graphical coding, and proceed to save files;
Enlarged scanning pictures can show the detail and make it easy to decide.
Main technical parameters
Detection of objects: crystalline silicon solar modules;
Applicable size: 2000mm * 1200mm;
Defects can be detected defect types: debris, cracked, dark spots, the sintering defects, printing defects, failure piece, Weld, etc.;
Modes of operation: automatic control mode;

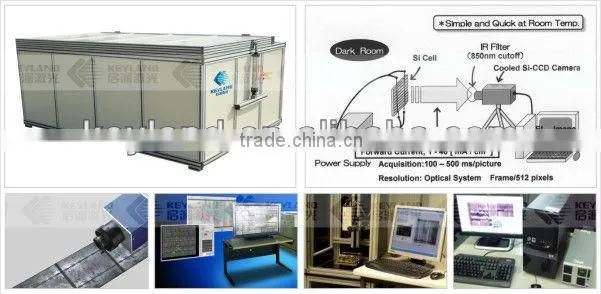

Shooting Modes: Dual camera, under the lighting type (component face down);
Camera resolution: single-camera resolution of 3326 * 2504;
Exposure time: 0 ~ 9s continuously adjustable;
Single-component detection time: 45s;
Software system: EL images automatically capture, barcode scanning input, the image is automatically saved, artificial
classification of defects, testing data historical queries or remote query function;
EL power supply: DC power supply, current adjustable from 1-10A, the maximum voltage of 80V adjustable voltage fluctuations 2.5mV rms.
Options and customizations
Manual and automatical sliding tracks match the production line; special request on customization of survey on various solar cells.
Our Exhibitions
After-sale Service:
Provide training, Installation, Commissioning
Supply both overseas and local training to the engineers and technicians on operation and maintenance. buyer borne air tickets, lodging, food and training material .
Minimum 12 (twelve) months warranty of all products and services and guarantee for the spares and required maintenance or replacement support are to be provided .
Buyer borne the cost of the material for parts of maintenance
Company Profile
Jiangsu Keyland Laser technology Co., Ltd. (Keyland laser) is a high-tech enterprise with 20 years' experience in the R&D, production and sales of laser equipment. Our company has annual production capacity of 6,000 sets of equipment. The company locates in China Optical Valley, with import and export rights. We are committed to providing the customers with comprehensive and integrated laser processing and application solutions of solar energy equipment.

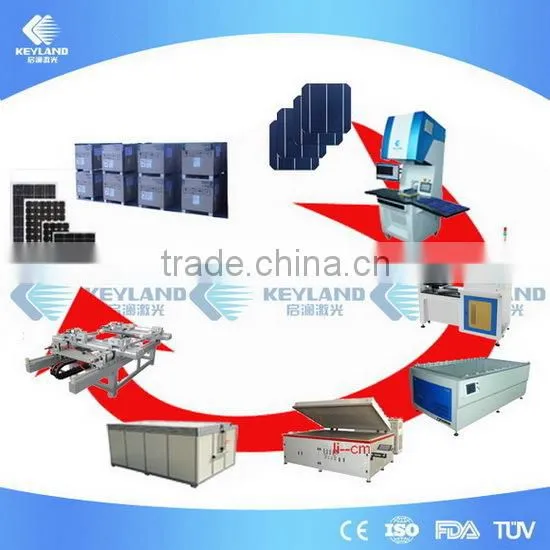

The main products of Keyland Laser are solar photovoltaic equipment, laser scribing-cell machine, laser scribing-film machine, laser marking machine, laser cutting machine, laser engraving machine, laser engraving and cutting machine, laser cutting flat bed and other 10 series. 100 section models are widely used in solar energy, electronics, clothing, leather, advertising, arts and crafts, automotive, motorcycle, hardware, measuring tools, cutting tools, plumbing ware, medical equipment, eyeglasses, glass craft, food, pharmaceutical, printing and packaging, furniture, decoration and etc., about 1,000 kinds of industries and fields.
Keyland Laser wins the praise of domestic and overseas customers in each industry by right of the high-quality products and professional services. We have got a leading position in the domestic sales, even over more than 40 countries and regions. Our products have been sold to the United States, Germany, France, Poland, Italy, Russia, Japan, Korea, India, Iran, Singapore, Malaysia, Brazil, Sweden, Saudi Arabia, Australia, Syria and other countries and regions.
Keyland Laser takes the lead in laser equipment manufacturing technology. We have over 10 years of experience in laser design & services, from software development to hardware design. System testing equipment and technical service are all completed by the professional technology personnel.
Keyland Laser has set many bases of research in Beijing, Shanghai, Guangzhou and Wuhan, and also has cooperated with the domestic & foreign research institutions and colleges closely. We have 65 national patent applications and core technology achievement in this field, with international leading level.
Keyland Laser is the laser expert of industrial application and your reliable business partner.no matter what industry you are engaged in, our products are always suitable for you.
