Keyland Manual Solar Panel EL Defect Tester Machine
- 3000 Set / Sets per Month
- Shanghai/Be appointed
- T/T L/C D/P D/A
- Keyland PV Module EL Automatic Detector Solar Cell
- Keyland Solar Panel Defect Detector for Electroluminescent Auto Testing
- Keyland Solar Electroluminescence EL Testers
- Keyland Solar EL Defecting Machine
- Keyland Inspection Electroluminescence CCD Camera Solar EL Tester
- Keyland Solar Cell EL Detector for Electroluminescent Solar Panel Machine
Product Details
Place of Origin: | Hubei, China | Brand Name: | Keyland/OEM | Model Number: | EL Defect Detector |
Usage: | Other, Solar Panel Defect Detector |
Packaging Details
International Transport Plywood Package
Product Description
Keyland Manual Solar Panel EL Defect Tester Machine
Who need to use Keyland Solar Panel EL Defect Tester ?
- Solar panel production line
- Seller or re-seller of solar panels
- Lab. / R&D
- University
"Electroluminescent" of solar photovoltaic module defect tester,
USE highly sensitive infrared camera with specialized optical imaging systems, and high-sensitivity camera module which can help users know the solar module and panels from defects in material or workmanship defects.
What can be test by Keyland Solar Panel EL Defect Tester ?
Defect detection types:
- Defects of Solar cell material (debris, cracked, broken gate, pollution)
- Defects from the welding process (Weld, Desoldering)
- Mix different levels Cell

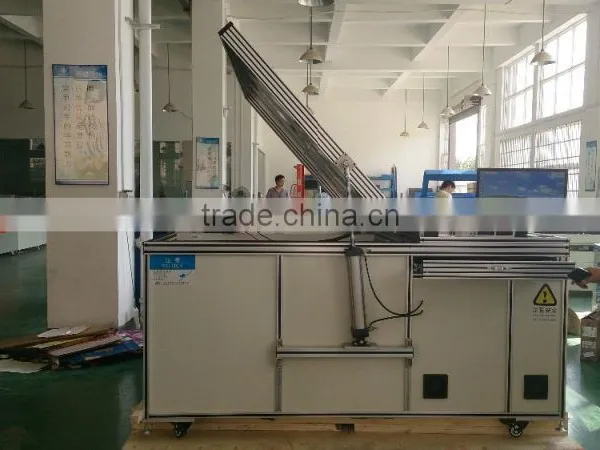

Exact Photos of Keyland Solar Panel EL Defect Tester
Electric control part: The main control system of device is relay ;
Electronic control components including: relays, contactors, solenoid valves, lights, etc
Pneumatic part:cylinder
Test Power:0~20A 0~100V
Camera:uses near-infrared 600W pixel optics camera(option)
Keyland solar El defects Tester can be applied before and after lamination process ,
Defect Tester is an important and effective process monitoring and testing equipment.
Main technical characteristics:
- 1. High-sensitivity, high-resolution near - infrared camera
- 2. High signal-to-noise ratio cooled CCD sensor
- 3. Exposure time 1s to 60s (adjustable settings) to facilitate different testing needs
- 4. High transmittance lens apparatus
- 5. Short circuit protection, high-performance and stable constant current / voltage source
- 6. Unique probe design mode allows successful power modulelocations in the greater error
Option
1. Seamless joint with the assembly line, the detection process is fully automatic
2. Automatically identify defects by software
Main Parameter:
Product name | Solar Panel EL Defect Tester | |
Resolution | 16 million pixels (option) | |
Clear imaging time | 1-30s | |
Test cycle | 35s(before laminate) | 30s(after laminate) |
Detector Manufacturer | starsense | |
Detector type | Cooling type(-50℃) | |
Image surface noise | no | |
Software | Keyland software Images automatically saved, statistics, query and print | |
Detection of defect types | Processes pollution, material defects, cracked, debris, broken gate, missing solder, low efficiency. | |
Test type | Solar module | |
Test size | Max.:2000mmx1000mm | |
Machine size | 2360x2000mmx900mm | |
Test voltage | 0~10A 0~100V | |
Working environment | +15℃~+40℃(Temperature) 20~60%(Humidity) | |
Equipment placement environment | +5℃~+40℃(Temperature) 5~ 85%(Humidity) |
Cases of Keyland Solar Equipments
Video by our Keyland Solar Panel EL Defect Tester :
http://youtu.be/or0tkRTmd4M | http://youtu.be/_wHzhUDjosM |
Keyland OverSea Service
Welcome to contact Lucia Lv for more details
We will design suitable solar line project with competitive cost to you .
Hope to buid cooperation
About Keyland
Company Profile
Jiangsu Keyland Laser technology Co., Ltd. (Keyland laser) is a high-tech enterprise with 20 years' experience in the R&D, production and sales of laser equipment. Our company has annual production capacity of 6,000 sets of equipment. The company locates in China Optical Valley, with import and export rights. We are committed to providing the customers with comprehensive and integrated laser processing and application solutions of solar energy equipment.
The main products of Keyland Laser are solar photovoltaic equipment, laser scribing-cell machine, laser scribing-film machine, laser marking machine, laser cutting machine, laser engraving machine, laser engraving and cutting machine, laser cutting flat bed and other 10 series. 100 section models are widely used in solar energy, electronics, clothing, leather, advertising, arts and crafts, automotive, motorcycle, hardware, measuring tools, cutting tools, plumbing ware, medical equipment, eyeglasses, glass craft, food, pharmaceutical, printing and packaging, furniture, decoration and etc., about 1,000 kinds of industries and fields.
Keyland Laser wins the praise of domestic and overseas customers in each industry by right of the high-quality products and professional services. We have got a leading position in the domestic sales, even over more than 40 countries and regions. Our products have been sold to the United States, Germany, France, Poland, Italy, Russia, Japan, Korea, India, Iran, Singapore, Malaysia, Brazil, Sweden, Saudi Arabia, Australia, Syria and other countries and regions.
Keyland Laser takes the lead in laser equipment manufacturing technology. We have over 10 years of experience in laser design & services, from software development to hardware design. System testing equipment and technical service are all completed by the professional technology personnel.
Keyland Laser has set many bases of research in Beijing, Shanghai, Guangzhou and Wuhan, and also has cooperated with the domestic & foreign research institutions and colleges closely. We have 65 national patent applications and core technology achievement in this field, with international leading level.
Keyland Laser is the laser expert of industrial application and your reliable business partner.no matter what industry you are engaged in, our products are always suitable for you.
